耐高温碳纤维增强环氧树脂复合材料的制备

doi:10.12066/j.issn.1007-2861.2194

摘要/Abstract

摘要：

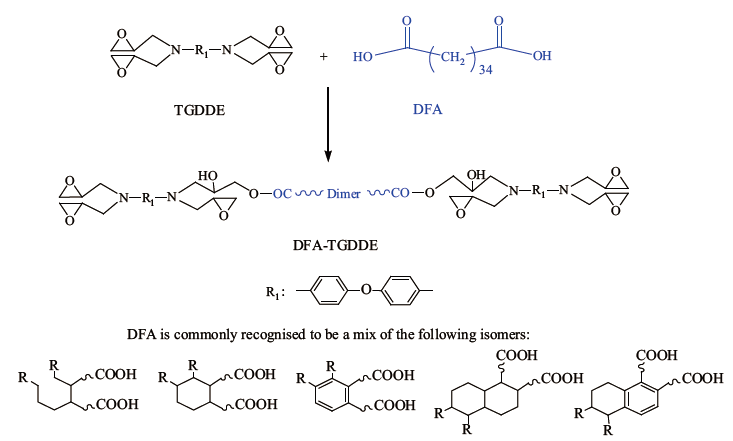

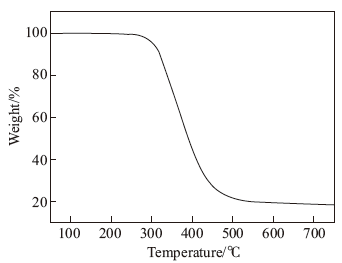

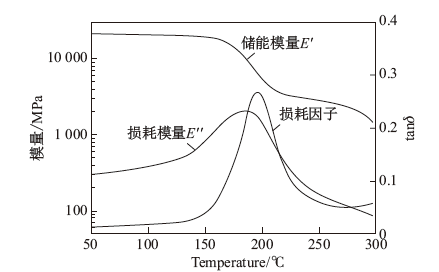

将二聚酸(dimer acid, DFA)改性缩水甘油胺类环氧树脂(4,4'-methylenebis(N,N-diglycidylaniline)/N, N, N', N'-tetraglycidyl-2, 2-bis [4-(4-aminophenoxy) phenyl] propane, TGDDE/TGBAPP), 并和其他具有不同黏度的多官能环氧树脂组成环氧树脂预浸料体系, 制得了一种适用于热熔膜法制备碳纤维增强环氧树脂预浸料的环氧树脂体系及耐高温碳纤维增强环氧树脂复合材料. 研究结果表明: 该树脂的适用期达 60 d 以上, 固化物热稳定性达300 ℃ 以上; 复合材料具有较好的耐热性能, 长期使用其耐热温度可达 160 ℃ 以上, 符合高性能碳纤维增强环氧树脂复合材料对耐热性能的要求.

关键词: 碳纤维, 环氧树脂, 复合材料, 耐高温

Abstract:

An epoxy resin prepreg system composed of glycidyl amine epoxy resins modified by dimer acid and other polyfunctional epoxy resins with different viscosities was developed. The hot-melt film method was used to obtain epoxy resin prepregs reinforced by carbon fiber and high-temperature-resistant epoxy composites reinforced by carbon fiber. The application period of the resin could last longer than 60 days. The thermal stability temperature of the solidified product was higher than 300 ℃, and its long-term use temperature was higher than 160 ℃. The composite material exhibited good heat resistance. The heat resistance temperature could reach above 160 ℃, which could meet the heat resistance requirements of high-performance epoxy composites reinforced by carbon fiber.

Key words: carbon fiber, epoxy resin, composite material, high temperature resistance

中图分类号:

TQ327.3

梁磊, 俞鸣明, 王鹏. 耐高温碳纤维增强环氧树脂复合材料的制备[J]. 上海大学学报(自然科学版), 2021, 27(5): 928-939.

LIANG Lei, YU Mingming, WANG Peng. Preparation of high temperature resistant epoxy composites reinforced by carbon fiber[J]. Journal of Shanghai University（Natural Science Edition）, 2021, 27(5): 928-939.

图/表 18

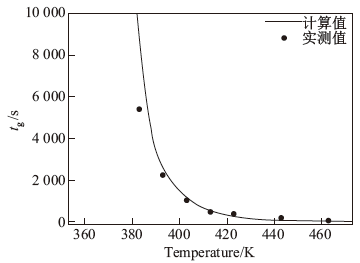

图1

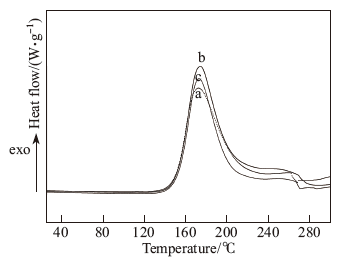

图2

表1

表2

表3

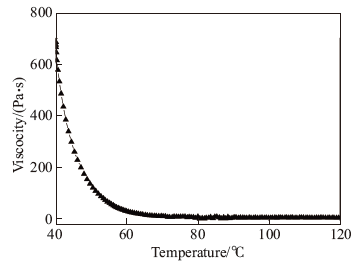

图3

表4

表5

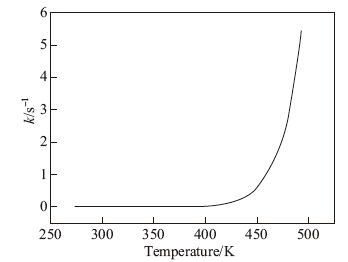

图4

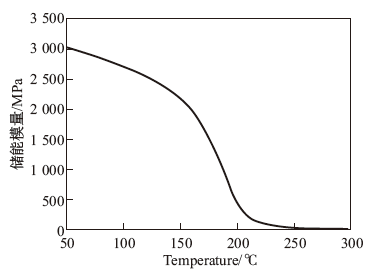

图5

图6

表6

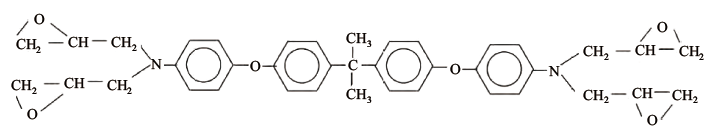

图7

表7

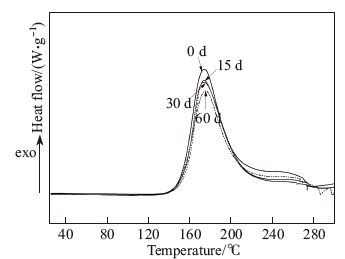

图8

表8

图9

图10

参考文献 18

[1]	丛庆, 林凤森, 李光友, 等. 高性能碳纤维/环氧树脂复合材料板的制备及其性能表征研究[J]. 化工新型材料, 2019, 47(4): 81-83.
	Cong Q, Lin F S, Li G Y. Study on preparation and characterization of carbon fiber/epoxy resin composite plate with high performance[J]. New Chemical Materials, 2019, 47(4): 81-83.
[2]	毛才文, 莫凡, 彭亚南, 等. 碳纤维增强环氧树脂复合材料层合板结构及间隙尺寸对铆接性能的影响[J]. 复合材料学报, 2018, 35(12): 3280-3287.
	Mao C W, Mo F, Peng Y N. Carbon fiber composite laminate structure and effect of clearance on riveting properties[J]. Acta Materiae Compositae Sinica, 2018, 35(12): 3280-3287.
[3]	张青, 常新龙, 张有宏, 等. 碳纤维/环氧树脂复合材料微波固化试验[J]. 宇航材料工艺, 2019, 48(6): 58-62.
	Zhang Q, Chang X L, Zhang Y H, et al. Experiment microwave curing of carbon fiber/epoxy resin composites[J]. Aerospace Materials and Technology, 2019, 48(6): 58-62.
[4]	Toldy A, Szolnoki B, Marosi G. Flame retardancy of fibre-reinforced epoxy resin composites for aerospace applications[J]. Polym Degrad Stab, 2011, 96: 371-376. doi: 10.1016/j.polymdegradstab.2010.03.021
[5]	Edwards E R, Kostov K G, Botelho E C. Evaluation of the chemical interaction between carbon nanotubes functionalized with TGDDM tetrafunctional resin and hardener DDS[J]. Compos B: Eng, 2013, 51: 197-203. doi: 10.1016/j.compositesb.2013.03.013
[6]	邢丽英, 包建文, 礼嵩明, 等. 先进树脂基复合材料发展现状和面临的挑战[J]. 复合材料学报, 2016, 33(7): 1327-1338.
	Xing L Y, Bao J W, Li S M, et al. Development status and facing challenge of advanced polymer matrix composites[J]. Acta Materiae Compositae Sinica, 2016, 33(7): 1327-1338.
[7]	Kinloch A J, Lee S H, Taylor A C. Improving the fracture toughness and the cyclic-fatigue resistance of epoxy-polymer blends[J]. Polymer, 2014, 55: 6325-6334. doi: 10.1016/j.polymer.2014.10.018
[8]	Zhang J, Niu H T, Zhou J G, et al. Synergistic effects of PEK-C/VGCNF composite nanofibres on a trifunctional epoxy resin[J]. Compos Sci Technol, 2011, 71: 1060-1067. doi: 10.1016/j.compscitech.2011.03.008
[9]	Li G, Huang Z B, Xin C L, et al. Curing kinetics and mechanisms of polysulfone nanofibrous membranes toughened epoxy/amine systems using isothermal DSC and NIR[J]. Thermochim Acta, 2010, 497: 27-34. doi: 10.1016/j.tca.2009.08.005
[10]	贾玉玺, 原波, 杨俊英, 等. 树脂传递模塑过程的数学描述和数值模拟进展[J]. 材料研究学报, 2005, 19(5): 449-456.
	Jia Y X, Yuan B, Yang J Y, et al. Progress in numerical simulation and mathematical formulations of resin transfer molding processes[J]. Chinese Journal of Materials Research, 2005, 19(5): 449-456.
[11]	Edwards E R, Kostov K G, Botelho E C. Evaluation of the chemical interaction between carbon nanotubes functionalized with TGDDM tetrafunctional resin and hardener DDS[J]. Compos B: Eng, 2013, 51: 197-203 doi: 10.1016/j.compositesb.2013.03.013
[12]	Chen W M, Tao Z Q, Fan L, et al. Effect of poly(etherimide) chemical structures on the properties of epoxy/poly (etherimide) blends and their carbon fiber- reinforced composites[J]. J Appl Polym Sci, 2011, 119: 3162-3169. doi: 10.1002/app.v119.6
[13]	樊威, 李嘉禄. 热氧老化对碳纤维织物增强聚合物基复合材料弯曲性能的影响[J]. 复合材料学报, 2015, 32(5): 1260-1270.
	Fan W, Li J L. Effects of thermo-oxidative aging on flexural properties of carbon fiber fabric reinforced polymer matrix composites[J]. Acta Materiae Compositae Sinica, 2015, 32(5): 1260-1270.
[14]	Xu J, Zhang S, Xu G, et al. Starch thermal property and gelatinization of lotus seeds during hot air drying[J]. Transactions of the Chinese Society of Agricultural Engineering, 2017, 33(17): 298-303.
[15]	Charalampos K, Everson K, Baljinder K K. The effect of nanoparticles on structural morphology, thermal and flammability properties of two epoxy resins with different functionalities[J]. Polym Degrad Stab, 2011, 96: 529-540. doi: 10.1016/j.polymdegradstab.2011.01.002
[16]	Wang Y S. Solvent resistance of epoxy resins toughened with polyethersulfone: US8686069 [P]. 2014-04-01.
[17]	Yu M M, Feng B, Yang M Q, et al. Toughness and thermal properties of a dimer acid modified tetrafunctional epoxy resin[J]. Appl Mech Mater, 2015, 764: 107-110.
[18]	张银生, 冀克俭, 尤瑜升, 等. 玻璃纤维-环氧树脂预浸料质量控制方法的研究[J]. 复合材料学报, 1996, 13(1): 25-29.
	Zhang Y S, Gi K J, You Y S, et al. Characterization of high temperature aging of glass fiber-epoxy prepreg[J]. Acta Materiae Compositae Sinica, 1996, 13(1): 25-29.
