硼含量对 FeCoNiCrAl$_{\bf 0.1}$B$_{ x}$ 高熵合金组织和力学性能的作用

doi:10.12066/j.issn.1007-2861.2161

摘要/Abstract

摘要：

研究了硼含量对 FeCoNiCrAl$_{0.1}$B$_{x}$ ($x = 0 \sim 0.1$) 高熵合金微观组织和力学性能的作用. 结果表明: 当硼含量 $x \le 0.03$ 时, FeCoNiCrAl$_{0.1}$B$_{x}$ 高熵合金由单一面心立方(face-centered cubic, FCC)结构的 $\gamma $ 相组成; 而当硼含量 $x \ge 0.05$ 时, FeCoNiCrAl$_{0.1}$B$_{x}$ 高熵合金由 $\gamma $ 相、微量的有序态 FCC 相和硼化物组成. 硼元素的加入, 细化了 FeCoNiCrAl$_{0.1}$B$_{x}$ 高熵合金的晶粒, 提高了合金的抗拉强度, 但也降低了合金的延伸率. 在真空中拉伸时, FeCoNiCrAl$_{0.1}$B$_{x}$ 高熵合金的断口形貌均为韧窝状塑性断口.

关键词: FeCoNiCrAl$_{0.1}$B$_{x}$ 高熵合金, 硼含量, 力学性能

Abstract:

The effects of boron content on the microstructure and mechanical properties of FeCoNiCrAl$_{0.1}$B$_{x }(x = 0{\sim}$0.1) high-entropy alloy were investigated in this study. The results suggested that the FeCoNiCrAl$_{0.1}$B$_{x}$ high-entropy alloy consisted of single face-centered cubic (FCC) $\gamma $ phases when $x\le 0.03$, whereas it consisted of FCC $\gamma $ phase, trace of ordered FCC phase, and boride when $x\ge 0.05$. With the addition of boron atoms in the alloy, the grain size of the alloy refined, tensile strength of the alloy increased, and elongation of the alloy decreased with an increase in the boron content. The fractographs of the FeCoNiCrAl$_{0.1}$B$_{x}$ high-entropy alloy exhibited all transgranular fracture patterns during tensile testing in vacuum.

Key words: eCoNiCrAl$_{0.1}$B$_{x}$ high-entropy alloy, boron content, mechanical properties

中图分类号:

TG135

谢亚茜, 陈业新, 马星星. 硼含量对 FeCoNiCrAl$_{\bf 0.1}$B$_{ x}$ 高熵合金组织和力学性能的作用[J]. 上海大学学报(自然科学版), 2021, 27(2): 280-288.

XIE Yaxi, CHEN Yexin, MA Xingxing. Effects of boron content on microstructure and mechanical properties of FeCoNiCrAl$_{\bf 0.1}$B$_{ x }$ high-entropy alloy[J]. Journal of Shanghai University（Natural Science Edition）, 2021, 27(2): 280-288.

图/表 8

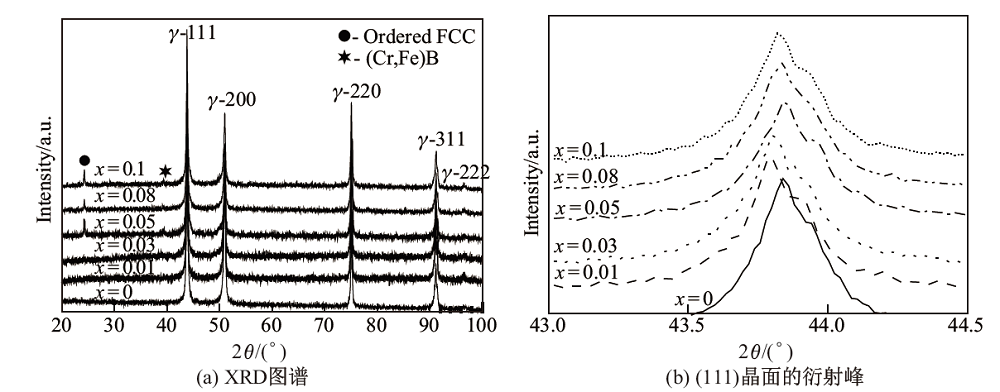

图1

图2

图3

图4

表1

图5

图6

图7

参考文献 23

[1]	Yeh J W, Chen S K, Lin S J, et al. Nanostructured high-entropy alloys with multiple principal elements: novel alloy design concepts and outcomes[J]. Advanced Engineering Materials, 2004,6:299-303.
[2]	Lu Z P, Wang H, Chen M W, et al. An assessment on the future development of high-entropy alloys: summary from a recent workshop[J]. Intermetallics, 2015,66:67-76.
[3]	Tsai K Y, Tsai M H, Yeh J M. Sluggish diffusion in CoCrFeMnNi high entropy alloys[J]. Acta Materialia, 2013,61(13):4887-4897.
[4]	Tong C J, Chen Y L, Yeh J W, et al. Microstructure characterization of Al$_{x}$CoCrCuFeNi high-entropy alloy system with multiprincipal elements[J]. Metallurgical ${\&}$ Materials Transactions A, 2005,36(4):881-893.
[5]	叶均蔚, 陈瑞凯. 高熵合金[J]. 科学发展, 2004,377(5): 16-21.
	Yeh J W, Chen R K. High entropy alloys[J]. Scientific Development, 2004,377(5):16-21.
[6]	王海燕. N 原子对 FeCoCrNiMn 高熵合金组织结构与性能的影响[D]. 福州: 福建工程学院, 2016: 1-61.
	Wang H Y. Effect of N addition on the microstructure and mechanical properties of FeCoCr-NiMn high entropy alloy[D]. Fuzhou: Fujian University of Technology, 2016: 1-61.
[7]	王智慧, 秦晓婷, 贺定勇, 等. 等离子熔覆 CoCrFeMnNiC$_{x}$ 高熵合金的组织结构[J]. 中国表面工程, 2014,27(4):64-69.
	Wang Z H, Qin X T, He D Y, et al. Microstructure of CoCrFeMnNiC$_{x}$ high-entropy alloy prepared by plasma cladding[J]. China Surface Engineering, 2014,27(4):64-69.
[8]	饶湖常, 戴品强, 陈鼎宁, 等. 碳含量对FeCoCrNiMnC$_{x}$ 高熵合金显微组织与性能的影响[J]. 机械工程材料, 2016,40(8):76-80.
	Rao H C, Dai P Q, Chen D N, et al. Effect of carbon content on microstructure and properties of FeCoCrNiMnC$_{x}$ high entropy alloy[J]. Materials for Mechanical Engineering, 2016,40(8):76-80.
[9]	蔡建宾, 吴宇建, 张冬冬, 等. Al$_{0.5}$CoCrFeNiB$_{x}$ 多主元高熵合金的组织结构和力学性能[J]. 稀有金属与硬质合金, 2011,39(4):37-40.
	Cai J B, Wu Y J, Zhang D D, et al. Microstructure and mechanical property of high-entropy alloy with multi-principal elements[J]. Rare Metals and Cemented Carbides, 2011,39(4):37-40.
[10]	Liu X T, Lei W B, Ma L J. et al. Effect of boron on the microstructure, phase assemblage and wear properties of Al$_{0.5}$CoCrCuFeNi high-entropy alloy[J]. Rare Metal Materials and Engineering, 2016,45(9):2201-2207.
[11]	伍万飞. 含硼高熵合金的组织性能研究[D]. 马鞍山: 安徽工业大学, 2016: 1-58.
	Wu W F. Research on micro-structure and properties of boron high entropy alloys[D]. Maanshan: Anhui University of Technology, 2016: 1-58.
[12]	陈业新. 金属间化合物的环境氢脆[J]. 上海大学学报(自然科学版), 2011,17(4):487-502.
	Chen Y X. Environmental hydrogen embrittlement of intermetallics[J]. Journal of Shanghai University (Natural Science Edition), 2011,17(4):487-502.
[13]	Liu C T, White C L, Horton J A. Effect of boron on grain boundaries in Ni$_{3}$A1[J]. Acta Metall, 1985,33(2):213-229.
[14]	Wan X J, Zhu J H. Hydrogen diffusivity in boron-doped polycrystalline Ni$_{3}$Al[J]. Scripta Metall Mater, 1994,31(6):677-681.
[15]	Chen Y, Ma J. Mechanism of boron suppressing environmental embrittlement in H$_{2}$ for the ordered Ni$_{3}$Fe intermetallics[J]. Procedia Engineering, 2012,27:1121-1128.
[16]	Cheng X Y, Wan X J, Liu C T, et al. Effect of Zr and B on environmental embrittlement in Ni$_{3}$AI alloys[J]. Scripta Materialia, 1998,38(6):959-964.
[17]	Wu J M, Lin S J, Yeh J W, et al. Adhesive wear behavior of Al$_{x}$CoCrCuFeNi high-entropy alloys as a function of aluminum content[J]. Wear, 2006,261(5/6):513-519.
[18]	Chen Y X, Qiang X N. Effect of service environment on mechanical properties of FeCoNiCrAl$_{0.1}$ alloy[J]. Materials Science Forum, 2018,913:674-681.
[19]	Hsu C Y, Yeh J W, Chen S K, et al. Wear resistance and high-temperature compression strength of FCC CuCoNiCrAl$_{0.5}$Fe alloy with boron addition[J]. Metallurgical and Materials Transactions A (Physical Metallurgy and Materials Science), 2004,35(5):1465-1469.
[20]	彭镇, 刘宁, 吴鹏慧, 等. 硼元素对 CoCrCu$_{0.5}$FeNi 高熵合金组织和性能的影响[J]. 金属热处理, 2017,42(6):153-156.
	Peng Z, Liu N, Wu P H, et al. Effect of boron addition on microstructure and properties of CoCrCu$_{0.5}$FeNi high entropy alloy[J]. Heat Treatment of Metals, 2017,42(6):153-156.
[21]	Shi D D, Chen Y X, Wan X J, et al. Influence of boron-doping on the H$_{2}$-induced environmental embrittlement of Ni$_{3}$Fe intermetallics[J]. Journal of Shanghai University, 2007,11(2):102-105.
[22]	徐祖耀. 金属学原理 [M]. 上海: 上海科学技术出版社, 1964.
	Xu Z Y. Principles of metallography [M]. Shanghai: Shanghai Science and Technology Press, 1964.
[23]	Chen J, Yao Z, Wang X, et al. Effect of C content on microstructure and tensile properties of as-cast CoCrFeMnNi high entropy alloy[J]. Materials Chemistry and Physics, 2017,210(5):136-145.
