金属有机骨架衍生纳米多孔碳和钛酸锂构筑高性能锂离子混合电容器

doi:10.12066/j.issn.1007-2861.2143

Abstract

Abstract:

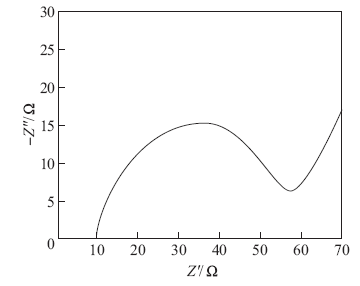

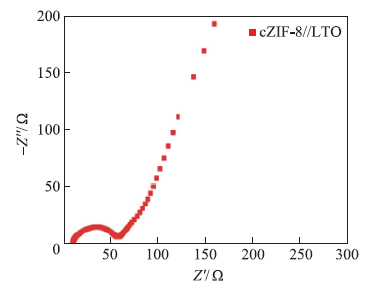

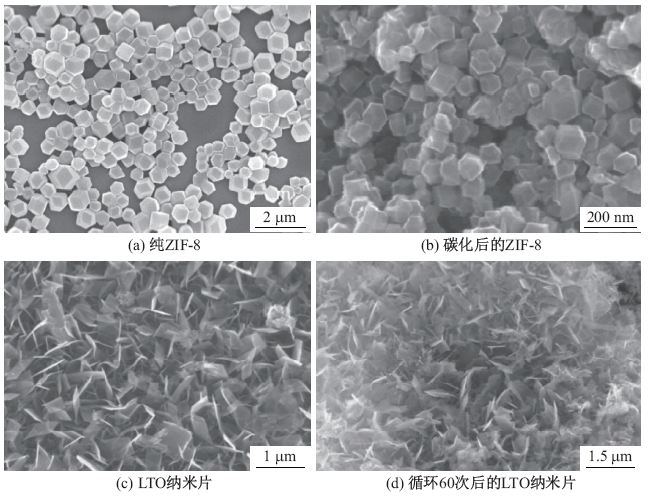

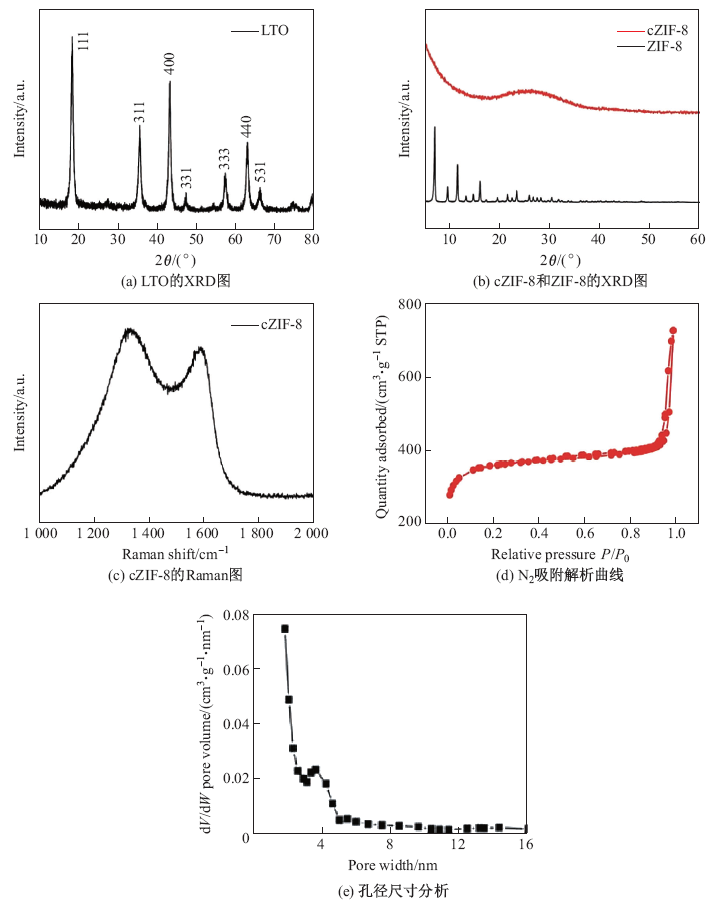

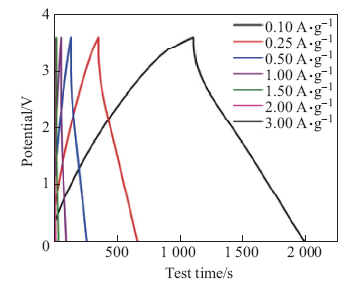

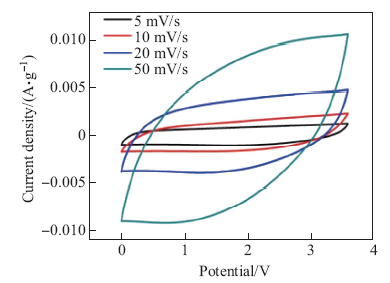

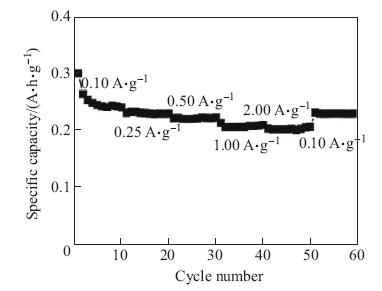

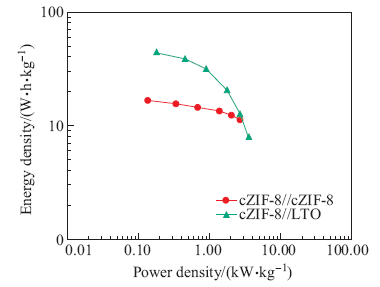

Li-ion hybrid capacitors, which combine the high energy densities of Li-ion batteries and high power densities of super capacitors, are a new type of energy storage device with large application potentials. In this study, a porous carbon nanomaterial (carbonized zeolitic imidazolate framework-8 (cZIF-8)) derived from metal organic frameworks (MOFs) was synthesised by pyrolysis of a MOF precursor at a high temperature. This carbon material had a large specific surface area, excellent porosity, good thermal stability, and high conductivity. A new type of Li-ion hybrid capacitor (cZIF-8//lithium titanate (LTO)) was constructed using a capacitor electrode based on cZIF-8 as a positive electrode and battery electrode based on LTO as a negative electrode. The assembled device had highest energy density of 44 W·h·kg^-1 and power density of 5387 W$\cdot$kg$^{-1}$, significantly higher than that of a cZIF-8//cZIF-8 supercapacitor (16.6 W·h·kg^-1). The Li-ion hybrid capacitor (cZIF-8//LTO) also exhibited a good cyclic performance (85.4% of the initial value after 10000 cycles) at a high current density of 2 A·g^-1. This MOF-based Li-ion hybrid capacitor enables to effectively increase the energy density of the electrochemical energy storage device without reducing the power capability.

Key words: porous carbon nanomaterial, metal organic framework (MOF)-derived material, lithium titanate (LTO), Li-ion hybrid capacitor

CLC Number:

TQ316.3

YAO Weiwei, MAO Jian, ZHANG Chen, LI Zhen, WU Minghong. High-performance Li-ion hybrid capacitor with metal organic framework-derived porous carbon nanomaterial and lithium titanate[J]. Journal of Shanghai University（Natural Science Edition）, 2020, 26(6): 963-971.

Figures/Tables 10

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

References 15

[1]	Getman R B, Bae Y S, Wilmer C E, et al. Review and analysis of molecular simulations of methane, hydrogen, and acetylene storage in metal-organic frameworks[J]. Chemical Reviews, 2012,112(2):703-723. doi: 10.1021/cr200217c pmid: 22188435
[2]	Dong M J, Zhao M, Ou S, et al. A luminescent Dye@MOF platform: emission fingerprint relationships of volatile organic molecules[J]. Angewandte Chemie: International Edition, 2014,53(6):1575-1579. doi: 10.1002/anie.201307331
[3]	Jiang H L, Feng D, Liu T F, et al. Pore surface engineering with controlled loadings of functional groups via click chemistry in highly stable metal-organic frameworks[J]. Journal of the American Chemical Society, 2012,134(36):14690-14693. pmid: 22906023
[4]	Gao X T, Liu Y T, Zhu X D, et al. V$_2$O$_5$ nanoparticles confined in three-dimensionally organized, porous nitrogen-doped graphene frameworks: flexible and free-standing cathodes for high performance lithium storage[J]. Carbon, 2018,140:218-226. doi: 10.1016/j.carbon.2018.08.060
[5]	Kim Y, Han H, Noh Y, et al. Honeycomb-like nitrogen-doped carbon 3D nanoweb@Li2S cathode material for use in lithium sulfur batteries[J]. Chemsuschem, 2019,12(4):824-829. pmid: 30569512
[6]	Gao M, Liu X W, Yang H, et al. FeP nanoparticles derived from metal-organic frameworks/GO as high-performance anode material for lithium ion batteries[J]. Science China: Chemistry, 2018,61(9):1151-1158. doi: 10.1007/s11426-018-9278-5
[7]	Chaikittisilp W, Hu M, Wang H, et al. Nanoporous carbons through direct carbonization of a zeolitic imidazolate framework for supercapacitor electrodes[J]. Chemical Communications, 2012,48(58):7259-7261. doi: 10.1039/c2cc33433j
[8]	Young C, Salunkhe R R, Tang J, et al. Zeolitic imidazolate framework (ZIF-8) derived nanoporous carbon: the effect of carbonization temperature on the supercapacitor performance in an aqueous electrolyte[J]. Physical Chemistry Chemical Physics, 2017,19(33):22596. doi: 10.1039/c7cp90179h pmid: 28796268
[9]	Liu B, Shioyama H, Akita T, et al. Metal-organic framework as a template for porous carbon synjournal[J]. Journal of the American Chemical Society, 2008,130(16):5390-5395. doi: 10.1021/ja7106146 pmid: 18376833
[10]	Wu H B, Xia B Y, Yu L, et al. Porous molybdenum carbide nano-octahedrons synthesized via confined carburization in metal-organic frameworks for efficient hydrogen production[J]. Nature Communications, 2015,6:6512. doi: 10.1038/ncomms7512 pmid: 25758159
[11]	Kim H, Park K Y, Cho M Y, et al. High-performance hybrid supercapacitor based on graphene-wrapped Li$_4$Ti$_5$O$_{12}$ and activated carbon[J]. Chemelectrochem, 2014,1(1):125-130. doi: 10.1002/celc.201300186
[12]	Kaftelen H, Tuncer M, Tu S, et al. Mn-substituted spinel Li$_4$Ti$_5$O$_{12}$ materials studied by multifrequency EPR spectroscopy[J]. Journal of Materials Chemistry A, 2013,1(34):9973-9982. doi: 10.1039/c3ta11590a
[13]	Yu J, Mu C, Yan B Y, et al. Nanoparticle/MOF composites: preparations and appli-cations[J]. Materials Horizons, 2017,4(4):557-569. doi: 10.1039/C6MH00586A
[14]	Zou F, Chen Y M, Liu K W, et al. Metal organic frameworks derived hierarchical hollow NiO/Ni/graphene composites for lithium and sodium storage[J]. Acs Nano, 2016,10(1):377-386. pmid: 26592379
[15]	Jain A, Aravindan V, Jayaraman S, et al. Activated carbons derived from coconut shells as high energy density cathode material for Li-ion capacitors[J]. Scientific Reports, 2013,3:6.
