氮掺杂多孔 MOF 衍生碳电极的构筑及其电化学性能

doi:10.12066/j.issn.1007-2861.2020

Abstract

Abstract:

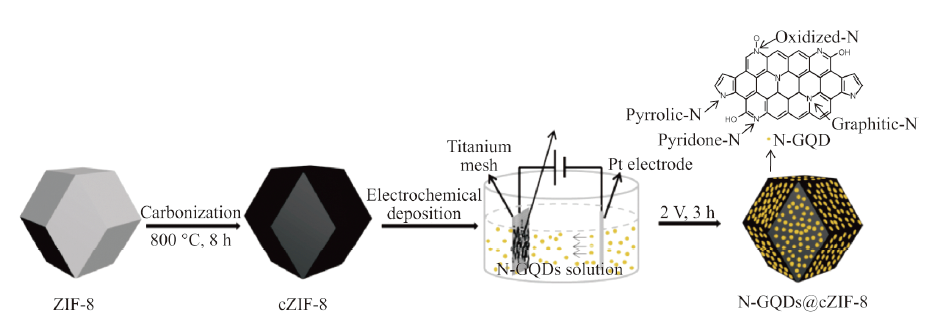

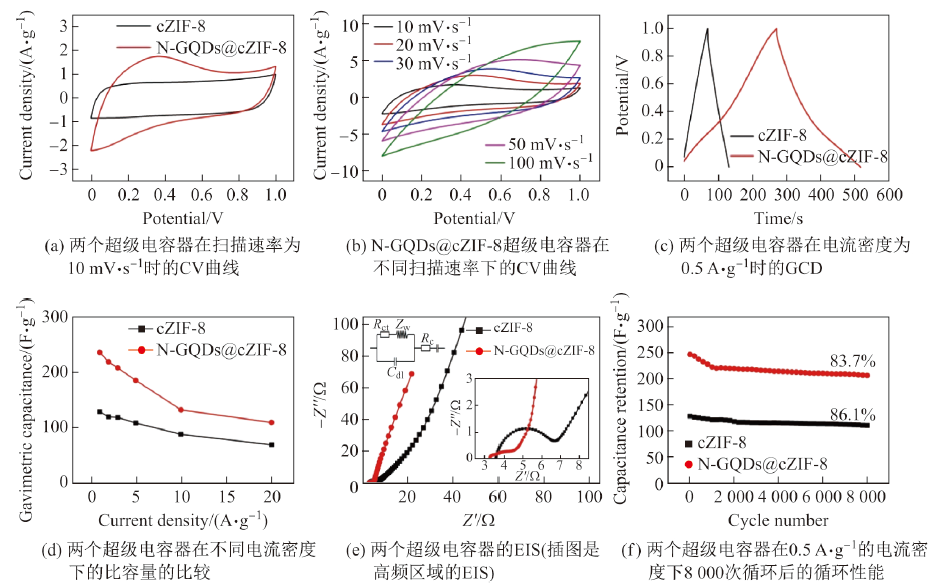

The N-GQDs@cZIF-8 supercapacitor has been fabricated following a two-step process through combining N-doped graphene quantum dots (N-GQDs) with metal-organic framework-derived carbon material (cZIF-8). The N-GQDs@cZIF-8 electrode has a high specific capacitance of 246.6 F · g^-1 at a current density of 0.5 A · g^-1 in 1 mol/L H₂SO₄ electrolyte and has excellent cycle stability with 83.7% capacity retention over 8 000 cycles. At the same time, the N-GQDs@cZIF-8 supercapacitor achieves an excellent energy density of about 8.2 W · h · kg^-1 at a power density of 104.5 W · kg^-1. The outstanding electrochemical performance of the device owes much to its 3D structure with high specific surface area and high nitrogen doping level (10.13%) with high pseudo capacitive activity, which makes this electrode have potential application in the field of supercapacitors and lithium-ion batteries.

Key words: metal organic frameworks (MOF)-derived carbon material, N-doped graphene quantum dots (N-GQDs), supercapacitor

CLC Number:

TQ316.3

Xiang LIU, Ling CAO, Weiwei YAO, Zhen LI, Minghong WU. Fabrication and electrochemical properties of nitrogen doped MOF-derived carbon electrodes[J]. Journal of Shanghai University（Natural Science Edition）, 2020, 26(1): 153-162.

Figures/Tables 8

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

References 15

[1]	Salunkhe R R, Kamachi Y, Torad N L , et al. Fabrication of symmetric supercapacitors based on MOF-derived nanoporous carbons[J]. J Mater Chem A, 2014,2(46):19848-19854.
[2]	Zhong S, Zhan C X, Cao D P . Zeolitic imidazolate framework-derived nitrogen-doped porous carbons as high performance supercapacitor electrode materials[J]. Carbon, 2015,85:51-59.
[3]	Salunkhe R R, Kaneti Y V, Kim J , et al. Nanoarchitectures for metal-organic framework-derived nanoporous carbons toward supercapacitor applications[J]. Acc Chem Res, 2016,49(12):2796-2806.
[4]	Liu W W, Feng Y Q, Yan X B , et al. Superior micro-supercapacitors based on graphene quantum dots[J]. Adv Funct Mater, 2013,23(33):4111-4122.
[5]	Torad N L, Salunkhe R R, Li Y Q , et al. Electric double-layer capacitors based on highly graphitized nanoporous carbons derived from ZIF-67[J]. Chem Eur J, 2014,20(26):7895-7900.
[6]	Pu J, Li C W, Tang L , et al. Impregnation assisted synjournal of 3D nitrogen-doped porous carbon with high capacitance[J]. Carbon, 2015,94:650-660.
[7]	Chen L F, Zhang X D, Liang H W , et al. Synjournal of nitrogen-doped porous carbon nanofibers as an efficient electrode material for supercapacitors[J]. ACS Nano, 2012,6(8):7092-7102.
[8]	Dong X W, Hu N T, Wei L M , et al. A new strategy to prepare N-doped holey graphene for high-volumetric supercapacitors[J]. J Mater Chem A, 2016,4(25):9739-9743.
[9]	Du X S, Liu H Y, Mai Y W . Ultrafast synjournal of multifunctional N-doped graphene foam in an ethanol flame[J]. ACS Nano, 2016,10(1):453-462.
[10]	Jiang M, Cao X P, Zhu D D , et al. Hierarchically porous N-doped carbon derived from ZIF-8 nanocomposites for electrochemical applications[J]. Electrochim Acta, 2016,196:699-707.
[11]	Iamprasertkun P, Krittayavathananon A, Sawangphruk M . N-doped reduced graphene oxide aerogel coated on carboxyl-modified carbon fiber paper for high-performance ionic-liquid supercapacitors[J]. Carbon, 2016,102:455-461.
[12]	Su F B, Poh C K, Chen J S , et al. Nitrogen-containing microporous carbon nanospheres with improved capacitive properties[J]. Energy Environ Sci, 2011,4(3):717-724.
[13]	Lai F L, Miao Y E, Zuo L , et al. Biomass-derived nitrogen-doped carbon nanofiber network: a facile template for decoration of ultrathin nickel-cobalt layered double hydroxide nanosheets as high-performance asymmetric supercapacitor electrode[J]. Small, 2016,12(24):3235-3244.
[14]	Lee Y H, Chang K H, Hu C C . Differentiate the pseudocapacitance and double-layer capacitance contributions for nitrogen-doped reduced graphene oxide in acidic and alkaline electrolytes[J]. Journal of Power Sources, 2013,227:300-308.
[15]	Liu Y Z, Li G R, Guo Y , et al. Flexible and binder-free hierarchical porous carbon film for supercapacitor electrodes derived from MOFs/CNT[J]. ACS Applied Materials & Interfaces, 2017,9(16):14043-14050.
