二硫化钼-氧化石墨烯纳米粒子的添加量对水性聚氨酯丙烯酸树脂涂层防腐蚀性能的影响

doi:10.12066/j.issn.1007-2861.2249

上海大学学报(自然科学版) ›› 2022, Vol. 28 ›› Issue (1): 121-131.doi: 10.12066/j.issn.1007-2861.2249

二硫化钼-氧化石墨烯纳米粒子的添加量对水性聚氨酯丙烯酸树脂涂层防腐蚀性能的影响

王江宇¹, 郭小凤², 石磊², 陈立全², 王旭², 刘立起²()

1.上海大学体育学院, 上海 200444
2.上海大学材料科学与工程学院, 上海 200444

收稿日期:2020-03-09 出版日期:2022-02-28 发布日期:2020-09-14
通讯作者: 刘立起 E-mail:18817222071@163.com
作者简介:刘立起(1981—), 男, 副研究员, 博士, 研究方向为石墨烯、碳纤维材料. E-mail: 18817222071@163.com
基金资助:
云南省重大科技专项项目(202002AB080001-2)

Effect of molybdenum disulfide-graphene oxide nanohybrids on anticorrosive waterborne polyurethane acrylate coatings

WANG Jiangyu¹, GUO Xiaofeng², SHI Lei², CHEN Liquan², WANG Xu², LIU Liqi²()

1. College of Physical Education, Shanghai University, Shanghai 200444, China
2. School of Materials Science and Engineering, Shanghai University, Shanghai 200444, China

Received:2020-03-09 Online:2022-02-28 Published:2020-09-14
Contact: LIU Liqi E-mail:18817222071@163.com

摘要/Abstract

摘要：

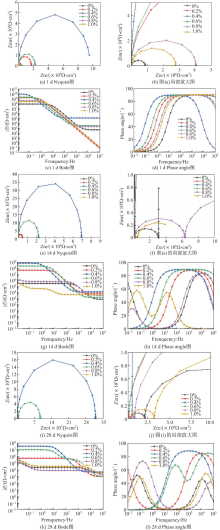

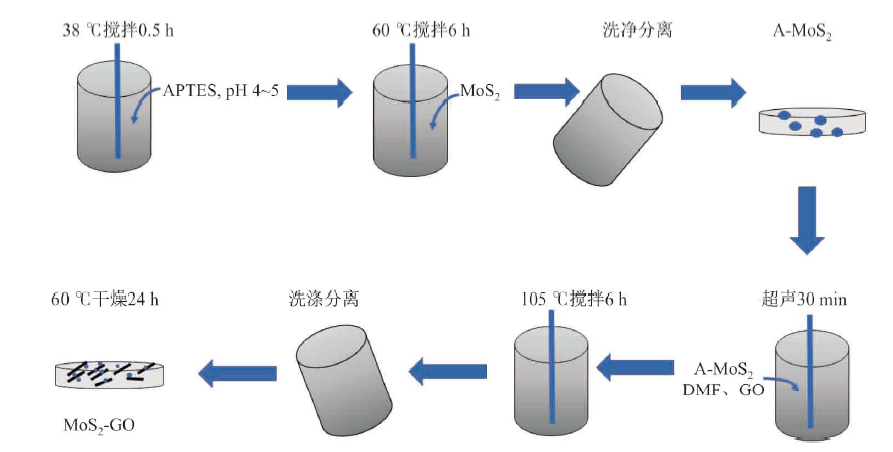

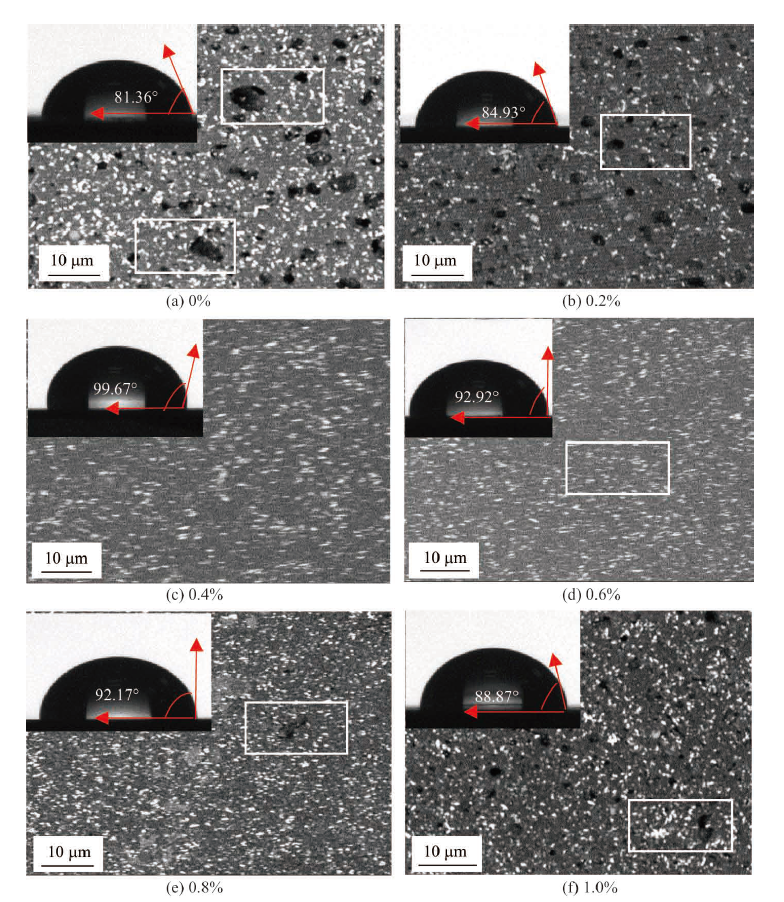

金属腐蚀给世界经济带来巨大损失, 防止金属腐蚀成为人们关注的焦点. 采用一种简单的方法合成二硫化钼-氧化石墨烯 (molybdenum disulfide-graphene oxide, MoS$_{2}$-GO), 将其作为纳米填料加入水性聚氨酯丙烯酸树脂 (waterborne polyurethane acrylic, WPUA) 涂层, 解决金属腐蚀的问题. 首先, 利用氨基丙基三乙氧基硅烷 (aminopropyltriethoxysilane, APTES) 对二硫化钼进行改性合成硅烷偶联剂改性二硫化钼 (molybdenum disulfide modified by silane coupling agent, A-MoS$_{2}$); 然后, 将 A-MoS$_{2}$ 与氧化石墨烯 (graphene oxide, GO) 在 N, N-二甲基甲酰胺 (dimethyl formamide, DMF) 中进行反应得到 MoS$_{2}$-GO 纳米粒子; 最后, 按照不同添加量 (0%、0.2%、0.4%、0.6%、 0.8% 和 1.0%) 将其加入 WPUA 涂层. 结果显示: MoS$_{2}$-GO 纳米粒子成功合成, 对比发现其中 0.4%MoS$_{2}$-GO/WPUA 涂层的表面平整致密, 接触角为 99.67$^{\circ}$; 在 3.5% NaCl 溶液中浸泡 28 d Bode 图中 $\vert Z\vert _{0.01{\rm Hz}}$ 为 3.19$\times $10$^{7} \Omega\cdot $cm², Nyquist 图为 1 个半圈, 相角图表现为 90$^{\circ}$ 的单峰, 表明具有更好的防腐蚀性能.

关键词: 水性聚氨酯丙烯酸树脂, 二硫化钼-氧化石墨烯, 氧化石墨烯, 防腐

Abstract:

Metal corrosion considerably affects the global economy; thus, strategies for the prevention of metal corrosion have gained considerable research and industrial attention. To develop one such strategy, herein, molybdenum disulfide-graphene oxide (MoS$_{2}$-GO) nanohybrids is synthesized by a simple method. The as-synthesized MoS$_{2}$-GO nanohybrids are added to waterborne polyurethane acrylates (WPUA) to prepare anticorrosive MoS$_{2}$-GO/WPUA coatings. Firstly, silane-functionalized molybdenum disulfide (A-MoS$_{2}$) via simple covalent functionalization with 3-aminopropyltriethoxysilane (APTES) is obtained. Secondly, MoS$_{2}$-GO nanohybrids are synthesized by a simple method in N, N-dimethylformamide (DMF). Finally, different amounts of the MoS$_{2}$-GO nanohybrids (0, 0.2%, 0.4%, 0.6%, 0.8%, 1.0%) are added to WPUA to prepare MoS$_{2}$-GO/WPUA coatings. The results show that the MoS$_{2}$-GO nanohybrids are synthesized successfully. The surface of the 0.4% MoS$_{2}$-GO/WPUA coating consisting the 0.4% MoS$_{2}$-GO sample is smooth. The contact angle is 99.67$^{\circ}$ and $\vert Z\vert _{0.01{\rm Hz}}$ is 3.19$\times $10$^{7}\Omega \cdot $cm² after 28 days of immersion in 3.5% NaCl. The Nyquist plot shows a semicircle and the phase angle diagram has a single peak close to 90$^{\circ}$, indicating high corrosion resistance.

Key words: waterborne polyurethane acrylate (WPUA), molybdenum disulfide-graphene oxide (MoS$_{2}$-GO), graphene oxide (GO), anticorrosive

中图分类号:

TB332

王江宇, 郭小凤, 石磊, 陈立全, 王旭, 刘立起. 二硫化钼-氧化石墨烯纳米粒子的添加量对水性聚氨酯丙烯酸树脂涂层防腐蚀性能的影响[J]. 上海大学学报(自然科学版), 2022, 28(1): 121-131.

WANG Jiangyu, GUO Xiaofeng, SHI Lei, CHEN Liquan, WANG Xu, LIU Liqi. Effect of molybdenum disulfide-graphene oxide nanohybrids on anticorrosive waterborne polyurethane acrylate coatings[J]. Journal of Shanghai University（Natural Science Edition）, 2022, 28(1): 121-131.

图/表 10

图1

图2

图3

图4

图5

图6

图7

图8

表1

图9

参考文献 15

[1]	王婷. 石墨烯改性水性环氧防腐涂料的制备与性能[D]. 济南: 济南大学, 2018.
[2]	田闽. 聚乙烯亚胺改性介孔二氧化钛的制备及其在防腐涂料中的应用研究[D]. 马鞍山: 安徽工业大学, 2018.
[3]	冯桂兵. 二硫化钼的水热合成及其光催化性能研究[D]. 广州: 广东工业大学, 2016.
[4]	Zhou X S, Wan L J, Guo Y G. Synjournal of MoS$_{2}$ nanosheet--graphene nanosheet hybrid materials for stable lithium storage[J]. Chemical Communications, 2013, 49(18): 1838. doi: 10.1039/c3cc38780a
[5]	Huang T, Luo Y T, Chen W. Self-assembled MoS$_{2}$-GO framework as efficient cocatalyst of CuInZnS for visible-light driven hydrogen evolution[J]. Acs Sustainable Chemistry & Engineering, 2018, 6(4): 1-3.
[6]	刘耕. 二硫化钼/还原氧化石墨烯复合材料的制备及其电化学性能研究[D]. 天津: 天津大学, 2014.
[7]	张建强, 冯辉霞, 赵霞. KH570 对二硫化钼粉体表面的改性研究[J]. 化学试剂, 2009, 31(1): 5-8.
[8]	刘战强, 唐宇峰, 林天全. 石墨烯-二硫化钼复合负极材料的制备及性能研究[J]. 无机材料学报, 2016, 197(4): 12-17.
[9]	Haeri S Z, Ramezanzadeh B, Asghari M. A novel fabrication of a high performance SiO$_{2}$-graphene oxide (GO) nanohybrids: characterization of thermal properties of epoxy nanocomposites filled with SiO$_{2}$-GO nanohybrids[J]. Journal of Colloid & Interface Science, 2017, 493: 111-122.
[10]	Pourhashem S, Vaezi M R, Rashidi A. Distinctive roles of silane coupling agents on the corrosion inhibition performance of graphene oxide in epoxy coatings[J]. Progress in Organic Coatings, 2017, 111: 47-56. doi: 10.1016/j.porgcoat.2017.05.008
[11]	Lei L, Xia Z, Zhang L. Preparation and properties of amino-functional reduced graphene oxide/waterborne polyurethane hybrid emulsions[J]. Progress in Organic Coatings, 2016, 97: 19-27. doi: 10.1016/j.porgcoat.2016.03.011
[12]	Yue G, Lin J Y, Tai S Y. A catalytic composite film of MoS$_{2}$/graphene fiake as a counter electrode forPt-free dye-sensitized solar cells[J]. Electrochimica Acta, 2012, 85: 162-168. doi: 10.1016/j.electacta.2012.08.040
[13]	Krishnan M A, Aneja K S, Shaikh A. Graphene-based anticorrosive coatings for copper[J]. RSC Advances, 2018, 8(1): 499-507. doi: 10.1039/C7RA10167H
[14]	季献武, 时士峰, 肖嵘. 硅烷处理对涂层/金属体系耐蚀性能的影响[J]. 腐蚀与防护, 2012, 33(12): 1081-1086.
[15]	董洪亮, 李国军, 崔学军. 有机硅 KH-570 改性硅溶胶杂化涂层的制备研究[J]. 化工新型材料, 2010(3): 96-98.
