玻片表面硅烷/氧化石墨烯复合涂层的制备及其摩擦性能

doi:10.12066/j.issn.1007-2861.2188

上海大学学报(自然科学版) ›› 2021, Vol. 27 ›› Issue (5): 950-958.doi: 10.12066/j.issn.1007-2861.2188

玻片表面硅烷/氧化石墨烯复合涂层的制备及其摩擦性能

刘畅¹^,², 杨红梅², 陈晋阳¹(), 曾祥琼²

1.上海大学环境与化学工程学院, 上海 200444
2.中国科学院上海高等研究院先进润滑材料实验室, 上海 201210

收稿日期:2019-08-05 出版日期:2021-10-31 发布日期:2021-10-22
通讯作者: 陈晋阳 E-mail:chenjy@shu.edu.cn
作者简介:陈晋阳(1971—), 男, 教授, 博士生导师, 博士, 研究方向为超临界流体技术和绿色化学. E-mail: chenjy@shu.edu.cn

Preparation and tribological properties of silane/graphene oxide composite coating on glass substrate

LIU Chang¹^,², YANG Hongmei², CHEN Jinyang¹(), ZENG Xiangqiong²

1. School of Environmental and Chemical Engineering, Shanghai University, Shanghai 200444, China
2. Laboratory for Advanced Lubricating Materials, Shanghai Advanced Research Institute, Chinese Academy of Sciences, Shanghai 201210, China

Received:2019-08-05 Online:2021-10-31 Published:2021-10-22
Contact: CHEN Jinyang E-mail:chenjy@shu.edu.cn

摘要/Abstract

摘要：

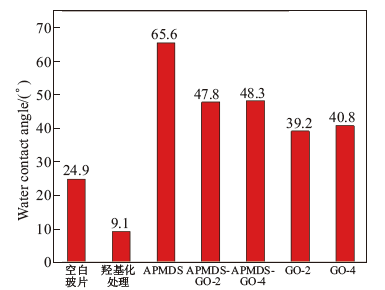

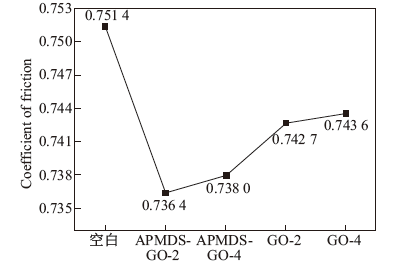

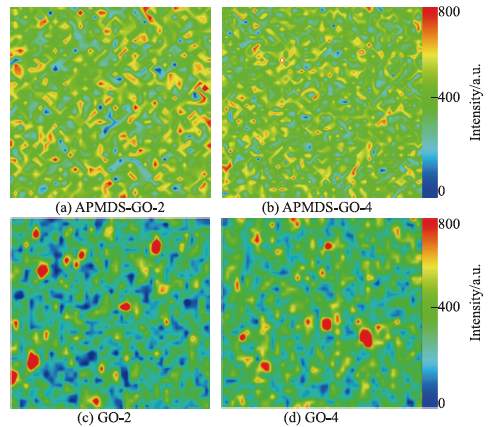

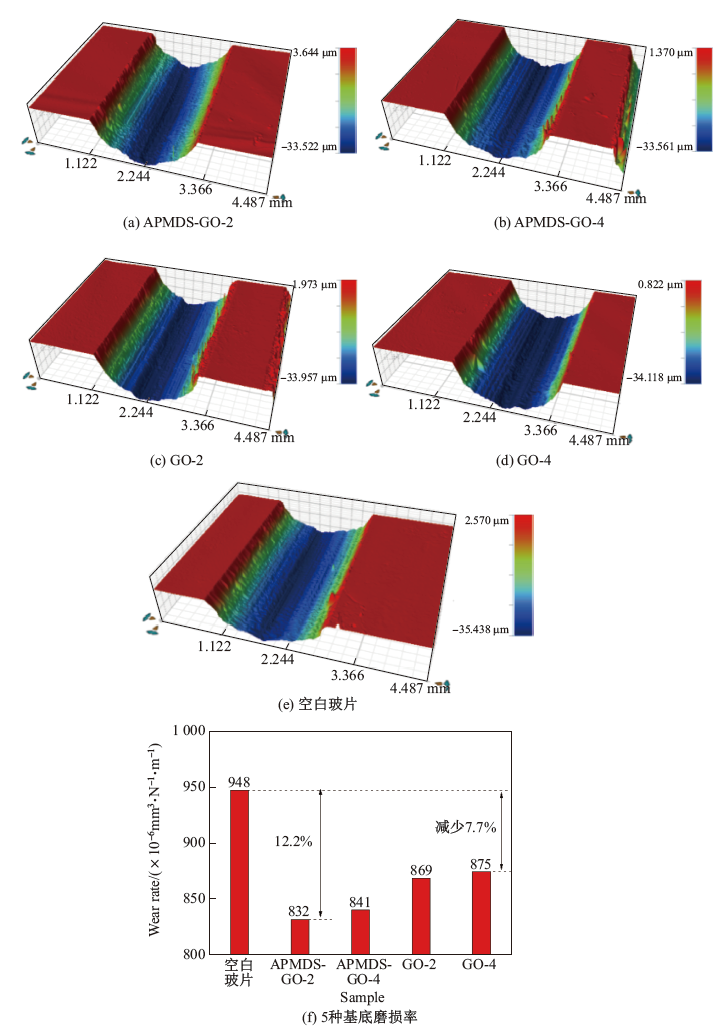

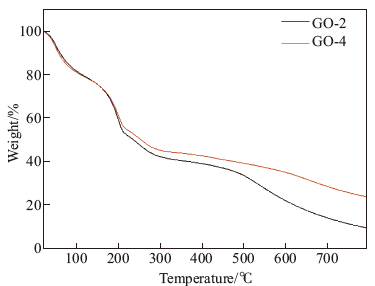

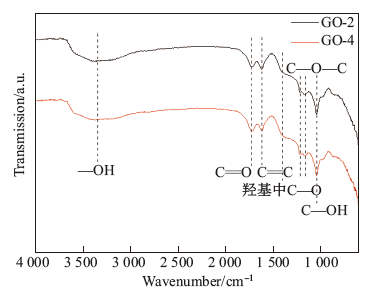

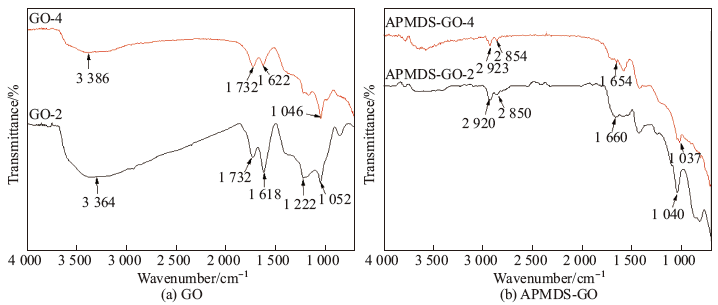

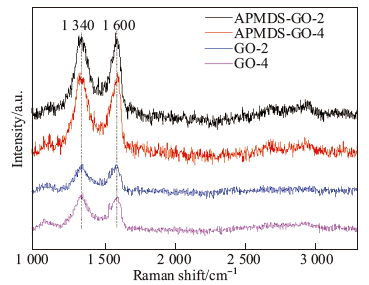

使用硅烷偶联剂 3-氨丙基甲基二甲氧基硅烷(3-(dimethoxymethylsilyl)propylamine) 和不同氧化程度的氧化石墨烯(graphene oxide, GO)在玻片表面采用浸渍法制备了一种在水环境下具有较好润滑性能的氧化石墨烯涂层. 通过傅里叶变换红外光谱 (Fourier transform infrared spectrometer, FTIR)仪、拉曼光谱(Raman spectra)分析法、水接触角(water contact angle, WCA)测试等方法研究了涂层的表面形貌及其特征. 研究结果表明, 所制备的硅烷/氧化石墨烯涂层表面均一, 没有明显的缺陷. 摩擦测试结果显示, 涂层能够有效提高耐磨性能, 不同氧化程度的氧化石墨烯对抗磨性能有着不同的影响, 氧化程度越高, 抗磨性能越好.

关键词: 氧化石墨烯, 不同氧化程度, 硅烷, 涂层, 摩擦学性能

Abstract:

An anti-friction graphene oxide (GO) coating was prepared on a glass substrate using silane coupling agent 3-(dimethoxymethylsilyl)propylamine and GO with different oxidation degrees using the immersion method. The surface morphology and characteristics of the coating were investigated through Raman spectroscopy, Fourier infrared spectroscopy, and water contact angle tests. The results show that the silane/GO coating can be successfully fabricated, and the surface is uniform with no visible defects. For the tribological test, the coating can significantly improve the anti-friction properties of the substrate. The tribological properties of GO are related to its oxidation degree. The higher the oxidation degree of GO, the better the anti-friction properties.

Key words: graphene oxide (GO), different oxidation degree, silane, coating, tribologicalproperty

中图分类号:

TG174.42

刘畅, 杨红梅, 陈晋阳, 曾祥琼. 玻片表面硅烷/氧化石墨烯复合涂层的制备及其摩擦性能[J]. 上海大学学报(自然科学版), 2021, 27(5): 950-958.

LIU Chang, YANG Hongmei, CHEN Jinyang, ZENG Xiangqiong. Preparation and tribological properties of silane/graphene oxide composite coating on glass substrate[J]. Journal of Shanghai University（Natural Science Edition）, 2021, 27(5): 950-958.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 17

[1]	Novoselov K S. Electric field effect in atomically thin carbon films[J]. Science, 2004, 306(5696): 666-669. pmid: 15499015
[2]	Pumera M. Electrochemistry of graphene: new horizons for sensing and energy storage[J]. Chemical Record, 2009, 9(4): 211-223. doi: 10.1002/tcr.v9:4
[3]	Wang H, Shen C, Liu J, et al. Three-dimensional MnCo$_2$O$_4$/graphene composites for supercapacitor with promising electrochemical properties[J]. Journal of Alloys and Compounds, 2019, 792: 122-129. doi: 10.1016/j.jallcom.2019.03.405
[4]	Kim K S, Zhao Y, Jang H, et al. Large-scale pattern growth of graphene films for stretchable transparent electrodes[J]. Nature, 2009, 457(7230): 706-710. doi: 10.1038/nature07719
[5]	Dreyer D R, Park S, Bielawski C W, et al. The chemistry of graphene oxide[J]. Chemical Society Reviews, 2010, 39(1): 228-240. doi: 10.1039/B917103G
[6]	Hanifah M F R, Jaafar J, Othman M H D, et al. Facile synjournal of highly favorable graphene oxide: effect of oxidation degree on the structural, morphological, thermal and electrochemical properties[J]. Materialia, 2019, 6: 100344. doi: 10.1016/j.mtla.2019.100344
[7]	Pei S, Cheng H M. The reduction of graphene oxide[J]. Carbon, 2012, 50(9): 3210-3228. doi: 10.1016/j.carbon.2011.11.010
[8]	Li X, Lu H, Guo J, et al. Synergistic water lubrication effect of self-assembled nanofilm and graphene oxide additive[J]. Applied Surface Science, 2018, 455: 1070-1077. doi: 10.1016/j.apsusc.2018.06.036
[9]	Bakar A N H, Ali G A M, Ismail J, et al. Size-dependent corrosion behavior of graphene oxide coating[J]. Progress in Organic Coatings, 2019, 134: 272-280. doi: 10.1016/j.porgcoat.2019.05.011
[10]	Liu Y, Wen J, Gao Y, et al. Antibacterial graphene oxide coatings on polymer substrate[J]. Applied Surface Science, 2018, 436: 624-630. doi: 10.1016/j.apsusc.2017.12.006
[11]	Li P F, Zhou H, Cheng X H. Nano/micro tribological behaviors of a self-assembled graphene oxide nanolayer on Ti/titanium alloy substrates[J]. Applied Surface Science, 2013, 285: 937-944. doi: 10.1016/j.apsusc.2013.09.019
[12]	Tong L B, Zhang J B, Xu C, et al. Enhanced corrosion and wear resistances by graphene oxide coating on the surface of Mg-Zn-Ca alloy[J]. Carbon, 2016, 109: 340-351. doi: 10.1016/j.carbon.2016.08.032
[13]	Qi S, Li X, Dong H. Improving the macro-scale tribology of monolayer graphene oxide coating on stainless steel by a silane bonding layer[J]. Materials Letters, 2017, 209: 15-18. doi: 10.1016/j.matlet.2017.07.087
[14]	Zhao L, Yang H, Liu C, et al. The correlation between molecular structure and tribological properties of graphene oxide with different oxidation degree[J]. Tribology Letters, 2019, 67(3): 1-19. doi: 10.1007/s11249-018-1118-7
[15]	Pourhashem S, Rashidi A, Vaezi M R, et al. Excellent corrosion protection performance of epoxy composite coatings filled with amino-silane functionalized graphene oxide[J]. Surface and Coatings Technology, 2017, 317: 1-9. doi: 10.1016/j.surfcoat.2017.03.050
[16]	Muniyalakshmi M, Sethuraman K, Silambarasan D. Synthesis and characterization of graphene oxide nanosheets[J]. Materials Today: Proceedings, 2019. DOI: 10.1016/j.matpr.2019.06.375. doi: 10.1016/j.matpr.2019.06.375
[17]	Liang H, Xu M, Bu Y, et al. Confined interlayer water enhances solid lubrication performances of graphene oxide films with optimized oxygen functional groups[J]. Applied Surface Science, 2019, 485: 64-69. doi: 10.1016/j.apsusc.2019.04.190

玻片表面硅烷/氧化石墨烯复合涂层的制备及其摩擦性能

Preparation and tribological properties of silane/graphene oxide composite coating on glass substrate

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 8

参考文献 17

相关文章 7

编辑推荐

Metrics

本文评价

[1]	张亚萍, 石磊, 郭小凤, 刘立起. 界面结合方式对氧化石墨烯-碳纤维/环氧树脂复合材料性能的影响[J]. 上海大学学报(自然科学版), 2020, 26(6): 927-936.
[2]	黄志, 毕艳玖, 沙云菲, 谢雯燕, 吴达, 刘百战, 刘太昂. 在线液相色谱-气相色谱/质谱联用快速分析烟叶中的西柏三烯二醇[J]. 上海大学学报(自然科学版), 2020, 26(2): 227-233.
[3]	王瑞, 胡亦杨, 蒋晓濛, 赵攀登, 程伶俐, 焦正. Ag/AgCl/PDA-rGO 无酶葡萄糖传感器的构建[J]. 上海大学学报(自然科学版), 2019, 25(6): 943-949.
[4]	吴永胜1, 余若冰1, 朱长进1, 刘胜平1, 焦正2. 硅烷改性芳基乙炔固化物的耐热性能[J]. 上海大学学报(自然科学版), 2013, 19(6): 562-566.
[5]	李曼, 仲勉, 荆亮, 冯加良. 上海PM_2.5中糖类化合物的组成及来源分析[J]. 上海大学学报(自然科学版), 2013, 19(4): 387-392.
[6]	徐静, 闻宏亮, 欧阳建波, 王宁, 杨胜韬. 氧化石墨烯-壳聚糖复合材料对甲烯蓝的吸附动力学[J]. 上海大学学报(自然科学版), 2013, 19(4): 400-404.
[7]	常艳丽陈胜曹傲能. 压力促进氧化石墨烯水热还原反应的机理[J]. 上海大学学报(自然科学版), 2010, 16(6): 577-581.
