适应于可再生能源接入下配电网极限线损的计算方法

doi:10.12066/j.issn.1007-2861.2191

上海大学学报(自然科学版) ›› 2021, Vol. 27 ›› Issue (5): 833-845.doi: 10.12066/j.issn.1007-2861.2191

适应于可再生能源接入下配电网极限线损的计算方法

朱玥¹, 顾洁¹(), 王春义², 牟宏², 崔国柱³, 李煜¹, 金之俭¹

1.上海交通大学电子信息与电气工程学院大数据工程技术研究中心, 上海 200240
2.国网山东省电力公司发展策划部, 山东济南 250001
3.国网山东省电力公司临沂供电公司, 山东临沂 276000

收稿日期:2019-11-25 出版日期:2021-10-31 发布日期:2021-10-22
通讯作者: 顾洁 E-mail:gujie@sjtu.edu.cn
作者简介:顾洁(1971—), 女, 副教授, 博士, 研究方向为电力系统规划、负荷预测. E-mail: gujie@sjtu.edu.cn
基金资助:
国家重点研发计划资助项目(2016YFB0900100);上海市科委重大资助项目(18DZ1100303)

Calculation method of limit line loss of renewable energy distribution network

ZHU Yue¹, GU Jie¹(), WANG Chunyi², MOU Hong², CUI Guozhu³, LI Yu¹, JIN Zhijian¹

1. Research Center for Big Data Engineering and Technologies, School of Electronic Information and Electrical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2. Development Planning Department, State Grid Shandong Electric Power Company, Jinan 250001, Shandong, China
3. Linyi Power Supply Company, State Grid Shandong Electric Power Company, Linyi 276000, Shandong, China

Received:2019-11-25 Online:2021-10-31 Published:2021-10-22
Contact: GU Jie E-mail:gujie@sjtu.edu.cn

摘要/Abstract

摘要：

随着可再生能源的开发与利用大幅提升, 分布式的电源接入给中压配电网潮流分布带来了波动性和不确定性, 从而加大了线损计算的难度, 不利于电网经济性考核指标的制定. 因此, 极限线损的计算方法与模型越来越引起重视. 提出了一种基于半不变量的配电网极限线损计算模型, 以实现含可再生能源配电网极限线损的快速计算. 首先, 分别依据潮流计算与统计数据进行计算, 得到配电网各节点与电源的各阶半不变量; 然后, 用 Gram-Charlier (GC) 级数展开式计算得到各个状态变量的分布函数与概率密度函数; 最后, 根据置信区间确定配电网极限线损. 以 IEEE34 节点系统为算例, 分析了不同节点分布式电源接入对配电网的影响, 验证了应用半不变量法的线损计算模型的计算精度及其在大规模配电网应用中的计算速度优势.

关键词: 配电网, 极限线损, 分布式电源, 半不变量, 随机潮流

Abstract:

With the advancement of renewable energy technology and increasing demand, the access of distributed generations introduces volatility and uncertainty to the power flow distribution within medium voltage distribution networks. Consequently, the volatile and uncertain nature significantly hinders the accurate line loss calculation and establishment of grid assessment indicators. This study proposes a semi-invariant calculation model that aids realize an efficient calculation approach for limit line loss of the distribution network containing renewable energy. Initially, according to the power flow calculation and statistical data, the semi-invariants of each node and generations in the distribution network are calculated. Next, the distribution function and probability density function of each state index are calculated with the Gram-Charlier (GC) series expansion formula. Finally, the limit line loss of the distribution network is determined according to the confidence interval. IEEE34 node system is chosen as an example in this study to analyse the influence of different node distributed power access on distribution network. The calculation accuracy of line loss calculation model based on semi-invariant method and its calculation speed advantage in large-scale distribution network application is verified.

Key words: distribution network, limit line loss, distributed power supply, semi-invariant model, stochastic load flow

中图分类号:

TM744

朱玥, 顾洁, 王春义, 牟宏, 崔国柱, 李煜, 金之俭. 适应于可再生能源接入下配电网极限线损的计算方法[J]. 上海大学学报(自然科学版), 2021, 27(5): 833-845.

ZHU Yue, GU Jie, WANG Chunyi, MOU Hong, CUI Guozhu, LI Yu, JIN Zhijian. Calculation method of limit line loss of renewable energy distribution network[J]. Journal of Shanghai University（Natural Science Edition）, 2021, 27(5): 833-845.

图/表 10

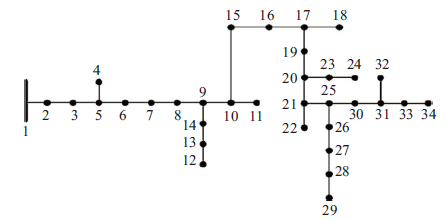

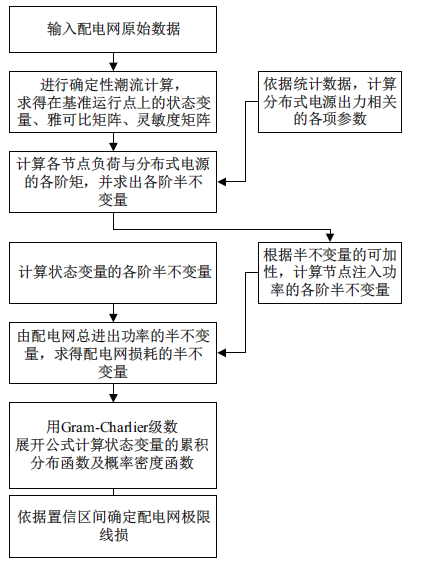

图1

图2

表1

表2

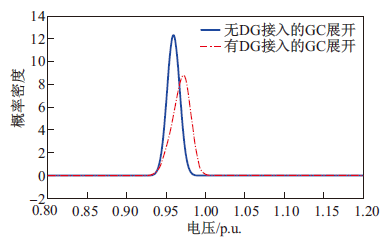

图3

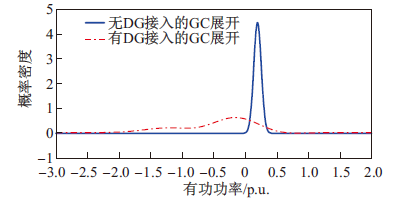

图4

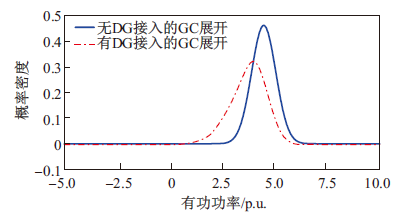

图5

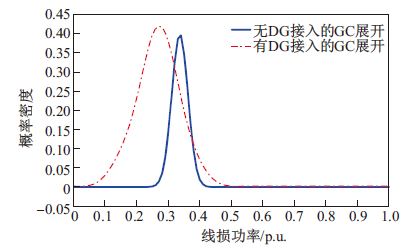

图6

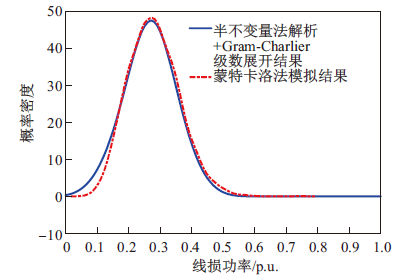

图7

表3

参考文献 18

[1]	胡毅飞. 含分布式电源的 10 kV 配电网线损计算研究[D]. 郑州: 郑州大学, 2017.
	Hu Y F. Research on line loss calculation of 10 kV distribution network with DG[D]. Zhengzhou: Zhengzhou University, 2017.
[2]	李文琦. 含分布式发电的配电网网损分析[D]. 北京: 华北电力大学, 2012.
	Li W Q. Analysis of distribution network loss with distributed generation[D]. Beijing: North China Electric Power University, 2012.
[3]	安晓华, 欧阳森, 冯天瑞, 等. 中压馈线理论线损率标杆值的优化设计方法及应用[J]. 电网技术, 2016, 40(1): 199-206.
	An X H, Ouyang S, Feng T R, et al. An optimal design method of theoretical line loss rate benchmark value for medium voltage feeders and its application[J]. Power System Technology, 2016, 40(1): 199-206.
[4]	何天雨, 卫志农, 孙国强, 等. 基于网损等值负荷模型的改进直流最优潮流算法[J]. 电力系统自动化, 2016, 40(6): 58-64.
	He T Y, Wei Z N, Sun G Q, et al. Modified direct current optimal power flow algorithm based on net loss equivalent load model[J]. Automation of Electric Power Systems, 2016, 40(6): 58-64.
[5]	李亚, 刘丽平, 李柏青, 等. 基于改进 $K$-means 聚类和 BP 神经网络的台区线损率计算方法[J]. 中国电机工程学报, 2016, 36(17): 4543-4552.
	Li Y, Liu L P, Li B Q, et al. Calculation of line loss rate in transformer district based on improved $K$-means clustering algorithm and BP neural network[J]. Proceedings of the CSEE, 2016, 36(17): 4543-4552.
[6]	张银, 张祥华, 伏圣群, 等. 中压配电网极限线损计算方法研究[J]. 广西科技大学学报, 2017, 28(2): 67-73.
	Zhang Y, Zhang X H, Fu S Q, et al. Study on ultimate line loss calculation method of mid-voltage distribution network[J]. Journal of Guangxi University of Science and Technology, 2017, 28(2): 67-73.
[7]	王兴华. 台区极限线损的低压配电网降损规划决策研究[J]. 新型工业化, 2018, 8(1): 39-48.
	Wang X H. Research on loss reduction planning decision-making of low-voltage distribution network based on substation area line loss limit[J]. The Journal of New Industrialization, 2018, 8(1): 39-48.
[8]	张祥华. 10 kV 配电网极限线损计算方法研究[D]. 广州: 华南理工大学, 2014.
	Zhang X H. Calculation method research about ultimate line losses of 10 kV distribution network[D]. Guangzhou: South China University of Technology, 2014.
[9]	Allan R N, Grigg C H, al Shakarchi M R G. Numerical techniques in probabilistic load flow problems[J]. International Journal for Numerical Methods in Engineering, 1976, 10(4): 853-860. doi: 10.1002/(ISSN)1097-0207
[10]	刘宇, 高山, 杨胜春, 等. 电力系统概率潮流算法综述[J]. 电力系统自动化, 2014, 38(23): 127-135.
	Liu Y, Gao S, Yang S C, et al. Review on algorithms for probabilistic load flow in power system[J]. Automation of Electric Power Systems, 2014, 38(23): 127-135.
[11]	Zhang P, Lee S T. Probabilistic load flow computation using the method of combined cumulants and Gram-Charlier expansion[J]. IEEE Transactions on Power Systems, 2004, 19(1): 676-682. doi: 10.1109/TPWRS.2003.818743
[12]	彭寒梅, 曹一家, 黄小庆, 等. 基于组合抽样的含分布式电源随机潮流计算[J]. 电力自动化设备, 2014, 34(5): 28-34.
	Peng H M, Cao Y J, Huang X Q, et al. Probabilistic load flow calculation based on combination sampling for power system containing distributed generations[J]. Electric Power Automation Equipment, 2014, 34(5): 28-34.
[13]	方斯顿, 程浩忠, 徐国栋, 等. 基于非参数核密度估计的扩展准蒙特卡洛随机潮流方法[J]. 电力系统自动化, 2015, 39(7): 21-27.
	Fang S D, Cheng H Z, Xu G D, et al. An extended quasi monte carlo probabilistic load flow method based on non-parametric kernel density estimation[J]. Automation of Electric Power Systems, 2015, 39(7): 21-27.
[14]	张惠娟, 冯垚, 高建森, 等. 基于蒙特卡罗抽样半不变量法的微电网随机潮流计算[J]. 电力系统及其自动化学报, 2017, 29(1): 58-62.
	Zhang H J, Feng Y, Gao J S, et al. Calculation of probabilistic load flow in microgrid based on monte carlo sampling and cumulant method[J]. Proceedings of the CSU-EPSA, 2017, 29(1): 58-62.
[15]	方斯顿, 程浩忠, 徐国栋, 等. 随机最优潮流及其应用的研究综述[J]. 电力自动化设备, 2016, 36(11): 1-10.
	Fang S D, Cheng H Z, Xu G D, et al. Reviews on stochastic optimal power flow and its application[J]. Electric Power Automation Equipment, 2016, 36(11): 1-10.
[16]	郑海峰. 计及分布式发电的配电系统随机潮流计算[D]. 天津: 天津大学, 2006.
	Zheng H F. Probabilistic power flow containing distributed generation in distributionsystem[D]. Tianjin: Tianjin University, 2006.
[17]	董雷, 程卫东, 杨以涵. 含风电场的电力系统概率潮流计算[J]. 电网技术, 2009, 33(16): 87-91.
	Dong L, Cheng W D, Yang Y H. Probabilistic load flow calculation for power grid containing wind farms[J]. Power System Technology, 2009, 33(16): 87-91.
[18]	IEEE Distribution Planning Working Group. Radial distribution test feeders[J]. IEEE Transactions on Power Systems, 1991, 6(3): 975-985. doi: 10.1109/59.119237
