一种变参数模型平方根 UKF 锂离子电池SOC 估计方法

doi:10.12066/j.issn.1007-2861.2048

Abstract

Abstract:

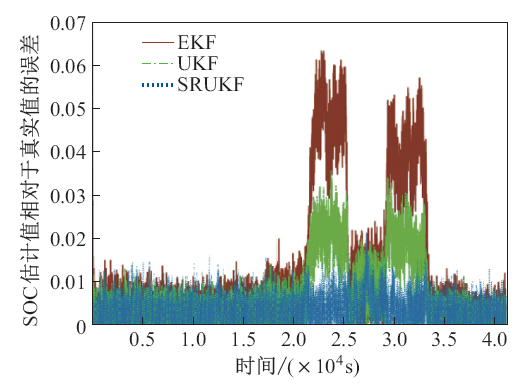

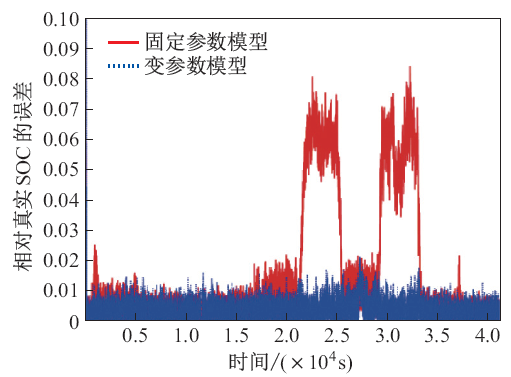

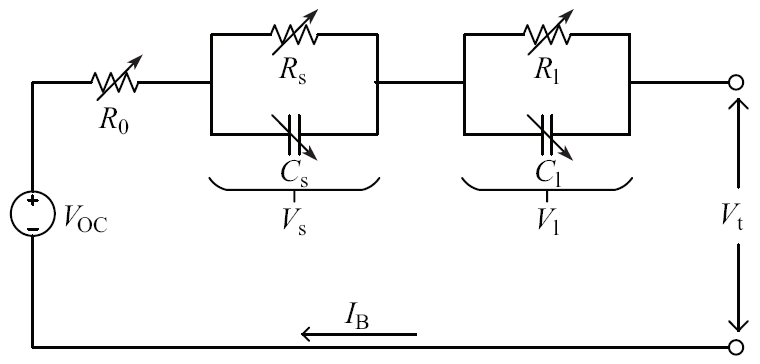

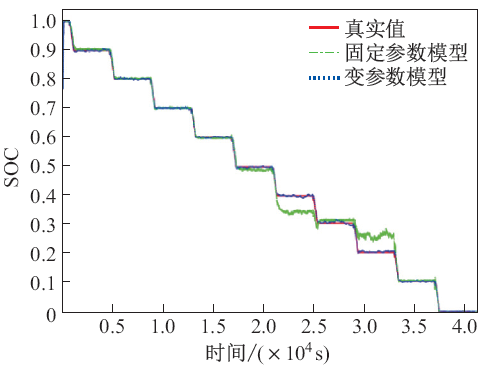

The state of charge (SOC) estimation is an important aspect of modern battery management system. Methods based on Thevenin Equivalent model for Lithium Battery such as extended Kalman filter (EKF) have been widely used in SOC estimation. However, there are some limitations in the derivation of Jacobian matrix and linearization. In this paper, a square root unscented Kalman filter (SRUKF) based on variable-parameter model is proposed to estimate SOC, which does not need to linearize the nonlinear model. At the same time, the square root property improves the numerical properties of the state covariance. The variable-parameter model is based on the second order Thevenin model, which makes the parameters of the lithium battery change with the quantity of electricity and reduces the error caused by the fixed parameter model that cannot reflect the change of parameters under different electric quantity. The experiment results show that the proposed method is effective. Compared with the existing SOC estimation method, the EKF, UKF and the estimation results from the fixed-parameter model, the error of this method is obviously smaller than that of the other three methods.

Key words: Li-ion battery, state of charge, variable-parameter model, square root unscented Kalman filter (UKF)

CLC Number:

TM912

GAO Wenkai, YAN Limin, SUN Die. A square root UKF with variable-parameter model for Li-ion batteries SOC estimation method[J]. Journal of Shanghai University（Natural Science Edition）, 2020, 26(3): 413-424.

Figures/Tables 14

Fig. 1

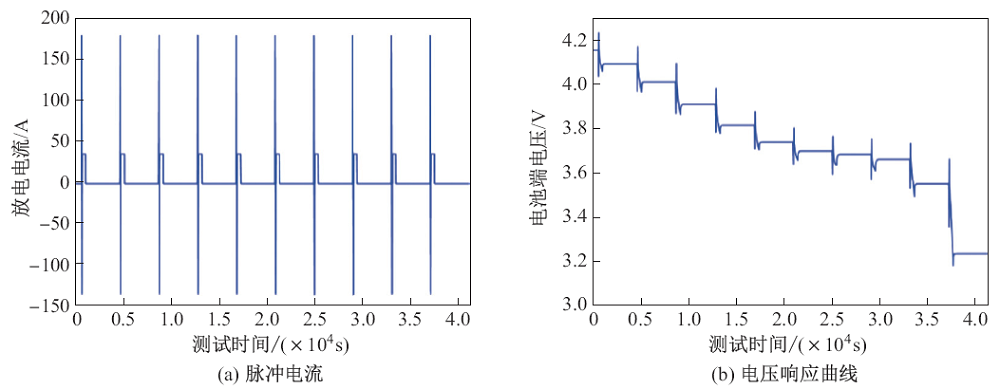

Fig. 2

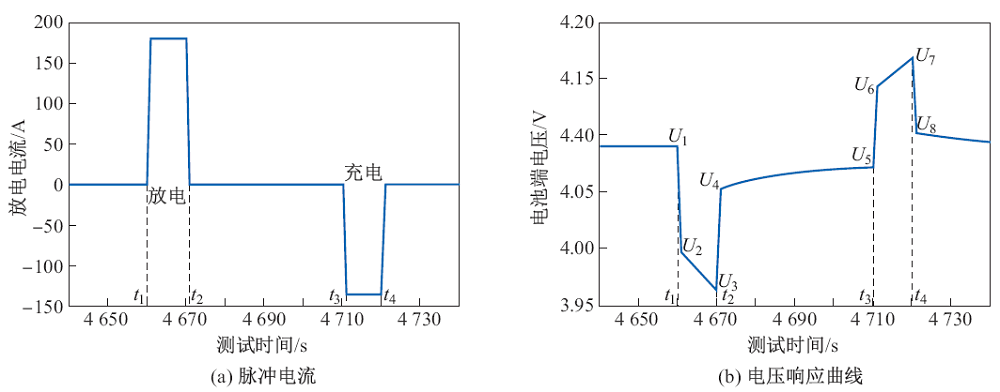

Fig. 3

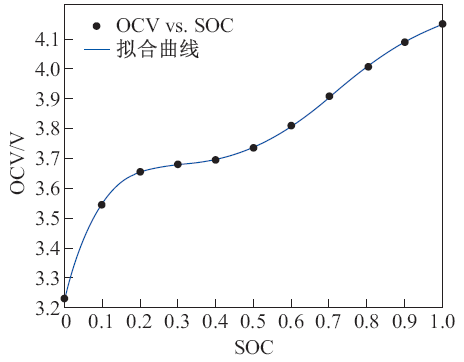

Fig. 4

Table 1

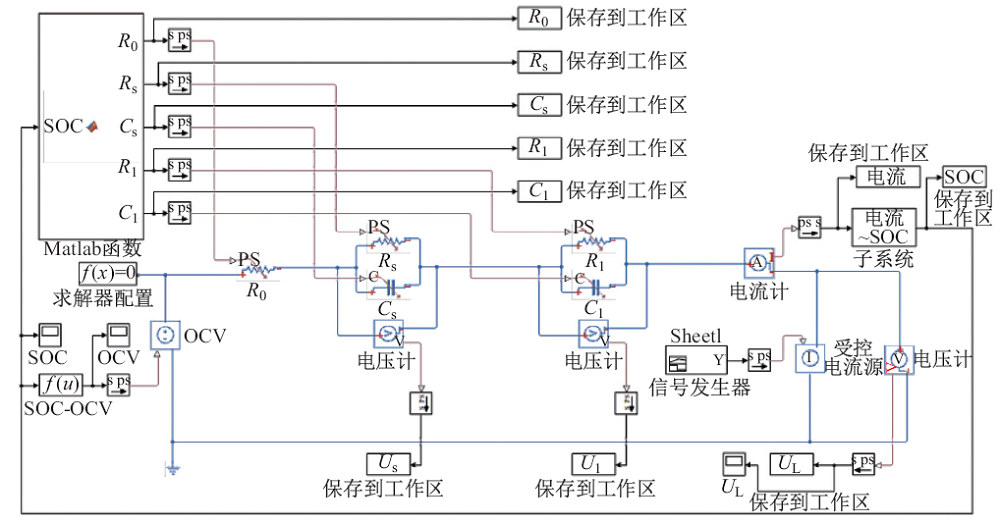

Fig. 5

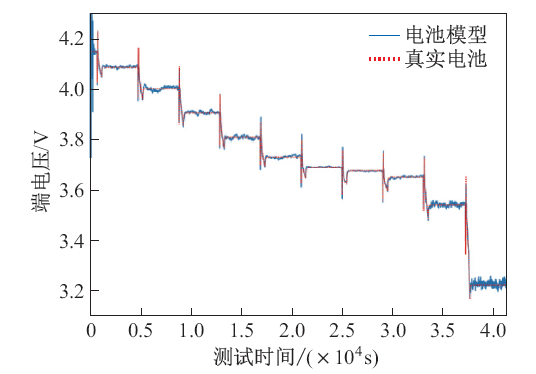

Fig. 6

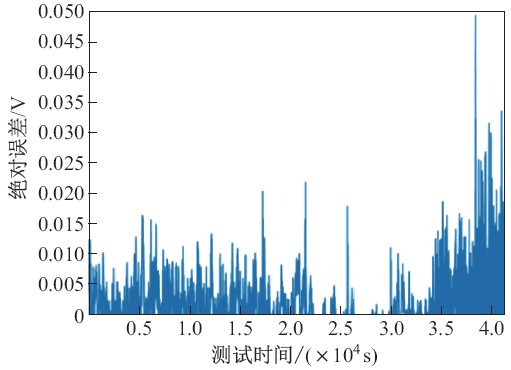

Fig. 7

Fig. 8

Fig. 9

Table 2

Fig. 10

Fig. 11

Table 3

References 15

[1]	Waag W, Fleischer C, Sauer D U. Critical review of the methods for monitoring of lithium-ion batteries in electric and hybrid vehicles[J]. Journal of Power Sources, 2014,258:321-339.
[2]	Gholizadeh M, Salmasi F R. Estimation of state of charge, unknown nonlinearities, and state of health of a lithium-ion battery based on a comprehensive unobservable model[J]. IEEE Transactions on Industrial Electronics, 2014,61(3):1335-1344.
[3]	Wang W, Chung H S H, Zhang J. Near-real-time parameter estimation of an electrical battery model with multiple time constants and SOC-dependent capacitance[J]. IEEE Transactions on Power Electronics, 2014,29(11):5905-5920.
[4]	张永凯, 赵建平, 陶明超, 等. 基于库仑计法的锂电池电量检测[J]. 化工自动化及仪表, 2016(2):191-194.
[5]	潘贵财. 基于神经网络的电池组容量检测系统设计[D]. 大连: 大连理工大学, 2015.
[6]	孙冬, 陈息坤. 基于离散滑模观测器的锂电池荷电状态估计[J]. 中国电机工程学报, 2015(1):185-191.
[7]	刘振华, 陈国平, 朱强. 基于扩展卡尔曼滤波的锂电池 SOC 估计[J]. 农业装备与车辆工程, 2017,55(8):45-48.
[8]	李世光, 汪洋, 王建志, 等. 基于改进EKF算法的锂电池 SOC 预估研究[J]. 电子技术应用, 2017(9):87-89.
[9]	石刚, 赵伟, 刘珊珊. 基于无迹卡尔曼滤波估算电池 SOC[J]. 计算机应用, 2016,36(12):3492-3498.
[10]	姬祥, 宋亦诚, 张俊乾. 锂离子电池 Li$_x$C$_6$ 扩散性质的分子动力学模拟[J]. 上海大学学报(自然科学版), 2014,20(1):68-74.
[11]	邓磊, 王立欣, 葛腾飞, 等. 基于改进PNGV 模型的动力锂电池快速充电优化[J]. 电源学报, 2014(4):10-14.
[12]	Aung H, Low K S, Goh S T. State-of-charge estimation of lithium-ion battery using square root spherical unscented Kalman filter (Sqrt-UKFST) in nanosatellite[J]. IEEE Transactions on Power Electronics, 2015,30(9):4774-4783.
[13]	费亚龙, 谢长君, 汤泽波, 等. 基于平方根无迹卡尔曼滤波的锂电池状态估计[J]. 中国电机工程学报, 2017,37(15):4514-4520.
[14]	寿学琦. FSEC电动赛车锂离子动力电池状态估计及均衡控制[D]. 哈尔滨: 哈尔滨工业大学, 2016.
[15]	何俊儒, 王洪诚, 杨欣荣, 等. 平方根无迹卡尔曼滤波作球面变换的 SOC 估计[J]. 电源技术, 2018(1):114-118.
