丙酸和乳酸插层的 LDHs 制备及其载碳量比较

doi:10.12066/j.issn.1007-2861.2023

Abstract

Abstract:

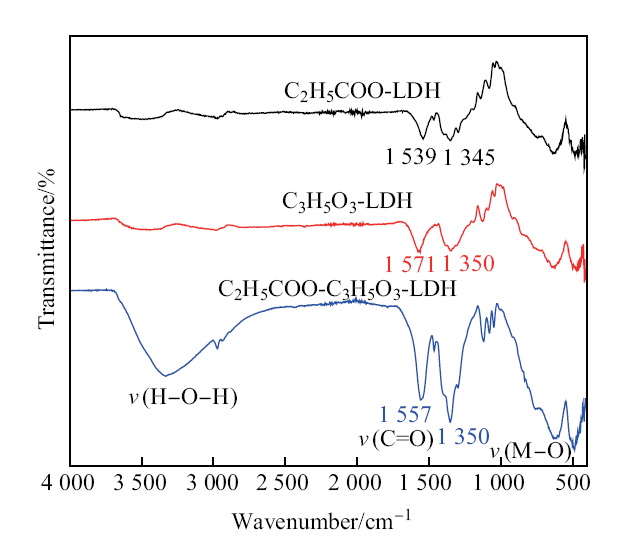

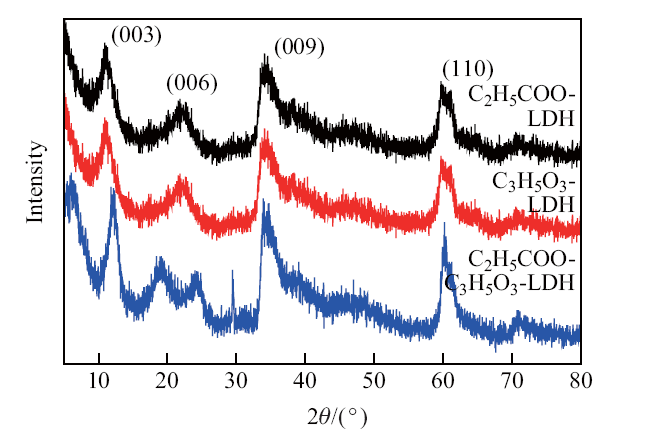

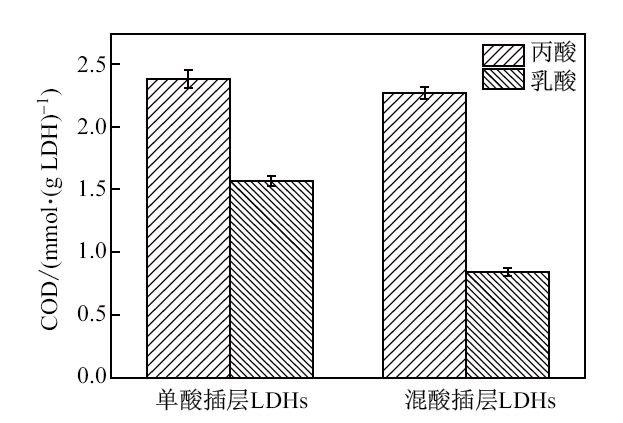

Layered double hydroxides (LDHs) intercalated with propionate anions, lactate anions and mixed acid were synthesized with co-precipitation method under the artificial system. Results of X-ray diffraction (XRD) and Fourier transform infrared (FTIR) spectroscopy analysis indicated that the three LDHs samples were coincident with the structure of Ni/Fe-LDH. Additionally, lactate anions and propionate anions were successfully intercalated into LDHs. The loading carbon contents of propionic acid in C₂H₅COO-LDH and C₂H₅COO-C₃H₅O₃-LDH were (2.38±0.07) and (2.27±0.05) mmol/g LDH, respectively, while the loading carbon contents of lactic acid in C₂H₅COO-LDH and C₂H₅COO-C₃H₅O₃-LDH were (1.57±0.04) and (0.84±0.03) mmol/g LDH, respectively, indicating that propionate anion was more competitive than lactate anion to be intercalated into LDHs.

Key words: layered double hydroxides (LDHs), propionic acid, lactic acid, loading carbon content

CLC Number:

X703

SHENG Liang, JIANG Li, YE Min, LIU Jianyong, QIAN Guangren, LI Yuyou, XU Zhiping. Preparation of propionic acid and lactic acid intercalated LDHs and comparison of loading carbon content[J]. Journal of Shanghai University（Natural Science Edition）, 2020, 26(2): 255-262.

Figures/Tables 5

References 20

[1]	魏楠, 赵思东, 孙雁 , 等. 污水处理厂强化脱氮过程中碳源投加策略研究[J]. 中国给水排水, 2017,33(1):71-79.
[2]	Zhang Y M, Cao X C, Cheng W Z , et al. Effect of fermentation liquid from food waste as a carbon source for enhancing denitrification in wastewater treatment[J]. Chemosphere, 2016,144:689-696. doi: 10.1016/j.chemosphere.2015.09.036 pmid: 26408975
[3]	王德美, 王晓昌 . 以乳酸为主的餐余发酵液的特性及其应用研究[D]. 西安: 西安建筑科技大学, 2016: 64.
[4]	Lim S J, Ahn Y H, Kim E Y , et al. Nitrate removal in a packed bed reactor using volatile fatty acids from anaerobic acidogenesis food wastes[J]. Biotechnology and Bioprocess Engineering, 2006,11:538-543.
[5]	Huang W W, Huang W L, Yuan T , et al. Volatile fatty acids (VFAs) production from swine manure through short-term dry anaerobic digestion and its separation from nitrogen and phosphorus resources in the digestate[J]. Water Research, 2016,90:344-353. doi: 10.1016/j.watres.2015.12.044 pmid: 26766158
[6]	Jiang L, Liu J Y, Zhang C , et al. Synjournal of layered double hydroxides with fermentation liquid of organic waste to extract short-chain fatty acids as a biodenitrification carbon source[J]. ACS Sustainable Chemistry & Engineering, 2017,5:9095-9101.
[7]	Liu Z P, Ma R Z, Osada M , et al. Synjournal, anion exchange, and delamination of Co-Al layered double hydroxide: assembly of the exfoliated nanosheet/polyanion composite films and magneto optical studies[J]. Journal of the American Chemistry Society, 2006,128:4872-4880. doi: 10.1021/ja0584471 pmid: 16594724
[8]	Shen D S, Yin J, Yu X Q , et al. Acidogenic fermentation characteristics of different types of protein-rich substrates in food waste to produce volatile fatty acids[J]. Bioresource Technology, 2017,227:125-132. doi: 10.1016/j.biortech.2016.12.048 pmid: 28013128
[9]	李延伟, 梁晓丽, 姚金环 , 等. Ni/Al-LDH/MCNTs 原位复合材料的制备与电化学性能[J]. 化工学报, 2014,65(8):3298-3305.
[10]	Abellán G, Coronado E, Martí-Gastaldo C , et al. Interplay between chemical composition and cation ordering in the magnetism of Ni/Fe layered double hydroxides[J]. Inorganic Chemistry, 2013,52:10147-10157. doi: 10.1021/ic401576q pmid: 23961761
[11]	Dai C F, Tian D Y, Li S P , et al. Methotrexate intercalated layered double hydroxides with the mediation of surfactants: mechanism exploration and bioassay study[J]. Materials Science & Engineering C: Materials for Biological Applications, 2015,57:272-278. doi: 10.1016/j.msec.2015.07.040 pmid: 26354264
[12]	Chiang M F, Wu T M . Intercalation of c-PGA in Mg/Al layered double hydroxides: an in situ WAXD and FTIR investigation[J]. Applied Clay Science, 2011,51:330-334. doi: 10.1016/j.clay.2010.12.021
[13]	Zhou Q Q, Chen F F, Wu W , et al. Reactive Orange 5 removal from aqueous solution using hydroxyl ammonium ionic liquids/layered double hydroxides intercalation composites[J]. Chemical Engineering Journal, 2016,285:198-206.
[14]	Kim I Y, Lee J M, Kim T W , et al. A strong electronic coupling between graphene nanosheets and layered titanate nanoplates: a soft-chemical route to highly porous nanocomposites with improved photocatalytic activity[J]. Small, 2012,8(7):1038-1048. doi: 10.1002/smll.201101703 pmid: 22323425
[15]	Manohara G V, Kamath P V, Milius W . Reversible hydration and aqueous exfoliation of the acetate-intercalated layered double hydroxide of Ni and Al: observation of an ordered interstratified phase[J]. Journal of Solid State Chemistry, 2012,196:356-361.
[16]	Liu J Y, Duan C, Zhou J Z , et al. Adsorption of bacteria onto layered double hydroxide particles to form biogranule-like aggregates[J]. Applied Clay Science, 2013,76:39-45.
[17]	Wang X R, Wu P X, Huang Z J , et al. Solar photocatalytic degradation of methylene blue by mixed metal oxide catalysts derived from ZnAlTi layered double hydroxides[J]. Applied Clay Science, 2014,95:95-103. doi: 10.1016/j.clay.2014.03.016
[18]	Wang Y, Zhang D . Layered double hydroxides as a nanocontainer for encapsulating marine natural product antifoulant: intercalation and tunable controlled release of cinnamate[J]. Materials Research Bulletin, 2015,63:205-210.
[19]	Saiah F B D, Su B L, Bettahar N . Nickel-iron layered double hydroxide (LDH): textural properties upon hydrothermal treatments and application on dye sorption[J]. Journal of Hazardous Materials, 2009,165:206-217. doi: 10.1016/j.jhazmat.2008.09.125 pmid: 19155131
[20]	Abell S, Medina F, Tichit D , et al. Aldol condensations over reconstructed Mg-Al hydrotalcites: structure-activity relationships related to the rehydration method[J]. Chemistry: A European Journal, 2005,11:728-739. doi: 10.1002/chem.200400409 pmid: 15584078
