局域表面等离子体增强锗的光电响应特性

doi:10.12066/j.issn.1007-2861.1816

Abstract

Abstract:

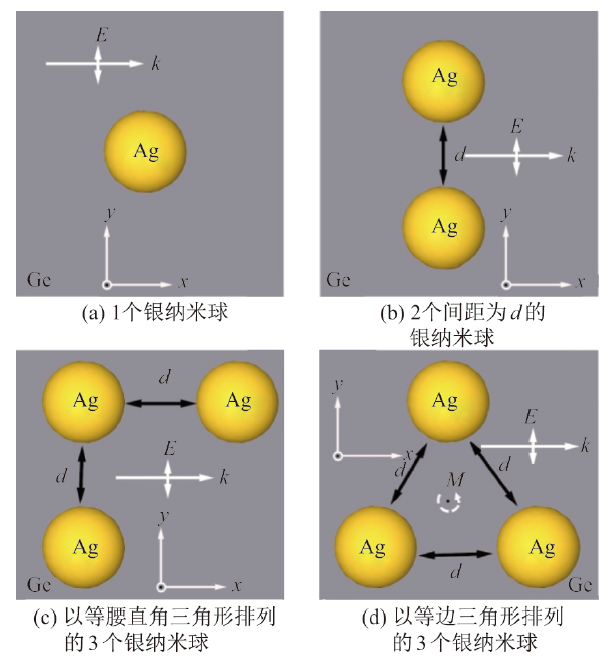

Local surface plasmon resonance (LSPR) is attracting much attention in nano-optoelectronics because of the unique photo response. Ge is an essential microelectronic material. But its photoelectric response is weak in the near-infrared region. Combination of the local surface plasmon and Ge can improve photoelectric response of Ge. The local surface plasmon resonance properties in Ge consisting of one, two and three silver nanoparticles cluster embedded in the Ge bulk are investigated using a finite difference time domain (FDTD) method. The extinction cross sections of one, two, and three silver nanoparticles are discussed in detail. The results show that the composite structure can effectively enhance extinction of Ge in a wide-range from visible to near-infrared. Moreover, the clusters show new types of photo responses as compared with single silver nanoparticle. The results also suggest that photo responses determined by local surface plasmon resonance depend strongly on conditions such as polarization directions of incident light, number of particles, size of single particle, and gap distances. This study is of significance for Ge applications and utilization of local surface plasmon resonance in optoelectronics.

Key words: optoelectronics, local surface plasmon resonance (LSPR), finite difference time domain (FDTD) method, silver nanoparticle, extinction cross section

CLC Number:

O436.2

QI Gongmin, DI Zengfeng, REN Wei. Photoelectric-response enhancement of local surface plasmon in Ge[J]. Journal of Shanghai University（Natural Science Edition）, 2018, 24(2): 207-216.

Figures/Tables 7

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

References 33

[1]	Nie S, Enmory S R. Probing single molecules and single nanoparticles by surface-enhanced[J]. Science, 1997,275(5303):1102-1106. pmid: 9027306
[2]	Warnes W L, Dereux A, Bobesen T W. Surface plasmon subwavelength optics[J]. Nature, 2003,424(6950):824-830. pmid: 12917696
[3]	Ma Y W, Wu Z W, Zhang L H, et al. Theoretical study of the local surface plasmon resonance properties of silver nanosphere clusters[J]. Plasmonics, 2013,8(3):1351-1360. doi: 10.1007/s11468-013-9541-y
[4]	Maier S A. Plasmonics: fundamentals and application[M]. New York: Springer, 2007.
[5]	Miller O D, Hsu C W, Reid M T H, et al. Fundamental limits to extinction by metallic nanoparticles [J]. Physical Review Letters, 2014, 112(12): 123903(1)-123903(5). pmid: 32639822
[6]	Kelly K L, Coronado E, Zhao L L, et al. The optical properties of metal nanoparticles: the influence of size, shape, and dielectric environment[J]. The Journal of Physical Chemistry B, 2003,107(3):668-677.
[7]	Shuford K L, Ratner M A, Schatz G C. Multipolar excitation in triangular nanoprisms [J]. The Journal of Chemical Physics , 2005, 123(11): 114713(1)-114713(9). pmid: 32640809
[8]	An K, Wei G, Qi G, et al. Stability improvement of C$_8$ H$_2$ and C$_{10}$ H$_2$ embedded in poly (vinyl alcohol) films with adsorption on gold nanoparticles[J]. Chemical Physics Letters, 2015,637:71-76.
[9]	Xu T N, Hu L, Jin S Q, et al. Photon energy conversion via localized surface plasmons in ZnO/Ag/ZnO nanostructures[J]. Applied Surface Science, 2012,258(15):5886-5891.
[10]	Liang Q, Yu W, Zhao W, et al. Numerical study of the meta-nanopyramid array as efficient solar energy absorber[J]. Optical Materials Express, 2013,3(8):1187-1196.
[11]	Cao S, Yu W, Wang T, et al. Two-dimensional subwavelength meta-nanopillar array for efficient visible light absorption [J]. Applied Physics Letters, 2013, 102(16): 161109(1)-161109(4). doi: 10.1063/1.4803444 pmid: 23696693
[12]	Schaadt D M, Feng B, Yu E T. Enhanced semiconductor optical absorption via surface plasmon excitation in metal nanoparticles [J]. Applied Physics Letters, 2005, 86(6): 063106(1)-063106(3).
[13]	Chen J, Wang D, Xi J, et al. Immuno gold nanocages with tailored optical properties for targeted photothermal destruction of cancer cells[J]. Nano Letters, 2007,7(5):1318-1322. pmid: 17430005
[14]	Hu M, Chen J, Li Z Y, et al. Gold nanostructures: engineering their plasmonic properties for biomedical applications[J]. Chemical Society Reviews, 2006,35(11):1084-1094. doi: 10.1039/b517615h pmid: 17057837
[15]	Lassiter J B, Aizpurua J, Hernandez L I, et al. Close encounters between two nanoshells[J]. Nano Letters, 2008,8(4):1212-1218. doi: 10.1021/nl080271o pmid: 18345644
[16]	Aubry A, Lei D Y, Maier S A, et al. Interaction between plasmonic nanoparticles revisited with transformation optics [J]. Physical Review Letters, 2010, 105(23): 233901(1)-233901(4). pmid: 21231490
[17]	Alaverdyan Y, Sepúlveda B, Eurenius L, et al. Optical antennas based on coupled nanoholes in thin metal films[J]. Nature Physics, 2007,3(12):884-889.
[18]	Wang G, Wang H, Cui Y, et al. Preparation of micro-sized and monodisperse crystalline silver particles used for silicon solar cell electronic paste[J]. Journal of Materials Science: Materials in Electronics, 2014,25(1):487-494.
[19]	Zhu J, Wang Y C, Lu Y M. Fluorescence spectra characters of silver-coated gold colloidal nanoshells[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2004,232(2):155-161.
[20]	Diao J J, Qiu F S, Chen G D, et al. Photoluminescence properties study of the Au/Au2S nanoshell[J]. Canadian Journal of Physics, 2002,80(6):707-711. doi: 10.1139/p02-047
[21]	Yee K S. Numerical solution of initial boundary value problems involving Maxwell's equations in isotropic media[J]. IEEE Transactions on Antennas and Propagation, 1966,14(3):302-307. doi: 10.1109/TAP.1966.1138693
[22]	Sullivan D M. Electromagnetic simulation using the FDTD method[M]. New York: John Wiley & Sons, 2013.
[23]	Tumbleston J R, Ko D H, Samulski E T, et al. Electrophotonic enhancement of bulk heterojunction organic solar cells through photonic crystal photoactive layer [J]. Applied Physics Letters, 2009, 94(4): 043305(1)-043305(3).
[24]	Hirigoyen F, Crocherie A, Vaillant J M, et al. FDTD-based optical simulations method-ology for CMOS image sensors pixels architecture and process optimization[C]//Electronic Imaging International Society for Optics and Photonics. 2008: 681609(1)-681609(12).
[25]	Chan D L C, Soljačić M, Joannopoulos J D. Thermal emission and design in 2D-periodic metallic photonic crystal slabs[J]. Optics Express, 2006,14(19):8785-8796. doi: 10.1364/oe.14.008785 pmid: 19529261
[26]	Hou B, Hang Z H, Wen W, et al. Microwave transmission through metallic hole arrays: surface electric field measurements [J]. Applied Physics Letters, 2006, 89(13): 131917(1)-131917(3). doi: 10.1063/1.2357553 pmid: 22942436
[27]	Bohren C F. How can a particle absorb more than the light incident on it?[J]. American Journal of Physics, 1983,51(4):323-327.
[28]	Bohren C F, Huffman D R. Absorption and scattering of light by small particles[M]. New York: John Wiley & Sons, 2008: 83-129.
[29]	Maier S A. Plasmonics: fundamentals and applications[M]. Berlin: Springer Science & Business Media, 2007.
[30]	Palik E D. Handbook of optical constants of solids [M]. Berlin: Academic Press, 1998: 351-479.
[31]	Maclean H J. Silver transport in CVD silicon carbide[D]. Boston: Massachusetts Institute of Technology, 2004: 23-77.
[32]	蔡光旭, 蒋昌忠, 任峰, 等. Ag 纳米颗粒的光吸收和透射电镜研究[J]. 武汉大学学报(理学版), 2007,53(5):589-592.
[33]	Atay T, Song J H, Nurmikko A V. Strongly interacting plasmon nanoparticle pairs: from dipole-dipole interaction to conductively coupled regime[J]. Nano Letters, 2004,4(9):1627-1631.
