Journal of Shanghai University(Natural Science Edition) ›› 2018, Vol. 24 ›› Issue (1): 100-107.doi: 10.12066/j.issn.1007-2861.1807
• Research Articles • Previous Articles Next Articles
ZHANG Zhimei, XIONG Hao
Received:
Online:
Published:
Abstract:
Flexural performance of reinforced concrete (RC) beams strengthened with near-surface-mounted pre-stressed carbon fiber reinforced polymer/plastic (CFRP) strips is analyzed using the finite element software ABAQUS. Correctness of the model is shown by simulating five RC beams strengthened with near-surface-mounted pre-stressed CFRP strips and comparing the results with test. Then the finite element model is used for deep analysis of the flexural performance of RC beams. The beams are affected by different factors such as the pre-stress level of CFRP, amount of CFRP reinforcement, and longitudinal reinforcement ratio and concrete strength grade. Results of the analysis show that the pre-stress level of CFRP and the amount of CFRP reinforcement have greater influence on the cracking load of RC beams. The longitudinal reinforcement ratio has greater influence on the bearing capacity of RC beams. Strength grade of the concrete has some influence on the flexural performance of RC beams, but not as obvious as other factors.
Key words: near-surface-mounted, pre-stressed CFRP strip
CLC Number:
TU375.1
ZHANG Zhimei, XIONG Hao. Finite element analysis on flexural performance of RC beams strengthened with pre-stressed near-surface-mounted CFRP strips[J]. Journal of Shanghai University(Natural Science Edition), 2018, 24(1): 100-107.
0 / / Recommend
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks
URL: https://www.journal.shu.edu.cn/EN/10.12066/j.issn.1007-2861.1807
https://www.journal.shu.edu.cn/EN/Y2018/V24/I1/100

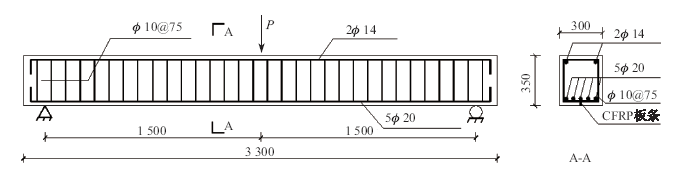

Fig.1
Dimensions and reinforcement details of beams"
"

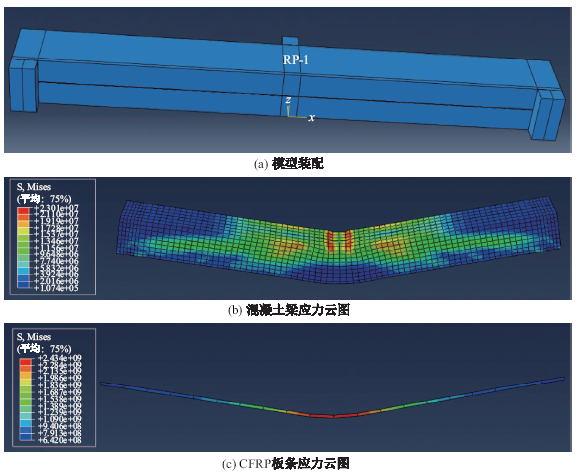

Fig.2
Finite element model"

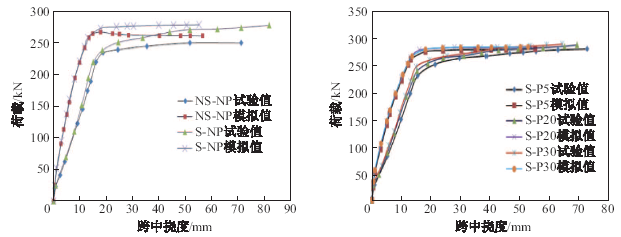

Fig.3
Comparisons of load-midspan deflection between test and finite element simulation"

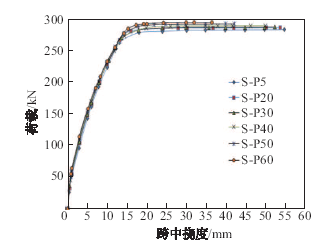

Fig.4
Comparisons of load-midspan deflection under different levels of pre-stressed CFRP"

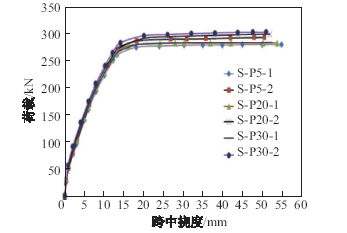

Fig.5
Comparisons of load-midspan deflection under different amount of CFRP reinforcement"

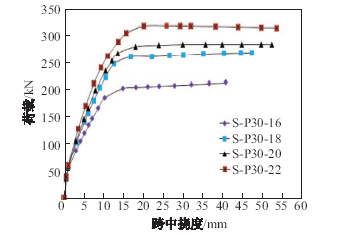

Fig.6
Comparisons of load-midspan deflection under different reinforcement ratio"

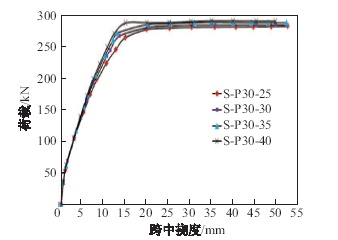

Fig.7
Comparison of load-midspan deflection under different concrete strength grade"
