基于磷钼酸和纳米氧化钼的复合空穴传输层材料及其在有机太阳能电池中的应用

doi:10.12066/j.issn.1007-2861.1804

Abstract

Abstract:

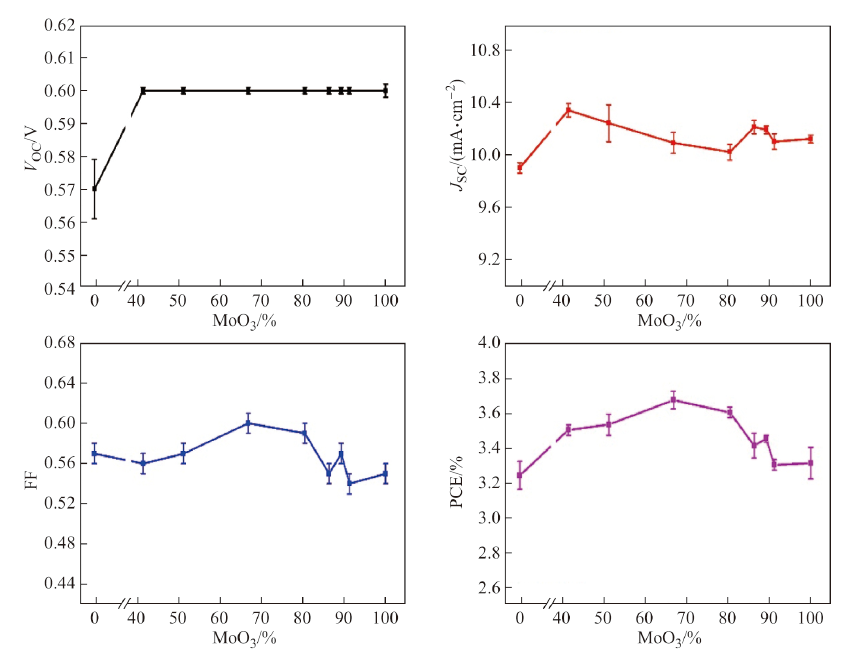

To develop PEDOT:PSS (poly (3,4-ethylendioxythiophene):poly (sodium-p-styrenesulfonate)—hole transporting materials in polymer solar cells, a solution-processable nanocomposite ink based on MoO$_3$ nano-particles and phosphomolybdic acid (PMA) is reported. The PMA:MoO$_3$ composite ink can be easily prepared by simply mixing PMA and MoO$_3$ solutions in different weight ratios. This PMA:MoO$_3$ composite ink shows good wettability on polymer surface. A smooth and homogeneous thin film can be easily deposited on polymer surface via a spin-coating process without any surface treatment. Both open circuit voltage ($V_ {OC}$) and fill factor (FF) of the PMA:MoO$_3$-based P3HT:PC$_{61}$BM cells are higher than that based on PMA or MoO$_3$ cells. Influence of the blend ratio between PMA and MoO3 on solar cell performance was carried out, and the optimized best blend ratio was found to be 1:2 for PMA:MoO$_3$, with which a highest device performance of 3.71% was achieved. The current work demonstrates that nanocomposite of metal oxide and polyoxometalate (POM) can serve as an excellent electrode buffer layer for solution-processed organic electronics.

Key words: organic solar cell, hole transport layer (HTL), nano metal oxide, polyoxometalate (POM), solution processibility

CLC Number:

TK513

WANG Yiling, YI Jinduo, LUO Qun, XIE Zhongming, LI Yanqing, MA Changqi, LUO Liqiang. PMA:MoO$_3$ nanocomposite hole transport layer for organic solar cells[J]. Journal of Shanghai University（Natural Science Edition）, 2018, 24(2): 225-235.

Figures/Tables 8

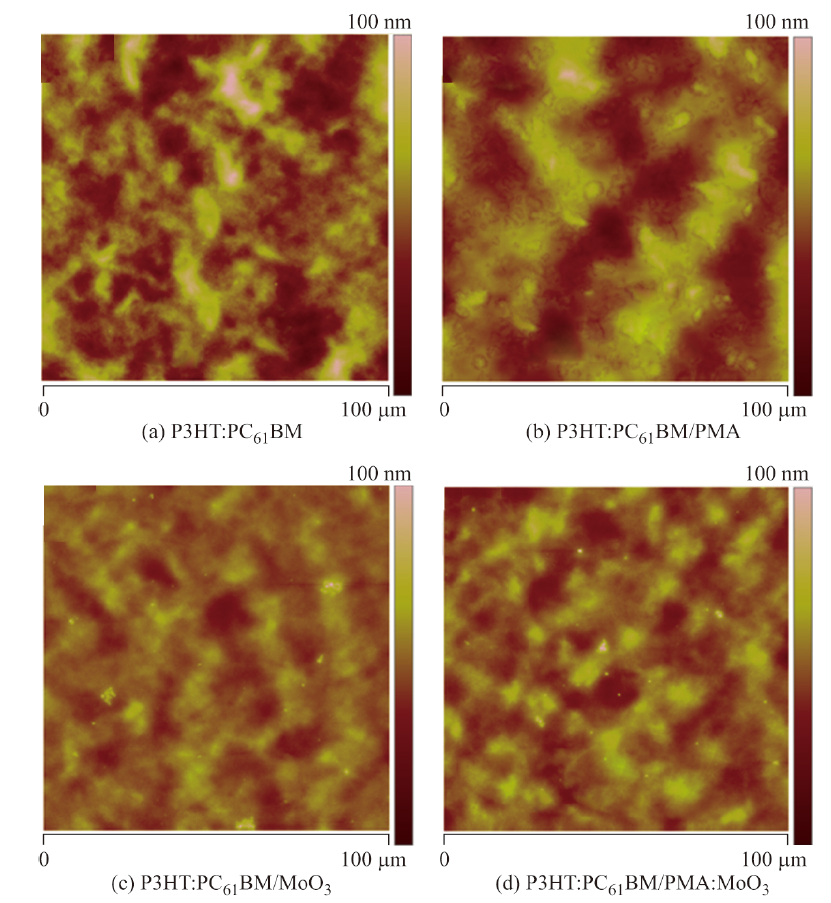

Fig.1

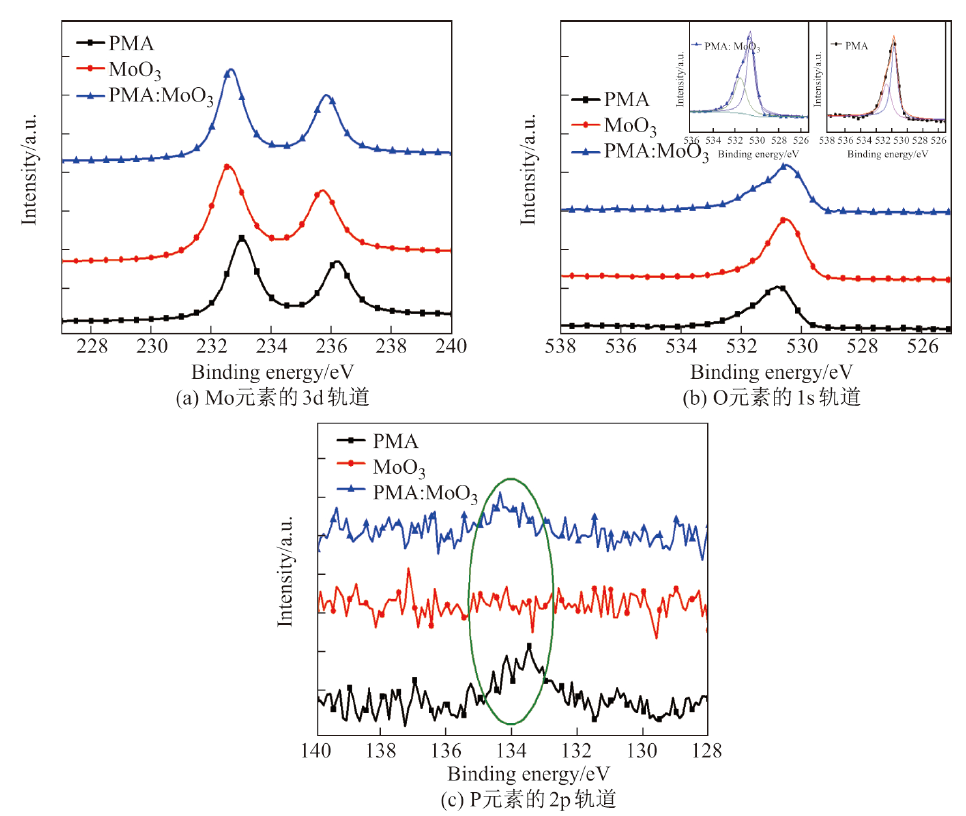

Fig.2

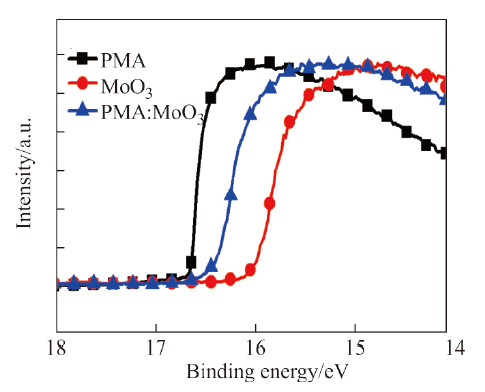

Fig.3

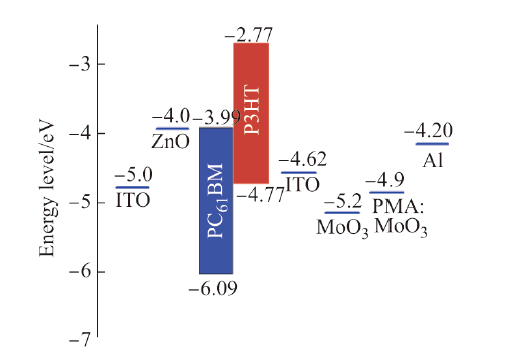

Fig.4

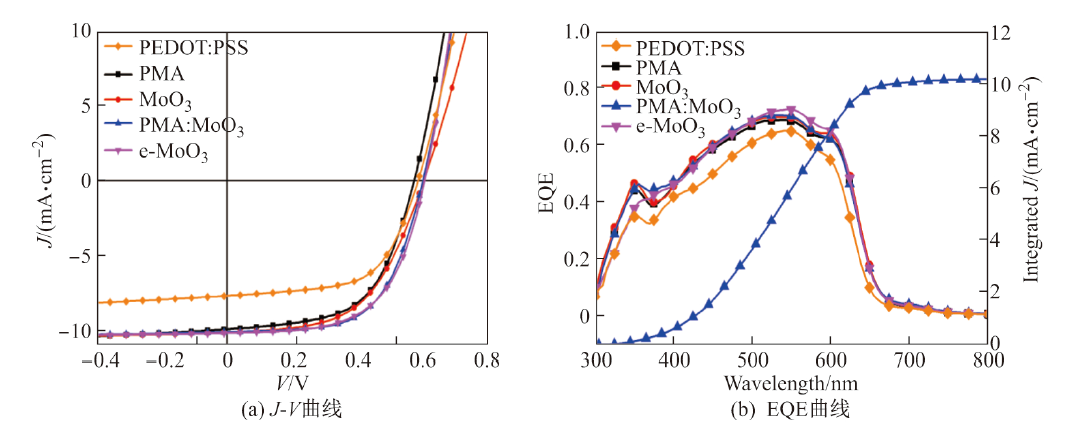

Fig.5

Table 1

Table 2

Fig.6

References 37

[1]	Nielsen T D, Cruickshank C, Foged S, et al. Business, market and intellectual property analysis of polymer solar cells[J]. Solar Energy Materials and Solar Cells, 2010,94(10):1553-1571.
[2]	Lu L, Zheng T, Wu Q, et al. Recent advances in bulk heterojunction polymer solar cells[J]. Chemical Reviews, 2015,115(23):12666-12731. pmid: 26252903
[3]	唐健敏, 史伟民, 王林军, 等. CuPc/CuPc:C$_{60}$/Alq/Al 结构的有机太阳能电池[J]. 上海大学学报(自然科学版), 2010,16(1):38-42.
[4]	Zhao J, Li Y, Yang G, et al. Efficient organic solar cells processed from hydrocarbonsolvents[J]. Nature Energy, 2016,1(2):15027.
[5]	Zhang F, Xu X, Tang W, et al. Recent development of the inverted configuration organic solar cells[J]. Solar Energy Materials and Solar Cells, 2011,95(7):1785-1799.
[6]	Hau S K, Yip H L, Baek N S, et al. Air-stable inverted flexible polymer solar cells using zinc oxide nanoparticles as an electron selective layer[J]. Applied Physics Letters, 2008,92(25):253301.
[7]	Hau S K, Yip H L, Jen A K Y. A review on the development of the inverted polymer solar cell architecture[J]. Polymer Reviews, 2010,50(4):474-510.
[8]	Duan C, Zhang K, Zhong C, et al. Recent advances in water/alcohol-soluble pi-conjugated materials: new materials and growing applications in solar cells[J]. Chemical Society Reviews, 2013,42(23):9071-9104. doi: 10.1039/c3cs60200a pmid: 23995779
[9]	Lu H, Lin J, Wu N, et al. Inkjet printed silver nanowire network as top electrode for semi-transparent organic photovoltaic devices[J]. Applied Physics Letters, 2015,106(9):093302.
[10]	Lim F J, Ananthanarayanan K, Luther J, et al. Influence of a novel fluorosurfactant modified PEDOT:PSS hole transport layer on the performance of inverted organic solar cells[J]. Journal of Materials Chemistry, 2012,22(48):25057-25064.
[11]	Meng Y, Hu Z, Ai N, et al. Improving the stability of bulk heterojunction solar cells by incorporating pH-neutral PEDOT:PSS as the hole transport layer[J]. ACS Applied Materials Interfaces, 2014,6(7):5122-5129. doi: 10.1021/am500336s pmid: 24611433
[12]	Kim J Y, Lee K, Coates N E, et al. Efficient tandem polymer solar cells fabricated by all-solution processing[J]. Science, 2007,317(5835):222-225. doi: 10.1126/science.1141711 pmid: 17626879
[13]	Li S S, Tu K H, Lin C C, et al. Solution-processable graphene oxide as an efficient hole transport layer in polymer solar cells[J]. ACS Nano, 2010,4(6):3169-3174. doi: 10.1021/nn100551j pmid: 20481512
[14]	Manders J R, Tsang S W, Hartel M J, et al. Solution-processed nickel oxide hole transport layers in high efficiency polymer photovoltaic cells[J]. Advanced Functional Materials, 2013,23(23):2993-3001. doi: 10.1002/adfm.201202269
[15]	Xie F, Choy W C H, Wang C, et al. Low-temperature solution-processed hydrogen moly-bdenum and vanadium bronzes for an efficient hole transport layer in organic electronics[J]. Advanced Materials, 2013,25(14):2051-2055. doi: 10.1002/adma.201204425 pmid: 23386363
[16]	叶森云, 刘志伟, 卞祖强, 等. 有机无机杂化太阳能电池中常见无机缓冲材料的研究进展[J]. 化学学报, 2015,73(3):193-201. doi: 10.6023/A14100703
[17]	Cheng F, Fang G, Fan X, et al. Enhancing the short-circuit current and efficiency of organic solar cells using MoO$_{3}$ and CuPc as buffer layers[J]. Solar Energy Materials and Solar Cells, 2011,95(10):2914-2919. doi: 10.1016/j.solmat.2011.06.027
[18]	Li G, Chu C W, Shrotriya V, et al. Efficient inverted polymer solar cells[J]. Applied Physics Letters, 2006,88(25):253503. doi: 10.1063/1.2212270
[19]	Tan Z A, Li L, Cui C, et al. Solution-processed tungsten oxide as an effective anode buffer layer for high-performance polymer solar cells[J]. The Journal of Physical Chemistry C, 2012,116(35):18626-18632. doi: 10.1021/jp304878u
[20]	Irfan I, James T A, Bao Z, et al. Work function recovery of air exposed molybdenum oxide thin films[J]. Applied Physics Letters, 2012,101(9):093305. doi: 10.1063/1.4748978
[21]	Hammond S R, Meyer J, Widjonarko N E, et al. Low-temperature, solution-processed molybdenum oxide hole-collection layer for organic photovoltaics[J]. Journal of MaterialsChemistry, 2012,22(7):3249-3254.
[22]	Murase S, Yang Y. Solution processed MoO$_{3}$ interfacial layer for organic photovoltaics prepared by a facile synjournal method[J]. Advanced Materials, 2012,24(18):2459-2462. doi: 10.1002/adma.201104771 pmid: 22488552
[23]	Jasieniak J J, Seifter J, Jo J, et al. A solution-processed MoO$_x$ anode interlayer for use within organic photovoltaic devices[J]. Advanced Functional Materials, 2012,22(12):2594-2605. doi: 10.1002/adfm.201102622
[24]	Xie F, Choy W C, Wang C, et al. Low-temperature solution-processed hydrogen molybdenum and vanadium bronzes for an efficient hole-transport layer in organic electronics[J]. Advanced Materials, 2013,25(14):2051-2055. pmid: 23386363
[25]	Lee Y J, Yi J, Gao G F, et al. Low-temperature solution-processed molybdenum oxide nanoparticle hole transport layers for organic photovoltaic devices[J]. Advanced EnergyMaterials, 2012,2(10):1193-1197.
[26]	Wong K H, Ananthanarayanan K, Luther J, et al. Origin of hole selectivity and the role of defects in low-temperature solution-processed molybdenum oxide interfacial layer for organic solar cells[J]. The Journal of Physical Chemistry C, 2012,116(31):16346-16351. doi: 10.1021/jp303679y
[27]	Bi L H, Kortz U, Dickman M H, et al. Trilacunary heteropolytungstates functionalized by organometallic ruthenium (Ⅱ), [(RuC$_{6}$H$_{6})_{2}XW_{9}$O$_{34}$]$^{6-}$ ($X$=Si, Ge)[J]. Inorganic Chemistry, 2005,44(21):7485-7493. doi: 10.1021/ic0508627 pmid: 16212374
[28]	Zhu Y, Yuan Z, Cui W, et al. A cost-effective commercial soluble oxide cluster for highly efficient and stable organic solar cells[J]. Journal of Materials Chemistry A, 2014,2(5):1436-1442. doi: 10.1039/c3ta13762g
[29]	Vasilopoulou M, Douvas A M, Palilis L C, et al. Old metal oxide clusters in newapplications: spontaneous reduction of Keggin and Dawson polyoxometalate layers by a metallic electrode for improving efficiency in organic optoelectronics[J]. Journal of the American Chemical Society, 2015,137(21):6844-6856. doi: 10.1021/jacs.5b01889 pmid: 25951374
[30]	Alaaeddine M, Zhu Q, Fichou D, et al. Enhancement of photovoltaic efficiency by insertion of a polyoxometalate layer at the anode of an organic solar cell[J]. Inorganic Chemistry Frontiers, 2014,1(9):682-688.
[31]	向怡弦, 董晓雯, 潘庆谊, 等. 新方法制备三氧化钼-聚苯胺插层复合物[J]. 上海大学学报(自然科学版), 2009,15(4):417-420.
[32]	Chen L, Wang P, Li F, et al. Efficient bulk heterojunction polymer solar cells usingPEDOT/PSS doped with solution-processed MoO$_{3}$ as anode buffer layer[J]. Solar Energy Materials and Solar Cells, 2012,102:66-70.
[33]	Wang Y, Luo Q, Wu N, et al. Solution-processed MoO$_{3}$:PEDOT:PSS hybrid hole transporting layer for inverted polymer solar cells[J]. ACS Applied Materials and Interfaces, 2015,7(13):7170-7179. doi: 10.1021/am509049t pmid: 25794176
[34]	武娜, 骆群, 吴振武, 等. 电极界面缓冲层对P3HT:PC$_{61}$BM太阳能电池热稳定性的影响[J]. 物理化学学报, 2015,31(7):1413-1420.
[35]	Shao S, Liu J, Bergqvist J, et al. In situ formation of MoO$_{3}$ in PEDOT:PSS matrix: a facile way to produce a smooth and less hygroscopic hole transport layer for highly stable polymer bulk heterojunction solar cells[J]. Advanced Energy Materials, 2013,3(3):349-355.
[36]	Liu J, Shao S, Fang G, et al. High-efficiency inverted polymer solar cells with transparent and work-function tunable MoO(3)-Al composite film as cathode buffer layer[J]. Advanced Materials, 2012,24(20):2774-2779. doi: 10.1002/adma.201200238 pmid: 22511394
[37]	Ma H, Yip H L, Huang F, et al. Interface engineering for organic electronics[J]. Advanced Functional Materials, 2010,20(9):1371-1388.
