磁耦合谐振式超导无线输电频率特性

doi:10.12066/j.issn.1007-2861.2320

上海大学学报(自然科学版) ›› 2022, Vol. 28 ›› Issue (2): 324-332.doi: 10.12066/j.issn.1007-2861.2320

磁耦合谐振式超导无线输电频率特性

代朋, 韩淑伦, 周迪帆, 郭艳群, 蔡传兵()

上海大学理学院, 上海 200444

收稿日期:2021-05-25 出版日期:2022-04-30 发布日期:2022-04-28
通讯作者: 蔡传兵 E-mail:cbcai@t.shu.edu.cn
作者简介:蔡传兵(1965--), 男, 教授, 博士生导师, 博士, 研究方向为高温超导材料. E-mail: cbcai@t.shu.edu.cn
基金资助:
国家重点研发计划资助项目(2016YFF0101701);中科院先导专项资助项目(XDB25000000)

Frequency characteristics of magnetic coupling resonance superconducting wireless power transmission

DAI Peng, HAN Shulun, ZHOU Difan, GUO Yanqun, CAI Chuanbing()

College of Sciences, Shanghai University, Shanghai 200444, China

Received:2021-05-25 Online:2022-04-30 Published:2022-04-28
Contact: CAI Chuanbing E-mail:cbcai@t.shu.edu.cn

摘要/Abstract

摘要：

传统无线输电系统在低频条件下的传输效率较低, 限制了其在电动汽车、水下潜艇等低频大功率无线输电场景的应用. 针对此问题, 提出使用高温超导线圈替代铜线圈的解决方案. 通过理论分析和实验验证, 研究了不同工作频率下超导与铜无线输电系统的传输特性. 结果表明, 超导线圈相比于铜线圈具有更低的电阻和更高的品质因数, 在低频条件下超导线圈具有独特优势, 同时证明了在低频工作的无线输电系统中, 使用超导线圈可大幅提升系统的输出功率和传输效率.

关键词: 无线电能传输, 高温超导, 工作频率, 输出功率, 传输效率

Abstract:

Traditional wireless power transmission systems have lowtransmission efficiency under low-frequency conditions, limitingtheir application in low-frequency and high-power wireless powertransmission scenarios, such as electric vehicles and underwatersubmarines. In this study, a solution was developed to solve thisproblem using high-temperature superconducting coils instead ofcopper coils. The transmission characteristics of the wireless powertransmission systems with superconducting and copper coils atdifferent operating frequencies were investigated throughtheoretical analysis and experimental verification. The resultsshowed that the superconducting coils had a lower resistance and ahigher quality factor than the copper coils. In addition, thesuperconducting coils had unique advantages under low-frequencyconditions. It was demonstrated that the use of superconductingcoils in wireless power transmission systems operating at lowfrequencies could significantly improve the output power andtransmission efficiency of the system.

Key words: wireless power transmission, high-temperature superconducting, operating frequency, output power, transfer efficiency

中图分类号:

TM724

代朋, 韩淑伦, 周迪帆, 郭艳群, 蔡传兵. 磁耦合谐振式超导无线输电频率特性[J]. 上海大学学报(自然科学版), 2022, 28(2): 324-332.

DAI Peng, HAN Shulun, ZHOU Difan, GUO Yanqun, CAI Chuanbing. Frequency characteristics of magnetic coupling resonance superconducting wireless power transmission[J]. Journal of Shanghai University（Natural Science Edition）, 2022, 28(2): 324-332.

图/表 9

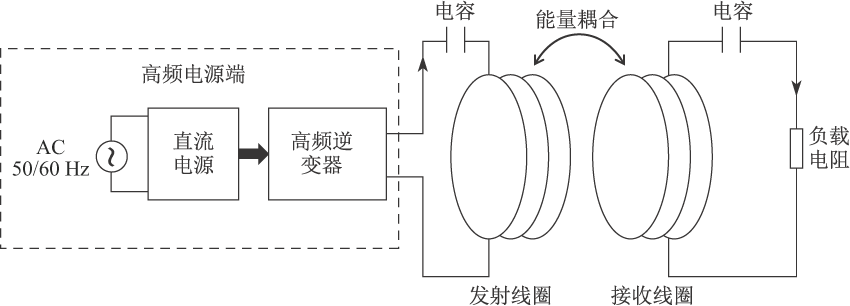

图1

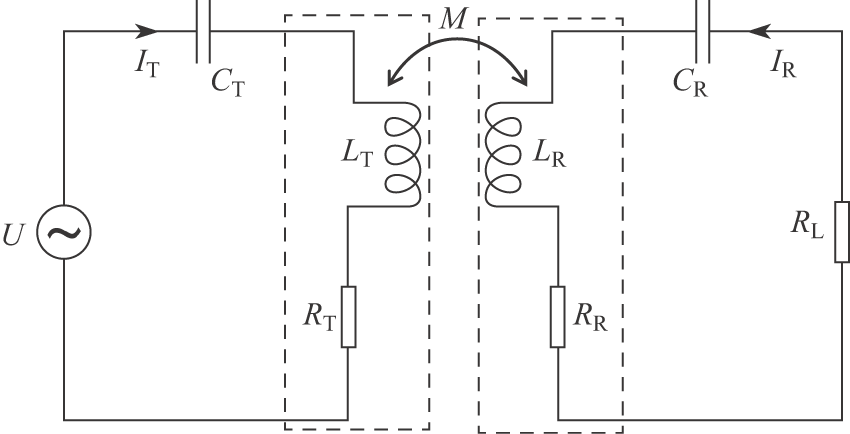

图2

表1

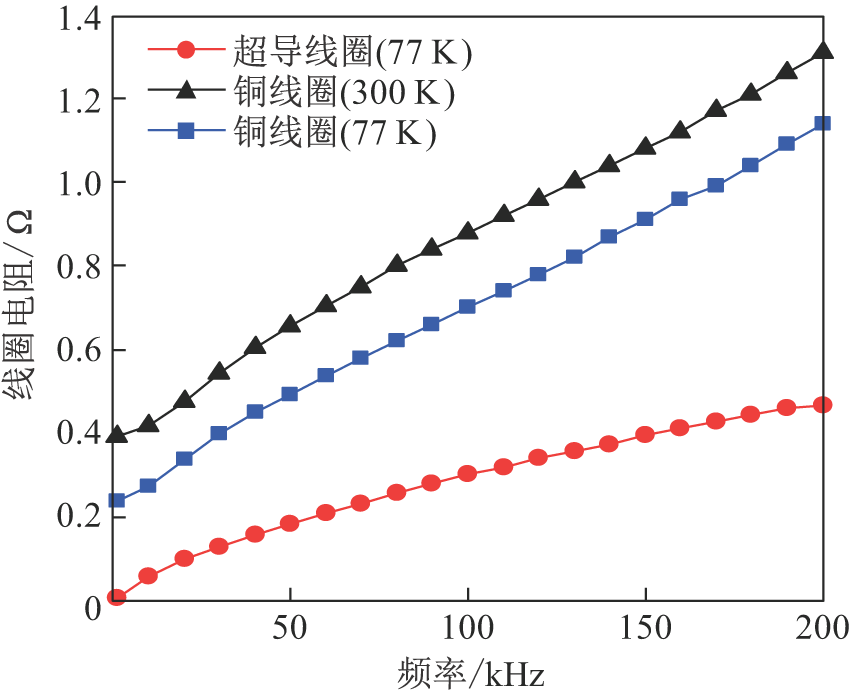

图3

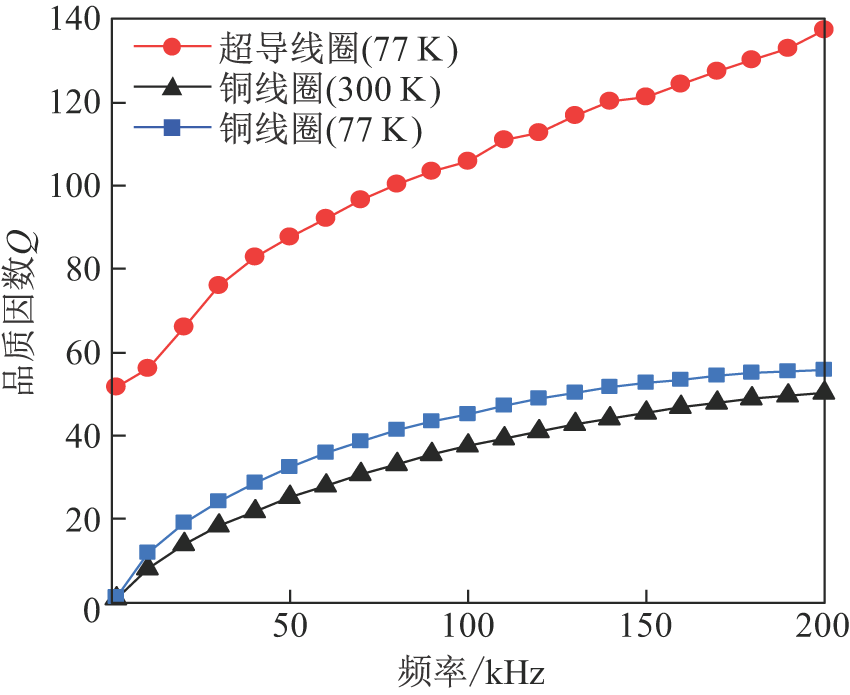

图4

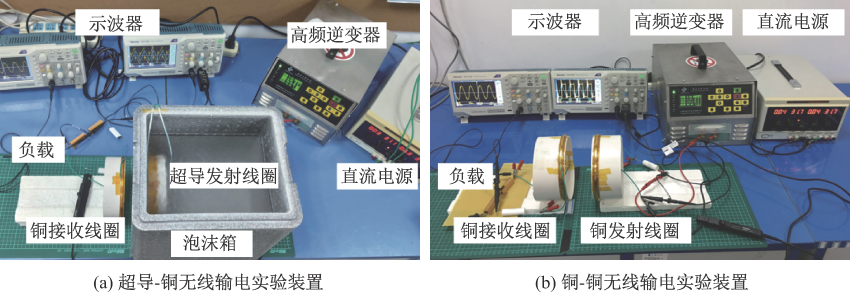

图5

表2

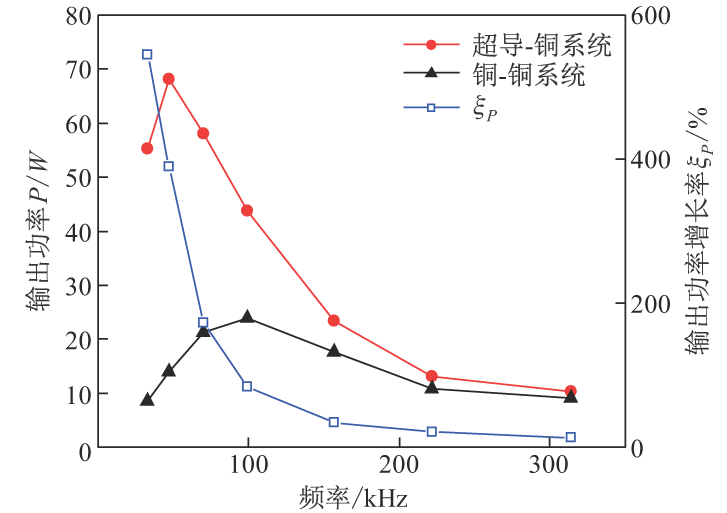

图6

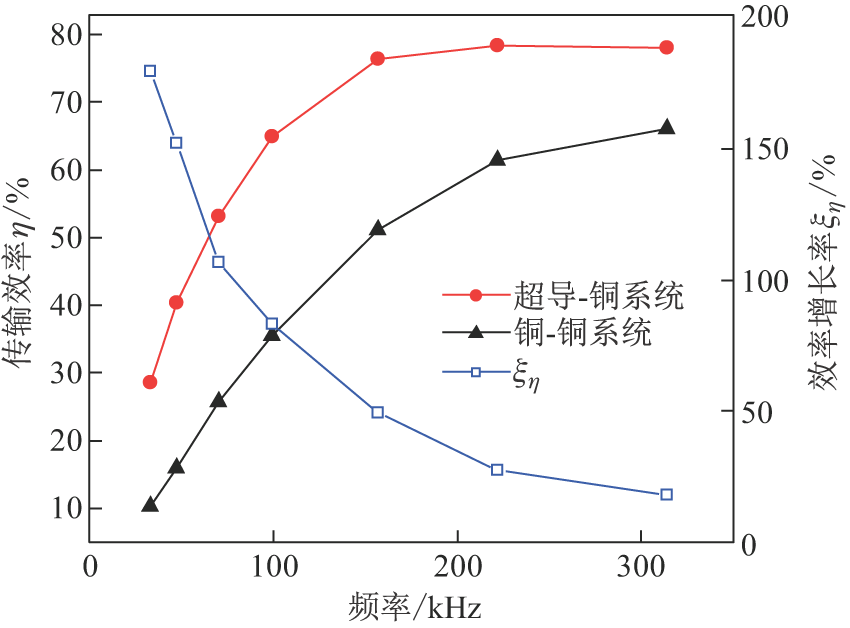

图7

参考文献 14

[1]	Tesla N. Experiments with alternate currents of very high frequency and their application to methods of artificial illumination[J]. Transactions of the American Institute of Electrical Engineers, 1891, 8(1): 266-319.
[2]	Kurs A, Karalis A, Moffatt R, et al. Wireless power transfer via strongly coupled magnetic resonances[J]. Science, 2007, 317(5834): 83-86. doi: 10.1126/science.1143254
[3]	陈文仙, 陈乾宏. 共振式无线电能传输技术的研究进展与应用综述[J]. 电工电能新技术, 2016, 35(9): 35-47.
[4]	Zhou Y, Liu C, Huang Y. Wireless power transfer for implanted medical application: a review[J]. Energies, 2020, 13(11): 2837-2867. doi: 10.3390/en13112837
[5]	Ahmad A, Alam M S, Chabaan R. A comprehensive review of wireless charging technologies for electric vehicles[J]. IEEE Transactions on Transportation Electrification, 2018, 4(1): 38-63. doi: 10.1109/TTE.2017.2771619
[6]	Inoue R, Miyagi D, Tsuda M, et al. High-efficiency transmission of a wireless power transmission system for low-frequency using REBCO double-pancake coils[J]. IEEE Transactions on Applied Superconductivity, 2016, 27(1): 1-6.
[7]	张国民, 余卉, 刘国乐, 等. 超导无线电能传输技术[J]. 南方电网技术, 2015, 9(12): 3-10.
[8]	王秀芳, 王豫, 严仲明, 等. 电工材料在磁耦合谐振式无线传能技术中的应用[J]. 电子元件与材料, 2017, 36(11): 1-11.
[9]	杨晨. 磁耦合谐振式高温超导无线传能仿真与实验研究[D]. 成都: 西南交通大学, 2017.
[10]	盛鑫, 邹谭圆, 阎伟华, 等. 基于高温超导线圈的共振式无线输电研究[J]. 低温与超导, 2019, 47(9): 23-27.
[11]	邹谭圆, 代朋, 盛鑫, 等. 磁耦合谐振式超导无线输电效率分析[J]. 控制与信息技术, 2020(3): 40-44.
[12]	Shen B, Geng J, Zhang X, et al. AC losses in horizontally parallel HTS tapes for possible wireless power transfer applications[J]. Physica C: Superconductivity and its Applications, 2017, 543: 35-40. doi: 10.1016/j.physc.2017.10.003
[13]	Machura P, Zhang H, Kails K, et al. Loss characteristics of superconducting pancake, solenoid and spiral coils for wireless power transfer[J]. Superconductor Science and Technology, 2020, 33(7): 074008. doi: 10.1088/1361-6668/ab931d
[14]	唐治德, 徐阳阳, 赵茂, 等. 耦合谐振式无线电能传输的传输效率最佳频率[J]. 电机与控制学报, 2015, 19(3): 8-13.
