云南宣威肺癌高发区固体燃料燃烧排放颗粒的物理化学特征

doi:10.12066/j.issn.1007-2861.2156

上海大学学报(自然科学版) ›› 2021, Vol. 27 ›› Issue (2): 389-399.doi: 10.12066/j.issn.1007-2861.2156

云南宣威肺癌高发区固体燃料燃烧排放颗粒的物理化学特征

肖凯¹^,², 彭加仙¹, 谢婷婷¹, 曾俊扬¹, 姚传贺¹, Myat Sandar Win¹, 吕森林¹(), 王青躍², Yonemochi Shinich³

1.上海大学环境与化学工程学院, 上海 200444
2.埼玉大学理工学研究科, 埼玉 338-8570, 日本
3.埼玉环境科学国际研究中心, 埼玉 347-0115, 日本

收稿日期:2019-01-25 出版日期:2021-04-30 发布日期:2021-04-27
通讯作者: 吕森林 E-mail:senlinlv@staff.shu.edu.cn
作者简介:吕森林(1966—), 男, 研究员, 博士生导师, 研究方向为环境与健康. E-mail:senlinlv@staff.shu.edu.cn

Physicochemical characterization of ambient particulate matter emitted from solid fuel combustion in high lung cancer incidence areas in Xuanwei, Yunnan

XIAO Kai¹^,², PENG Jiaxian¹, XIE Tingting¹, ZENG Junyang¹, YAO Chuanhe¹, MYAT Sandar Win¹, LÜ Senlin¹(), WANG Qingyao², YONEMOCHI Shinich³

1. School of Environmental and Chemical Engineering, Shanghai University, Shanghai 200444, China
2. School of Science and Engineering, Saitama University, Saitama 338-8570, Japan
3. Center for Environmental Sciences, Saitama 347-0115, Japan

Received:2019-01-25 Online:2021-04-30 Published:2021-04-27
Contact: Lü Senlin E-mail:senlinlv@staff.shu.edu.cn

摘要/Abstract

摘要：

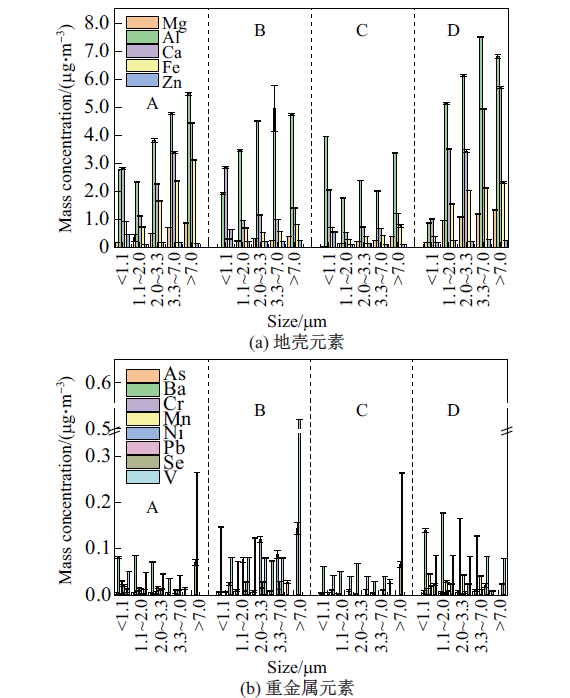

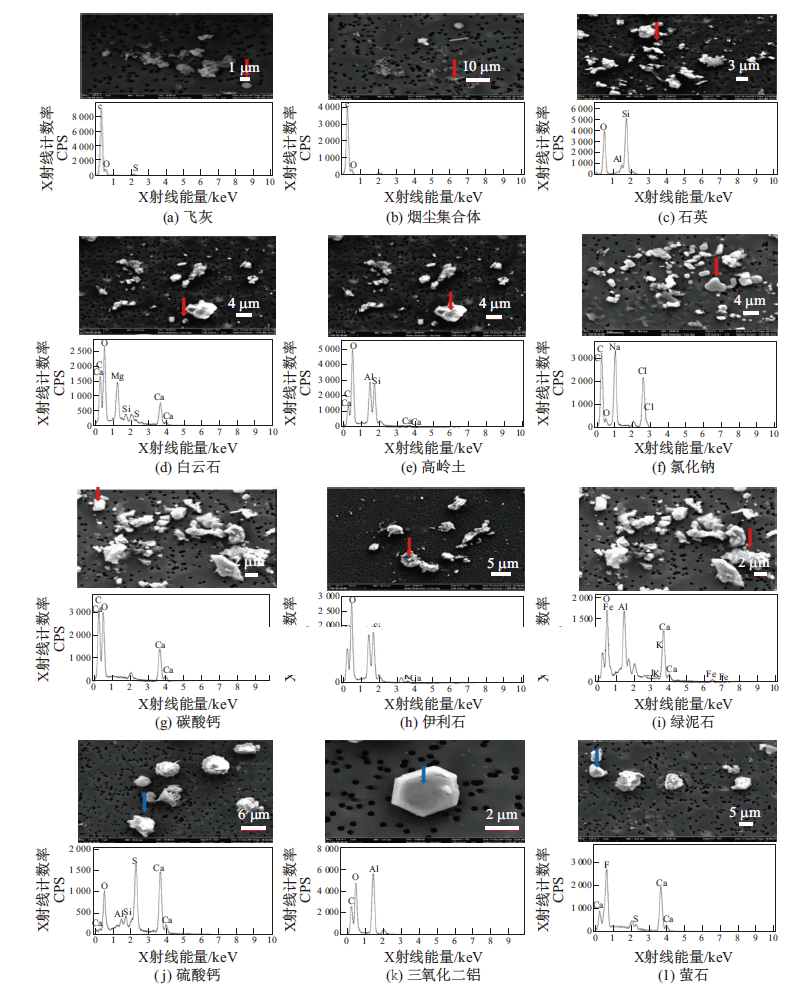

在云南宣威肺癌高发区采集了固体燃料(煤炭、木材)燃烧排放的大气颗粒物样品, 利用扫描电镜(scanning electron microscopy, SEM)、能量色散X射线光谱仪(energy dispersive X-ray spectroscopy, EDX)对796个颗粒物进行了分析. 根据颗粒物的显微特征和化学元素组成, 将其分为矿物颗粒物、飞灰、烟尘集合体和未识别颗粒物4类. 采用$P(X)$值法将矿物颗粒物进一步分为富Si、富S、富Ca、富Fe、富Ti、富Al、富Na和其他8种不同类型, 其中富Si、富Ca、富Fe、富S分别占燃煤颗粒物和生物质颗粒物的44.47%, 20.49%, 8.85%, 1.22%和55.91%, 17.27%, 6.36%, 2.27%. 化学元素分析结果显示: 颗粒物中Al, Fe, Ca, Mg等地壳元素的质量浓度较高, 重金属化学元素的质量浓度较低; 煤炭燃烧排放的颗粒物的化学元素分析结果与单颗粒分析结果之间存在较好的正相关关系($R^{2}=0.63$).

关键词: 肺癌, 固体燃料, 扫描电镜, 能量色散X射线光谱仪, $P$($X$)值

Abstract:

Samples of atmospheric particulate matter from solid fuel (coal and wood) combustion were collected in the high lung cancer incidence area of Xuanwei, Yunnan, and 796 particles emitted by combustion were analysed by scanning electron microscopy (SEM) with energy dispersive X-ray spectroscopy (EDX). According to the microscopic characteristics and chemical element compositions of the particles, the particles were divided into four categories, namely mineral particles, fly ash, soot aggregates, and unidentified particles. The $P$(X) method was used to further classify the mineral particles into eight different types, namely Si-rich, S-rich, Ca-rich, Fe-rich, Ti-rich, Al-rich, Na-rich, and others. The percentages of Si-rich, Ca-rich, Fe-rich, and S-rich particles in coal-fired particulate matter and combustion biomass particles accounted for 44.47%, 20.49%, 8.85%, 1.22% and 55.91%, 17.27%, 6.36%, 2.27%, respectively. The chemical analysis results showed that the mass concentrations of the crustal elements Al, Fe, Ca, and Mg in the particles were relatively high, and the mass concentrations of heavy metal elements were relatively low. There was a positive correlation ($R^{2}=0.63$) between the results of the chemical analysis of particulate matter emitted from coal combustion and the results of single particle analysis.

Key words: lung cancer, solid fuel, scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDX), $P$($X$) value

中图分类号:

X503

肖凯, 彭加仙, 谢婷婷, 曾俊扬, 姚传贺, Myat Sandar Win, 吕森林, 王青躍, Yonemochi Shinich. 云南宣威肺癌高发区固体燃料燃烧排放颗粒的物理化学特征[J]. 上海大学学报(自然科学版), 2021, 27(2): 389-399.

XIAO Kai, PENG Jiaxian, XIE Tingting, ZENG Junyang, YAO Chuanhe, MYAT Sandar Win, LÜ Senlin, WANG Qingyao, YONEMOCHI Shinich. Physicochemical characterization of ambient particulate matter emitted from solid fuel combustion in high lung cancer incidence areas in Xuanwei, Yunnan[J]. Journal of Shanghai University（Natural Science Edition）, 2021, 27(2): 389-399.

图/表 6

图1

图2

表1

表2

图3

表3

参考文献 28

[1]	World Health Organization. Air quality guidelines: global update 2005. Particulate matter, ozone, nitrogen dioxide and sulfur dioxide[J]. Indian Journal of Medical Research, 2007,4(4):492-493.
[2]	He X, Chapman R S, Yang R, et al. Lung cancer and indoor air pollution in Xuanwei, China: current progress[J]. Science, 1987,235(4785):217-220. doi: 10.1126/science.3798109 pmid: 3798109
[3]	Mumford J L, Chapman R S, Harris D B, et al. Indoor air exposure to coal and wood combustion emissions associated with a high lung cancer rate in Xuanwei, China[J]. Environment International, 1989,15(1):315-320.
[4]	He X Z, Chen W, Liu Z Y, et al. An epidemiological study of lung cancer in Xuanwei county, China: current progress. Case-control study on lung cancer and cooking fuel[J]. Environmental Health Perspectives, 1991,94:9-13. pmid: 1954946
[5]	Lan Q, Feng Z, Tian D, et al. p53 Gene expression in relation toindoor exposure to unvented coal smoke in Xuanwei, China[J]. Journal of Occupational and Environmental Medicine, 2001,43(3):226-230. pmid: 11285870
[6]	Lan Q, Mumford J L, Shen M, et al. Oxidative damage-related genes AKR1C3 and 0GG1 modulate risks for lung cancer due to exposure to PAH-rich coal combustion emissions[J]. Carcinogenesis, 2004,25(11):2177-2181. doi: 10.1093/carcin/bgh240 pmid: 15284179
[7]	Lan Q, He X, Shen M, et al. Variation in lung cancer risk by smoky coal subtype in Xuanwei, China[J]. International Journal of Cancer, 2008,123(9):2164-2169. pmid: 18712724
[8]	Tian L W. Coal combustion emissions and lung cancer in Xuanwei, China[D]. Berkeley: University of California, 2005.
[9]	Tian L, Dai S, Wang J, et al. Nanoquartz in late permian C1 coal and the high incidence of female lung cancer in the Pearl River origin area: a retrospective cohort study[J]. BMC Public Health, 2009,8(1):398.
[10]	吕俊岗. 宣威、富源肺癌高发区多环芳烃、重金属污染现状及相关研究[D]. 北京: 中国科学院大学, 2009.
	Lü J G. Primary investigation of the pollution status of PAHs, heavy metals in the area with high lung cancer incidence in Xuanwei and Fuyuan[D]. Beijing: University of Chinese Academy of Sciences, 2009.
[11]	吕俊岗, 张霖琳, 许人骥, 等. 云南省宣威市和富源县空气和土壤中多环芳烃污染水平研究[J]. 中国环境监测, 2010,26(3):1-6.
	Lü J G, Zhang L L, Xu R J, et al. Assessment of polycyclic aromatic hydrocarbons (PAHs) level in Xuanwei and Fuyuan, Yunnan Province[J]. Environmental Monitoring in China, 2010,26(3):1-6.
[12]	Dai S, Tian L, Chou C L, et al. Mineralogical and compositional characteristics of late permian coals from an area of high lung cancer rate in Xuanwei, Yunnan, China: occurrence and origin of quartz and chamosite[J]. International Journal of Coal Geology, 2008,76(4):318-327.
[13]	Lü S L, Yi F, Hao X J, et al. Physicochemical properties and ability to generate free radicals of ambient coarse, fine, and ultrafine particles in the atmosphere of Xuanwei, China, an area of high lung cancer incidence[J]. Atmospheric Environment, 2014,97:519-528.
[14]	吕森林, 邵龙义. 北京市可吸入颗粒物 (PM10) 中单颗粒的矿物组成特征[J]. 岩石矿物学杂志, 2003,22(S1):421-424.
	Lü S L, Shao Y L. Mineral compositions of individual particulates in PM10 over Beijing[J]. Acta Petrologica Et Mineralogica, 2003,22(S1):421-424.
[15]	Downward G S, Hu W, Rothman N, et al. Quartz in ash, and air in a high lung cancer incidence area in China[J]. Environmental Pollution, 2016,221:318. pmid: 27939206
[16]	Chen G, Sun X, Ren H, et al. The mortality patterns of lung cancer between 1990 and 2013 in Xuanwei, China[J]. Lung Cancer, 2015,90(2):155-160. doi: 10.1016/j.lungcan.2015.08.006 pmid: 26314615
[17]	毛承毅. 初步探讨二氧化硅与云南宣威肺癌高发的关系[D]. 昆明: 昆明医学院, 2011.
	Mao C Y. Preliminary study on the relationship between the high incidence of lung cancer in Xuanwei country of Yunnan Province and silica[D]. Kunming: Kunming Medical College, 2011.
[18]	陈小波, 毛承毅, 李光剑, 等. 金属元素及 SiO$_2$ 与云南宣威地区肺癌高发的关系[J]. 现代肿瘤医学, 2015(20):2926-2929.
	Chen X B, Mao C Y, Li G J, et al. The relationship between the high incidence of lung cancer in Xuanwei county of Yunnan Province and silicon dioxide and metal elements[J]. Journal of Modern Oncology, 2015(20):2926-2929.
[19]	郝晓洁, 易飞, 任晶晶, 等. 云南宣威地区燃煤排放颗粒物中石英矿物的特征[J]. 环境科学研究, 2013,26(10):1043-1049.
	Hao X J, Yi F, Ren J J, et al. Characteristics of the fine quartz particles from the local coal combustion in Xuanwei, Yunnan Province[J]. Research of Environmental Sciences, 2013,26(10):1043-1049.
[20]	邵龙义, 王文华, 幸娇萍, 等. 大气颗粒物理化特征和影响效应的研究进展及展望[J]. 地球科学, 2018,43(5):1691-1708.
	Shao Y L, Wang W H, Xing J P. Physicochemical characteristics and effects of airborne particles: research progress and prospects[J]. Journal of China University of Geosciences, 2018,43(5):1691-1708.
[21]	李卫军, 邵龙义, 时宗波, 等. 城市雾天单个矿物颗粒物理和化学特征[J]. 环境科学, 2008(1):253-258.
	Li W J, Shao Y L, Shi Z B, et al. Physical and chemical characteristics of individual mineral particles in an urban fog episode[J]. Chinese Journal of Environmental Science, 2008(1):253-258.
[22]	Fernandes M B, Skjemstad J O, Johnson B B, et al. Characterization of carbonaceous combustion residues. I. Morphological, elemental and spectroscopic features[J]. Chemosphere, 2003,51(8):785-795. pmid: 12668037
[23]	Okada K, Qin Y, Kai K. Elemental composition and mixing properties of atmospheric mineral particles collected in Hohhot, China[J]. Atmospheric Research, 2005,73(1/2):45-67.
[24]	Tian J, Ni H, Cao J, et al. Characteristics of carbonaceous particles from residential coal combustion and agricultural biomass burning in China[J]. Atmospheric Pollution Research, 2017,8(3):521-527.
[25]	Lü S L, Tan Z Y, Liu P W, et al. Single particle aerosol mass spectrometry of coal combustion particles associated with high lung cancer rates in Xuanwei and Fuyuan, China[J]. Chemosphere, 2017,186:278-286. doi: 10.1016/j.chemosphere.2017.07.161 pmid: 28783549
[26]	虎彩娇, 成海容, 李锦伦, 等. 黄石市大气 PM10 和 PM2.5 中元素特征及重金属生态风险评价[J]. 环境化学, 2018,37(1):138-145.
	Hu C J, Cheng H R, Li J L, et al. Characteristics of elements and ecological risk assessment of heavy metals in PM10 and PM2.5 in Huangshi[J]. Environmental Chemistry, 2018,37(1):138-145.
[27]	林海鹏, 武晓燕, 战景明, 等. 兰州市某城区冬夏季大气颗粒物及重金属的污染特征[J]. 中国环境科学, 2012,32(5):810-815.
	Lin H P, Wu X Y, Zhan J M, et al. Analysis of atmospheric particles and heavy metals character at the area of Lanzhou city in summer and winter[J]. China Environmental Science, 2012,32(5):810-815.
[28]	韩君珂. 云南临沧地区煤中微量元素赋存状态研究[D]. 淮南: 安徽理工大学, 2018.
	Han J K. Dissertation in geological resources and geological engineering study on the occurrence of trace elements of coal in Lincang area, Yunnan[D]. Huainan: Anhui University of Science and Technology, 2018.
