摘要：
以金属有机骨架(metal-organic frameworks, MOFs)化合物为前驱体, 通过退火、硫化等后续处理方法成功制备了由 NiFe2O4 纳米棒与 Co9S8 空心球组装而成的杂化纳米结构. 该复合催化剂因具有较大的比表面积以及各组分间强力的协同作用, 在电催化析氧反应(oxygen evolution reaction, OER)中表现出了优异的催化活性. 在 1 mol/L KOH 电解质中, 当电流密度达到 10 mA/cm2 时, 仅需 290 mV 的过电位, 且 Tafel 斜率仅为 63.02 mV/dec. 此外, 1 000 次循环伏安(cyclic voltammetry, CV)测试后仍然具有良好的催化活性, 表明该复合催化剂具有优异的稳定性. 研究成果不仅为设计廉价、高效且稳定的析氧催化剂提供了设计思路, 也为其他新型纳米复合材料的合成和应用奠定了基础.
中图分类号:
王尚岱, 黄守双, 胡张军, 陈志文. 金属有机骨架衍生的 NiFe2O4/Co9S8复合催化剂的合成及其电催化析氧性能[J]. 上海大学学报(自然科学版), 2021, 27(4): 706-716.
WANG Shangdai, HUANG Shoushuang, HU Zhangjun, CHEN Zhiwen. Controlled synthesis of NiFe2O4/Co9S8 nanocomposites derived from metal-organic frameworks as efficient electrocatalysts for oxygen evolution reaction[J]. Journal of Shanghai University（Natural Science Edition）, 2021, 27(4): 706-716.
图1

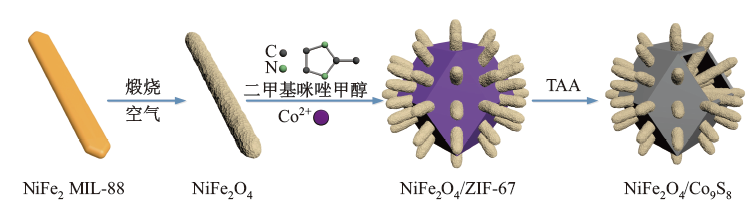

NiFe $_{2}$O$_{4}$/Co$_{9}$S$_{8}$ 的合成流程"
图2

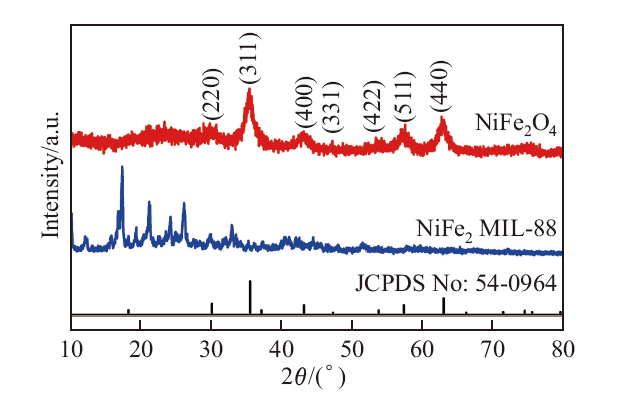

NiFe$_{2}$ MIL-88 和 NiFe$_{2}$O$_{4}$ 的 XRD 衍射图谱"
图3

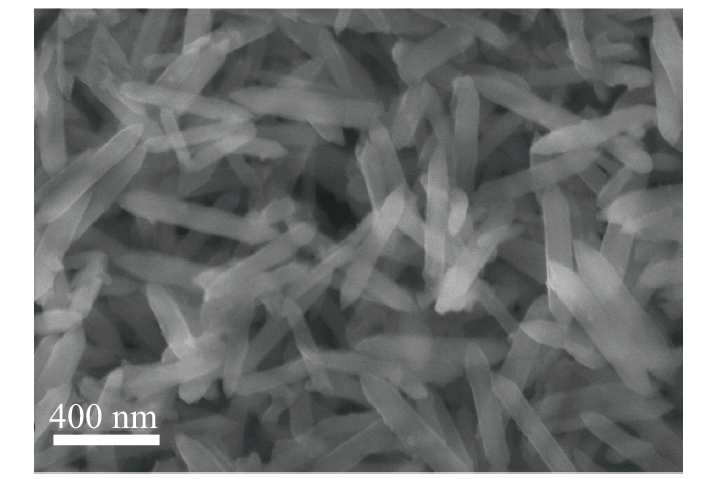

NiFe$_{2}$ MIL-88 的 SEM 图"
图4

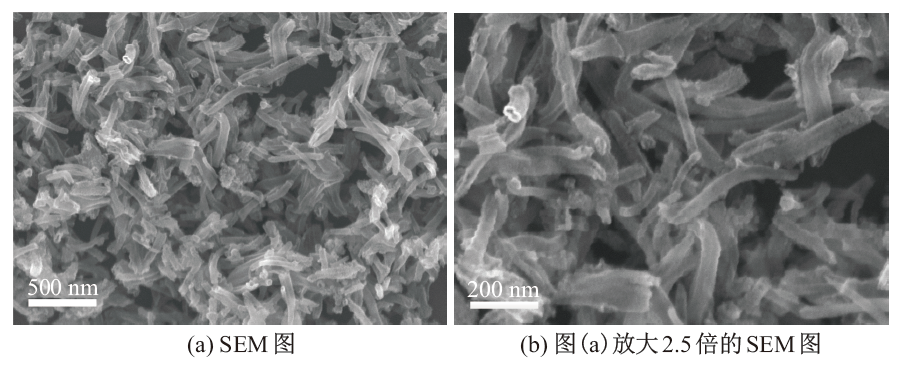

NiFe$_{2}$O$_{4}$的 SEM 图"
图5

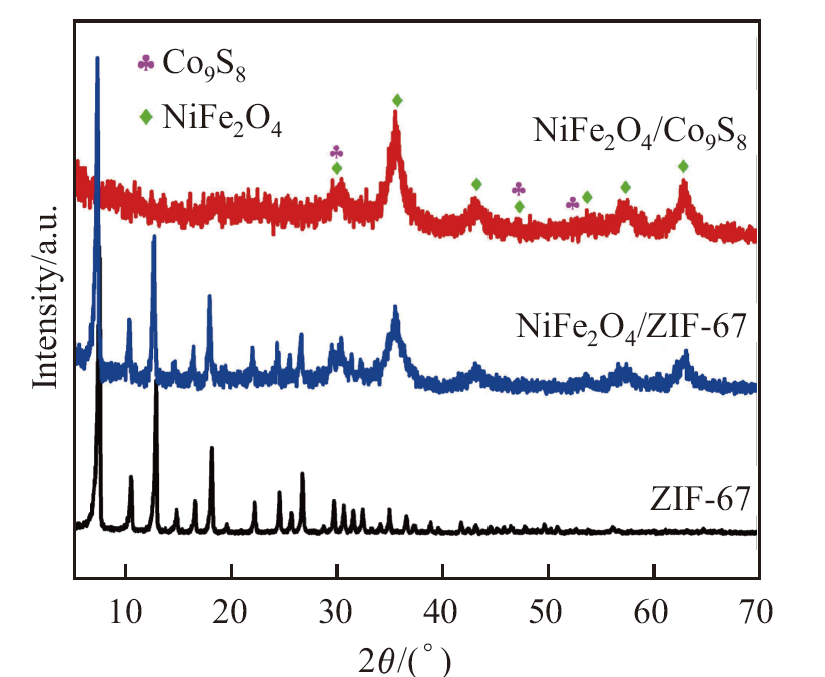

NiFe$_{2}$O$_{4}$/ZIF-67 和 NiFe$_{2}$O$_{4}$/Co$_{9}$S$_{8}$的 XRD 衍射图谱"
图6

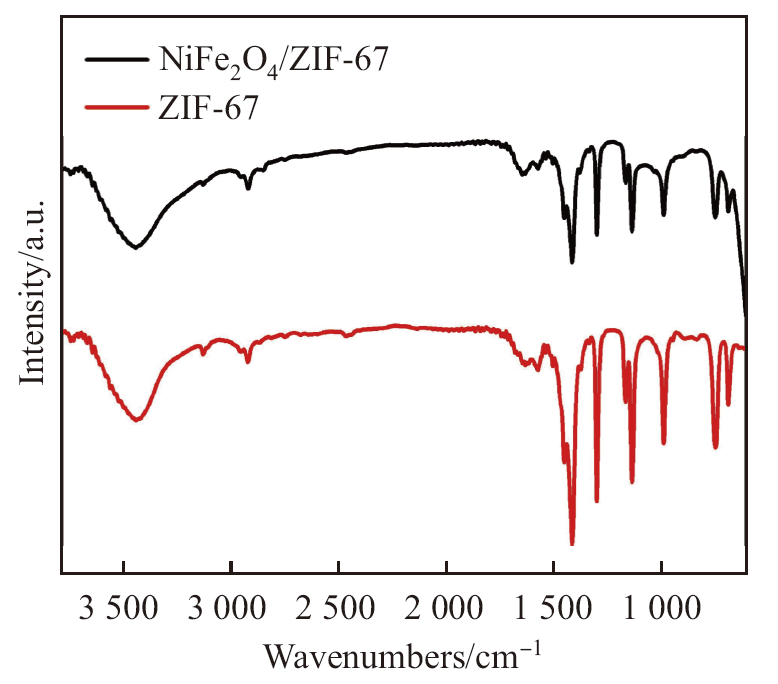

ZIF-67 和 NiFe$_{2}$O$_{4}$/ZIF-67 的 FTIR 图谱"
图7

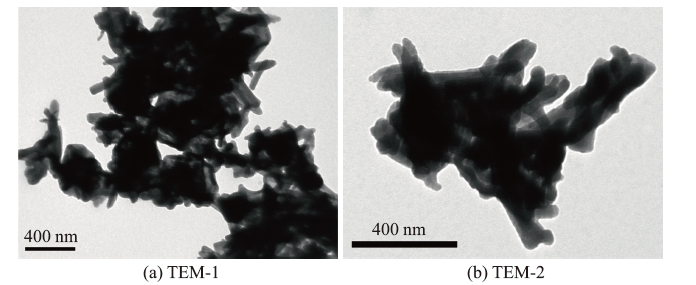

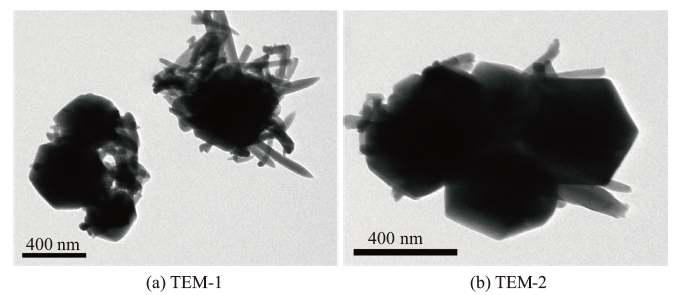

NiFe$_{2}$O$_{4}$/ZIF-67 的 TEM 图"
图8
NiFe$_{2}$O$_{4}${/Co}$_{9}${S}$_{8}$的 TEM 图"
图9

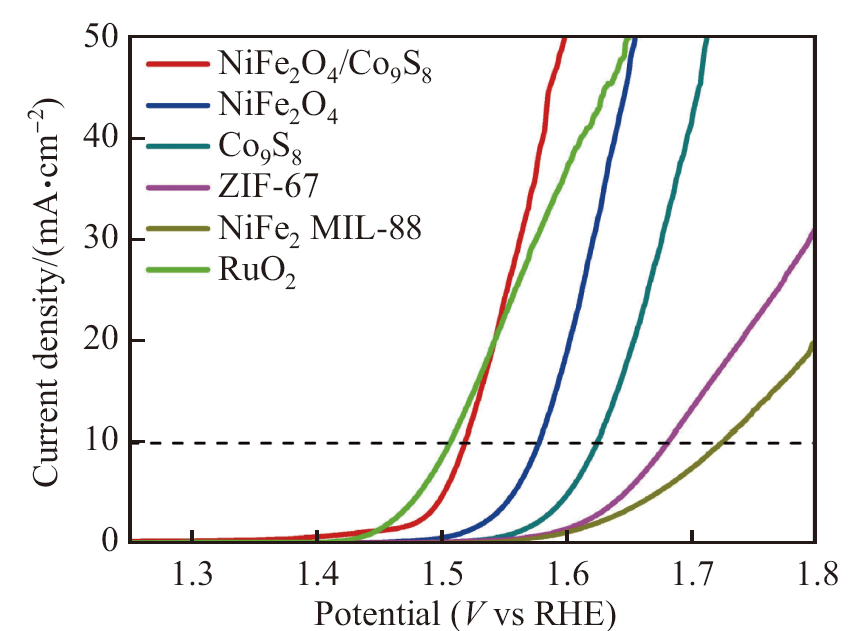

NiFe$_{2}$O$_{4}$/Co$_{9}$S$_{8}$, NiFe$_{2}$O$_{4}$, Co$_{9}${S}$_{8}$, ZIF-67, NiFe$_{2}$ MIL-88 和 RuO$_{2}$ 在 1 mol/L KOH 电解质溶液中的极化曲线"
图10
NiFe$_{2}$O$_{4}${/Co}$_{9}${S}$_{8}$, NiFe$_{2}$O$_{4}$, Co$_{9}$S$_{8}$, RuO$_2$ 对应的 Tafel 斜率"
图11

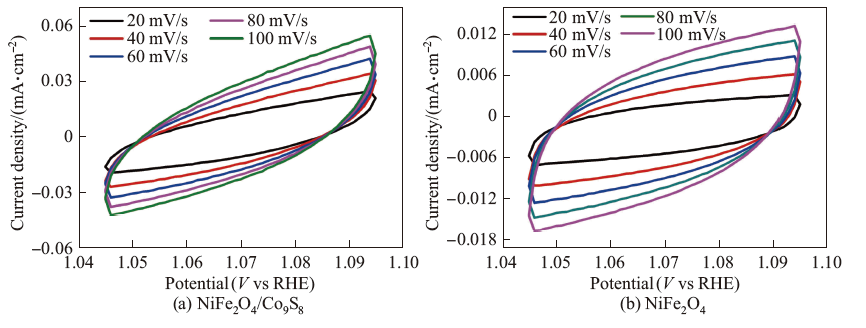

NiFe$_{2}$O$_{4}${/Co}$_{9}${S}$_{8}$ 和 NiFe$_{2}$O$_{4}$ 在不同扫描速率下的 CV 曲线"
图12

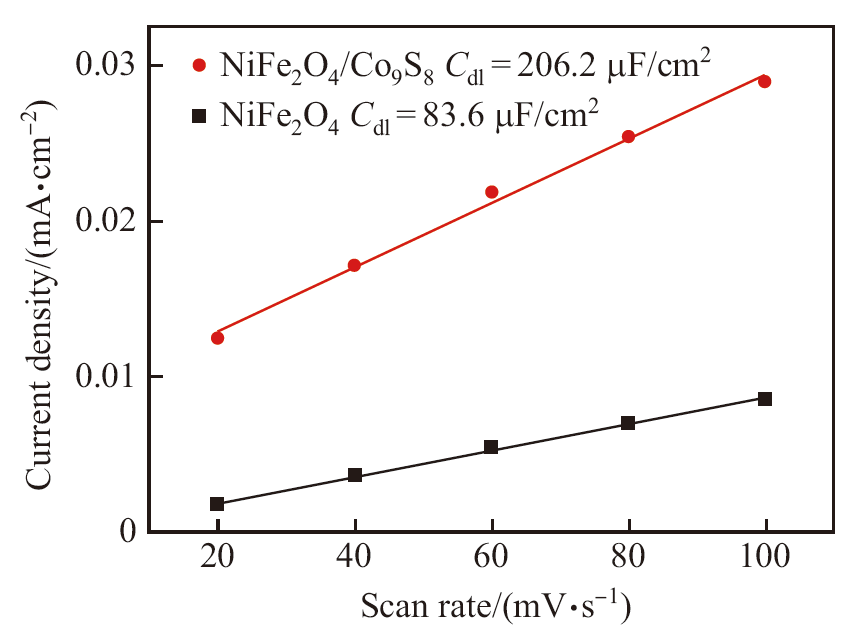

NiFe$_{2}$O$_{4}${/Co}$_{9}${S}$_{8}$和 NiFe$_{2}$O$_{4}$ 的 $C_{dl}$ 值"
图13

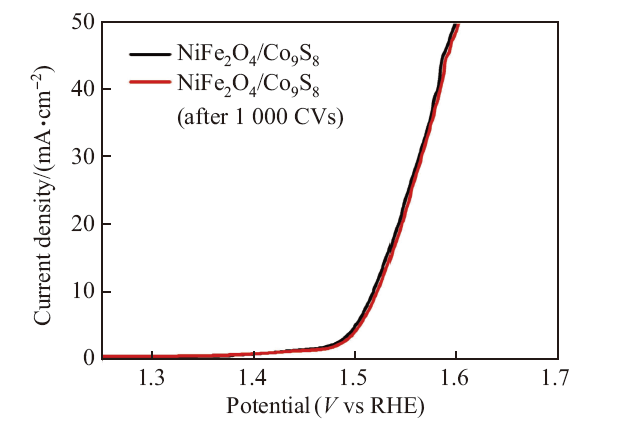

NiFe$_{2}$O$_{4}${/Co}$_{9}${S}$_{8}$的 1 000 次 CV 稳定性测试"
