方钢管混凝土柱-H 型钢梁全螺栓连接节点抗震试验及有限元分析

doi:10.12066/j.issn.1007-2861.2130

上海大学学报(自然科学版) ›› 2021, Vol. 27 ›› Issue (2): 347-359.doi: 10.12066/j.issn.1007-2861.2130

方钢管混凝土柱-H 型钢梁全螺栓连接节点抗震试验及有限元分析

陈靖远, 杨锋(), 丁鑫标, 王培成

上海大学土木工程系, 上海 200444

收稿日期:2019-01-31 出版日期:2021-04-30 发布日期:2021-04-27
通讯作者: 杨锋 E-mail:fyang525@sina.com
作者简介:杨锋(1963—), 男, 副教授, 研究方向为结构工程. E-mail:fyang525@sina.com
基金资助:
上海市科委技术标准专项基金资助项目(13DZ0501700)

Seismic test and finite element analysis of bolted joints connecting concrete-filled square steel tubular column and H-type steel beam

CHEN Jingyuan, YANG Feng(), DING Xinbiao, WANG Peicheng

Department of Civil Engineering, Shanghai University, Shanghai 200444, China

Received:2019-01-31 Online:2021-04-30 Published:2021-04-27
Contact: YANG Feng E-mail:fyang525@sina.com

摘要/Abstract

摘要：

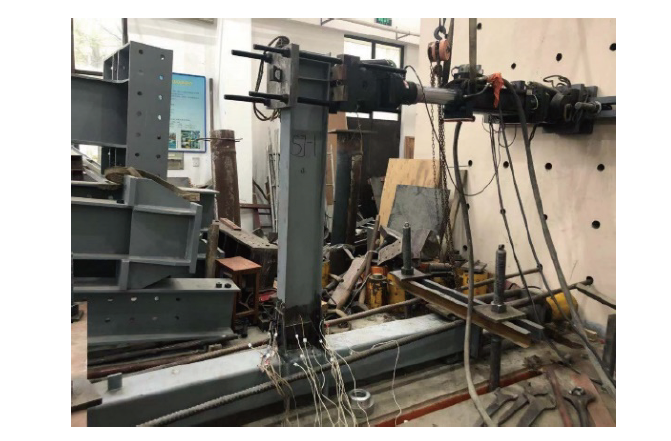

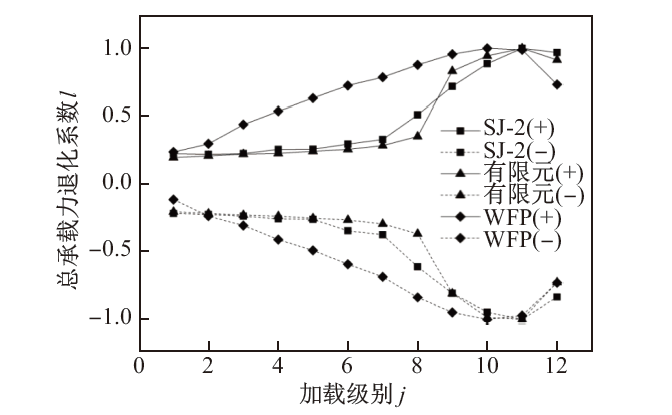

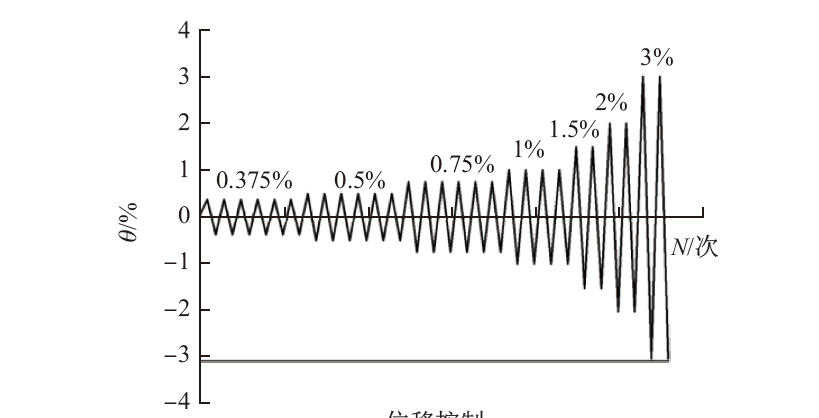

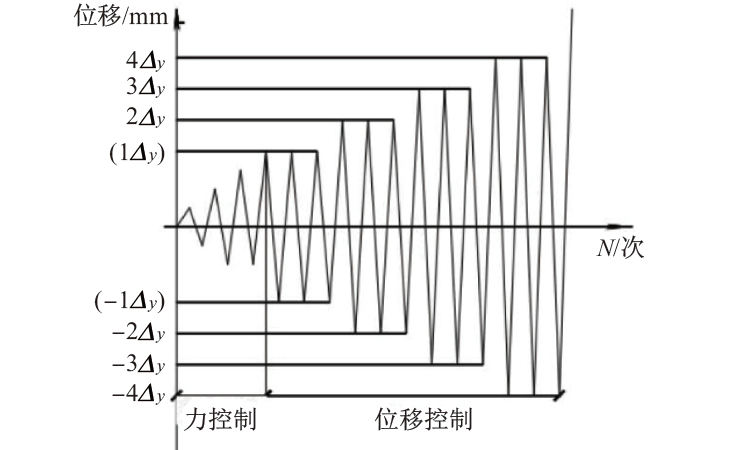

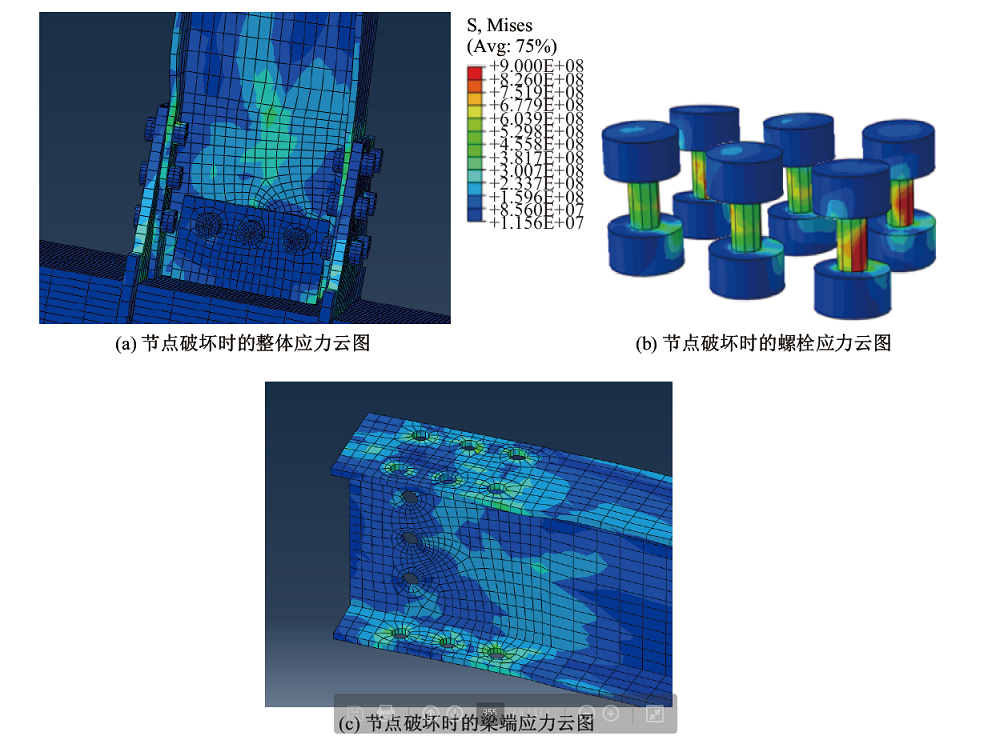

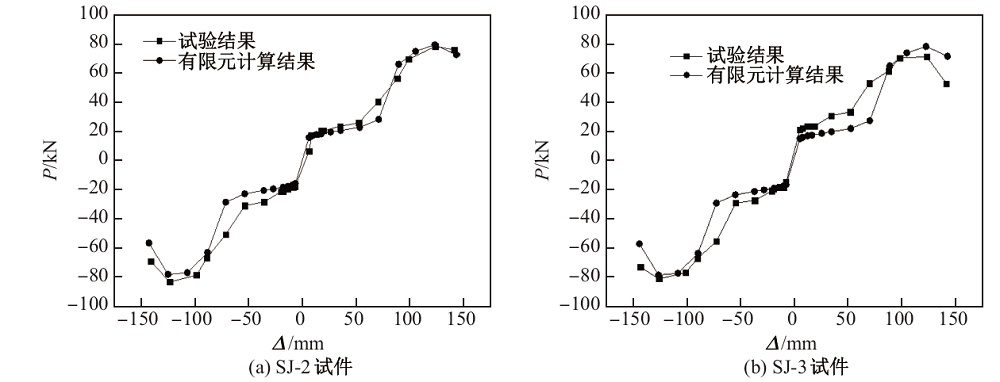

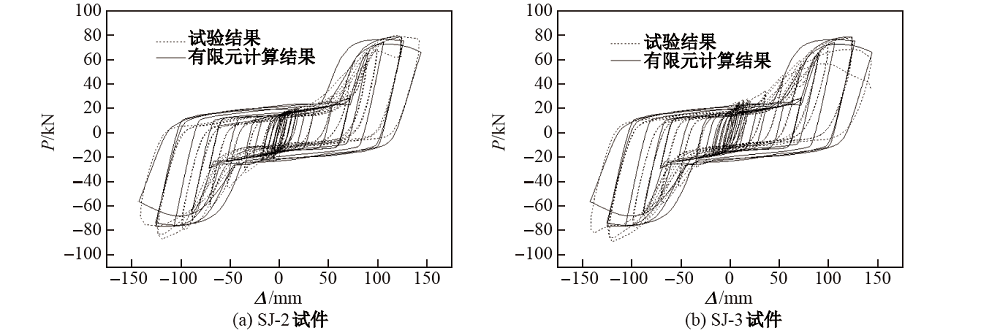

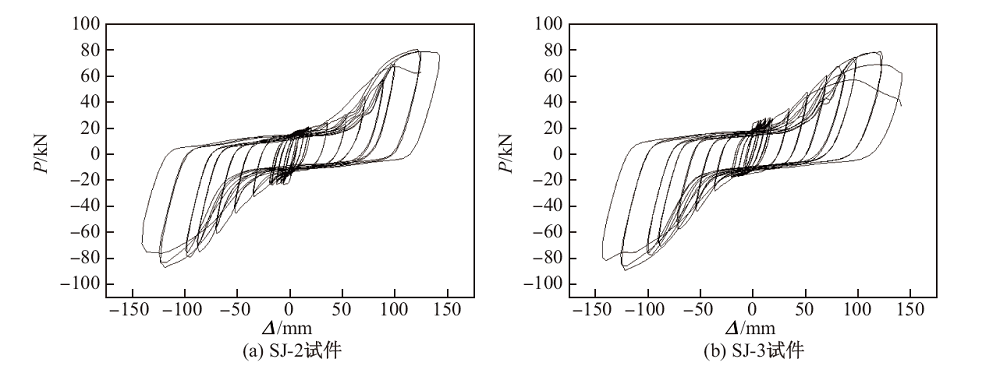

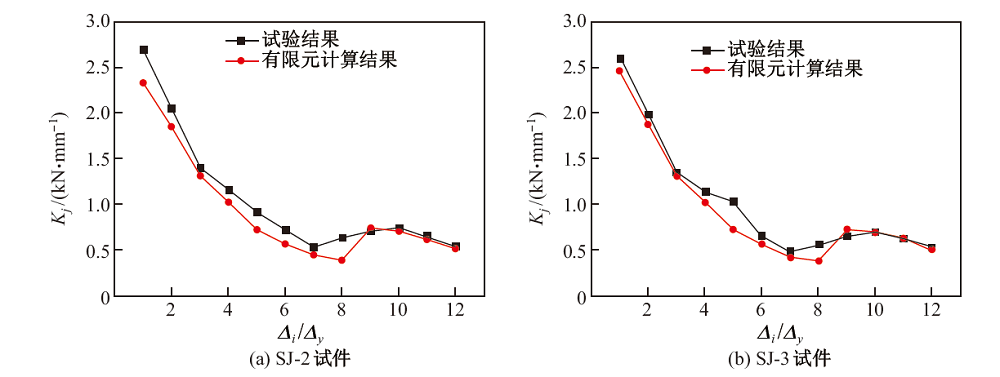

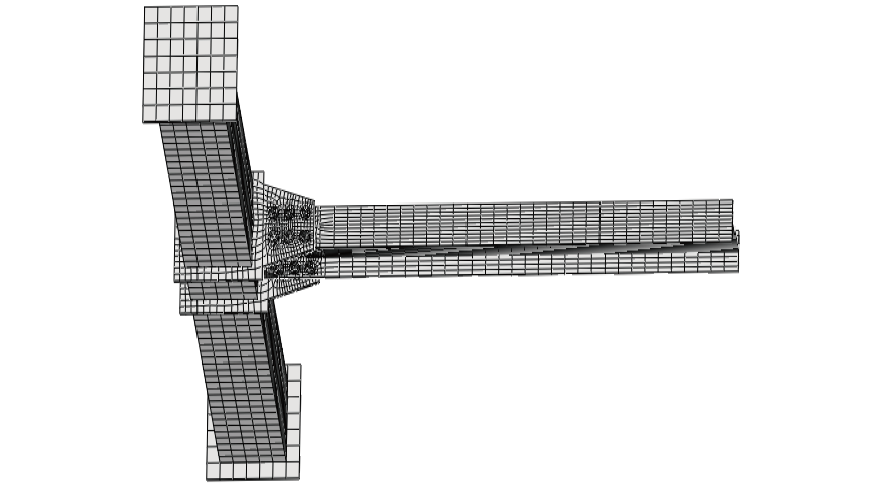

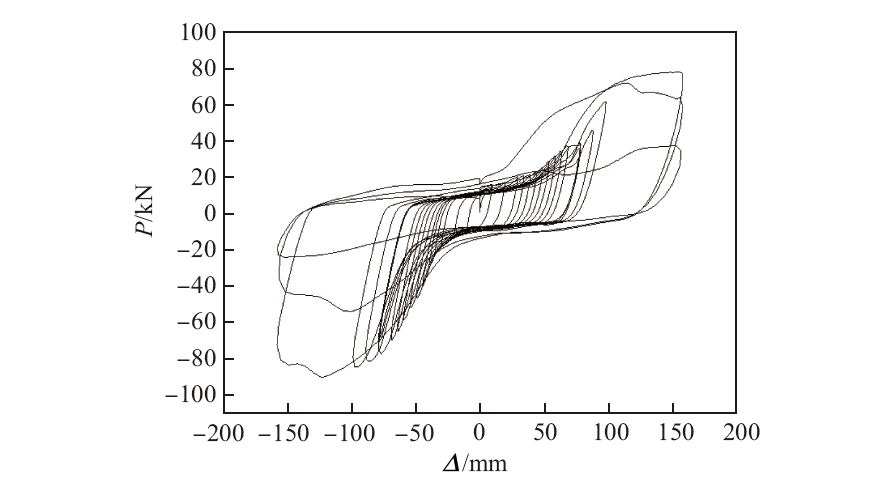

分别按照中、美两国规范中不同的加载制度, 对 3 根方钢管混凝土柱-H 型钢梁全螺栓连接节点试件进行反复低周荷载试验. 结果表明, 此类节点的滞回曲线、骨架曲线与焊接节点相比具有明显的特征. 由于隔板翼缘相对滑移, 滞回曲线均出现水平段, 呈"捏缩形状". 对比试验结果也发现: 在全螺栓连接节点的试验中, 由于滑移段的存在, 按照位移角控制的加载制度的试验数据更为完整, 优于按"两阶段"控制的加载制度. 利用 ABAQUS 有限元软件, 对反复低周荷载作用下方钢管混凝土与钢梁全螺栓连接节点的受力性能进行计算与分析, 验证了试验结果的准确性, 并通过刚度退化、延性指标及总承载力退化系数对节点抗震性能进行了分析. 同时也提出了因存在隔板翼缘相对滑移, 在评判过程中对这些指标加以修正的建议.

关键词: 方钢管混凝土柱, 全螺栓连接, 有限元计算, 反复低周荷载, 抗震性能分析

Abstract:

Three concrete-filled square steel tubular column and H-type steel beam for two-sided all-bolted connections were fabricated according to the specifications of two countries, China and America. Repeated low cyclic loading tests were conducted on different loading systems. The results showed that the hysteretic loop curves and skeleton curves of the welded joint had obvious characteristics because of the relative slip in the clapboard flange, and the hysteretic loop curve in the horizontal section showed a pinch shrink shape. The test results indicated that the loading system controlled by the displacement angle was more complete and better than the loading system controlled by "two stages" owing to the existence of the slip section in tests on all the bolted joints. At the same time, using the finite element software, ABAQUS, for repeated low cyclic loads on the steel beam and concrete-filled steel tube, the stress performance of the bolt connection node was calculated and analysed. These results verified the accuracy of the test results. Further, the stiffness degradation, ductility performance, and overall strength degradation coefficient of the seismic performance of the nodes were analysed. In addition, because of the existence of the relative slip in the plate flange, a revised evaluation of these indicators was proposed.

Key words: concrete-filled square steel tubular column, bolted connection, finite element calculation, repeated low cyclic load, analysis of seismic performance

中图分类号:

TU398

陈靖远, 杨锋, 丁鑫标, 王培成. 方钢管混凝土柱-H 型钢梁全螺栓连接节点抗震试验及有限元分析[J]. 上海大学学报(自然科学版), 2021, 27(2): 347-359.

CHEN Jingyuan, YANG Feng, DING Xinbiao, WANG Peicheng. Seismic test and finite element analysis of bolted joints connecting concrete-filled square steel tubular column and H-type steel beam[J]. Journal of Shanghai University（Natural Science Edition）, 2021, 27(2): 347-359.

图/表 17

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

表1

表2

图15

参考文献 14

[1]	Kang C H, Shin K J, Oh Y S, et al. Hysteresis behavior of CFT column to H-beam connections with external T-stiffeners and penetrated elements[J]. Engineering Structures, 2001,23(9):1194-1201.
[2]	Ricles J M, Peng S W, Lu L W. Seismic behavior of composite concrete filled steel tube column-wide flange beam moment connections[J]. Journal of Structural Engineering, 2004,130(2):223-232.
[3]	Fukumoto T, Morita K. Elasto plastic behavior of panel zone in steel beam-to-concrete filled steel tube column moment connections[J]. Journal of Structural Engineering, 2005,131(7):1841-1853.
[4]	罗松. 方钢管混凝土柱-H 型钢梁全螺栓连接隔板贯通节点抗震性能研究[D]. 天津: 天津大学, 2013.
	Luo S. Research on seismic behavior of the fully-bolted diaphragm-through connection between rectangular concrete filled tube column and H shaped steel beam[D]. Tianjin: Tianjin University, 2013.
[5]	邓芃, 王来, 李申琰, 等. 方钢管混凝土柱与钢梁全螺栓节点抗震性能试验研究[J]. 建筑结构学报, 2016,37(7):19-28.
	Deng P, Wang L, Li S Y, et al. Experimental study on seismic performance of concrete-filled square steel tubular column and steel beam with field-bolted connections[J]. Journal of Building Structures, 2016,37(7):19-28.
[6]	李自林, 丁宏毅, 薛江. 全螺栓连接隔板贯通的方钢管混凝土柱-钢梁节点抗震性能试验[J]. 土木工程学报, 2014(7):63-69.
	Li Z L, Ding H Y, Xue J. Experimental study on seismic performance of all-bolt connected and diaphragm-through joint between concrete-filled square steel tubular column and steel beam[J]. China Civil Engineering Journal, 2014(7):63-69.
[7]	李自林, 丁宏毅, 张聪. 方钢管混凝土柱-H 型钢梁全螺栓隔板贯通式节点弯矩-曲率滞回模型研究[J]. 建筑结构, 2015(11):51-54.
	Li Z L, Ding H Y, Zhang C. Research on hysteretic model of moment-curvature for all-bolts and clapboard-through joint connecting concrete-filled square steel tubular column and H-shaped steel beam[J]. Building Structure, 2015(11):51-54.
[8]	白晶晶. 方钢管混凝土柱-H 型钢梁隔板贯通节点抗震性能研究[D]. 天津: 天津大学, 2011.
	Bai J J. Research on seismic behaviour of the fully-bolted diaphragm-through connection between rectangular concrete filled tube column and H-shaped steel[D]. Tianjin: Tianjin University, 2011.
[9]	陈志华, 秦颖, 白晶晶. 矩形钢管混凝土柱-H 型钢梁节点试验方案设计[C]// 全国现代结构工程学术研讨会. 2011.
	Chen Z H, Qin Y, Bai J J. Design of pipe concrete column-H type steel beam joint test scheme[C]// National Symposium on Modern Structural Engineering Technology. 2011.
[10]	Luo S, Wang X D, Wang X, et al. Analysis on the seismic performance of the fully bolted diaphragm-through connections to RCFST[J]. Advances in Structural Engineering, 2015,18(7):975-986.
[11]	张文元, 扈玥昕. 钢结构中高强螺栓连接的数值模拟方法[J]. 哈尔滨工业大学学报, 2014(12):8-14.
	Zhang W Y, Hu Y X. Numerical simulation method for high-strength bolt connections in steel structures[J]. Journal of Harbin Institute of Technology, 2014(12):8-14.
[12]	王萌, 石永久, 王元清. 高强度螺栓连接抗剪性能研究[J]. 建筑结构学报, 2011,32(3):27-34.
	Wang M, Shi Y J, Wang Y Q. Analysis on shear behavior of high-strength bolts connection[J]. Journal of Building Structures, 2011,32(3):27-34.
[13]	韩林海. 钢管混凝土结构: 理论与实践 [M]. 第 2 版. 北京: 科学出版社, 2007: 72-73.
	Han L H. Conrete filled steel tubular structure: theory and practice [M]. 2nd Ed. Beijing: Science Press, 2007: 72-73.
[14]	同济大学. CECS 159: 2004 矩形钢管混凝土结构技术规程[S]. 北京: 中国计划出版社, 2004.
	Tongji University. CECS 159: 2004 Technical specification for structures with concrete-filled rectangular steel tube members[S]. Beijing: China Planning Press, 2004.
