爆炸驱动燃料云团界面不稳定性发展及颗粒分散过程

doi:10.12066/j.issn.1007-2861.2094

摘要/Abstract

摘要：

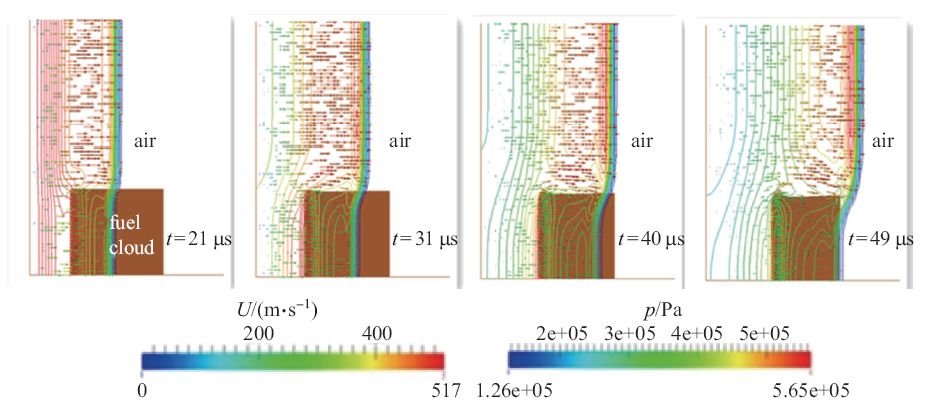

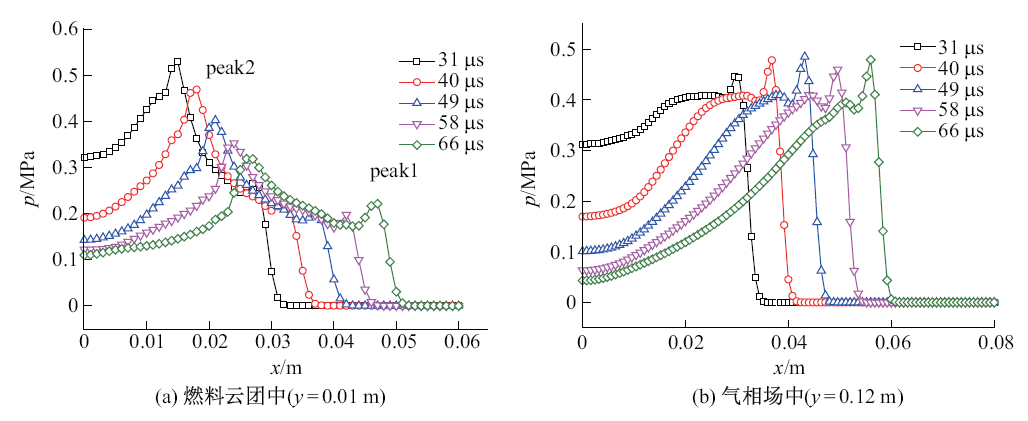

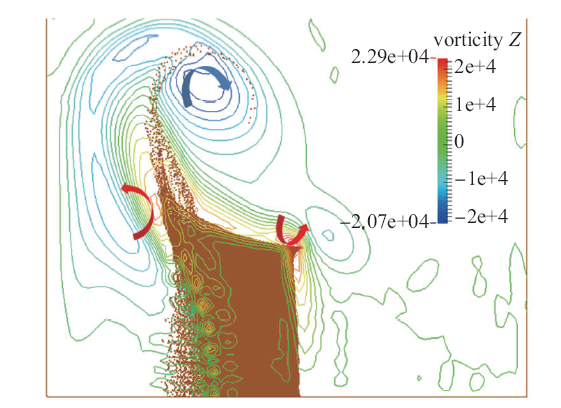

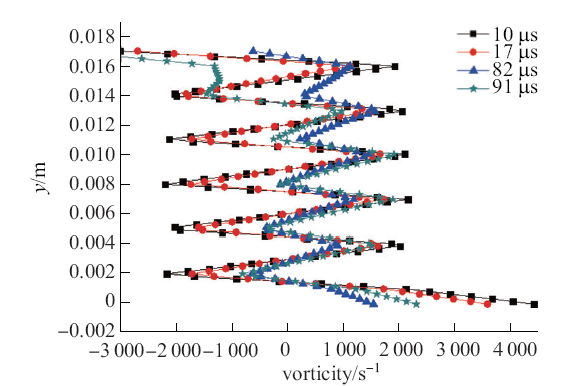

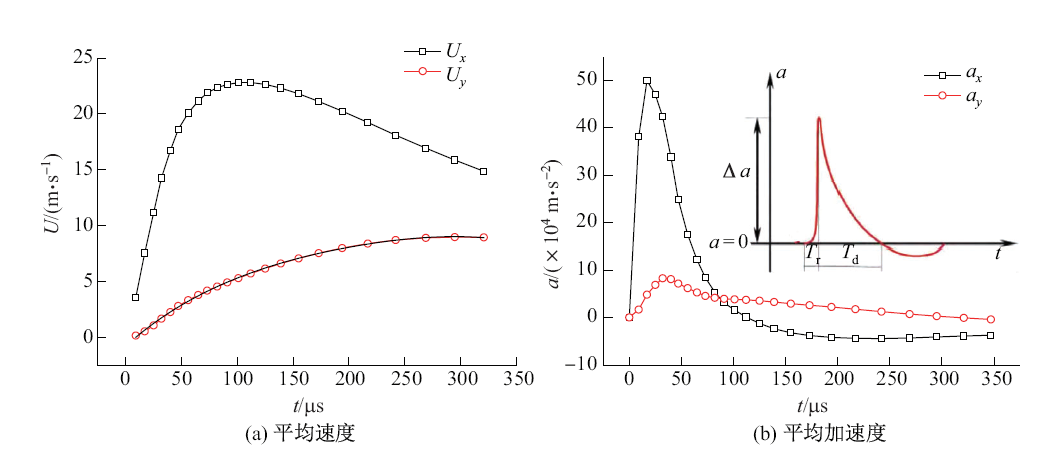

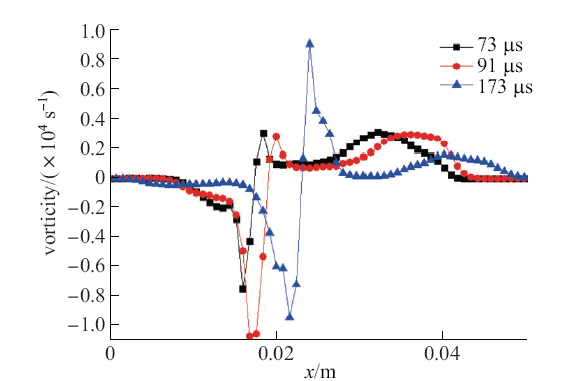

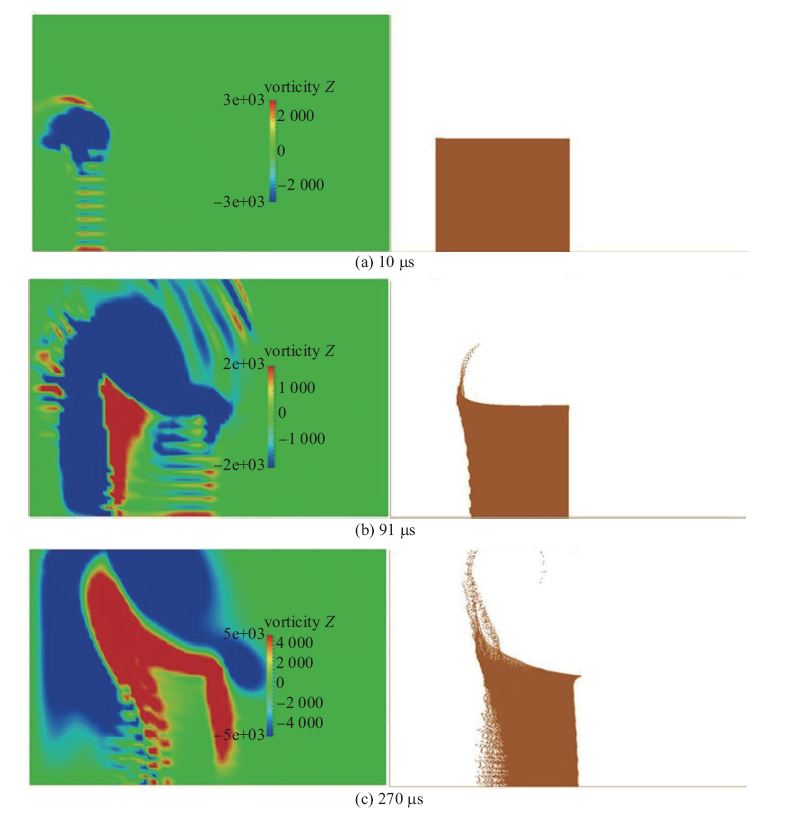

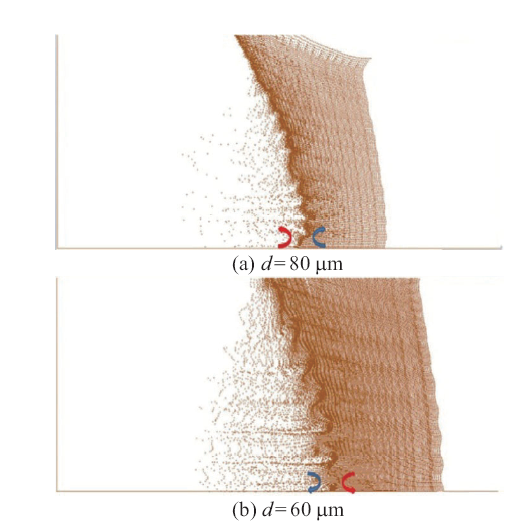

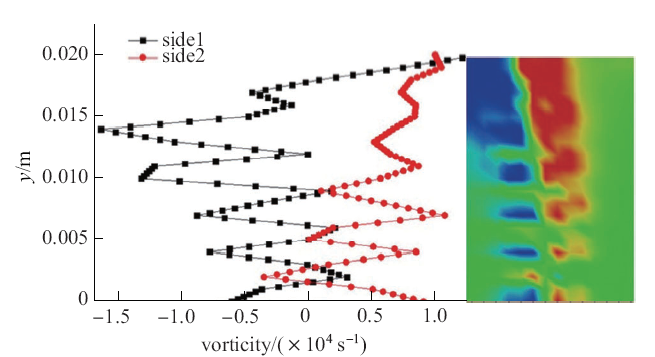

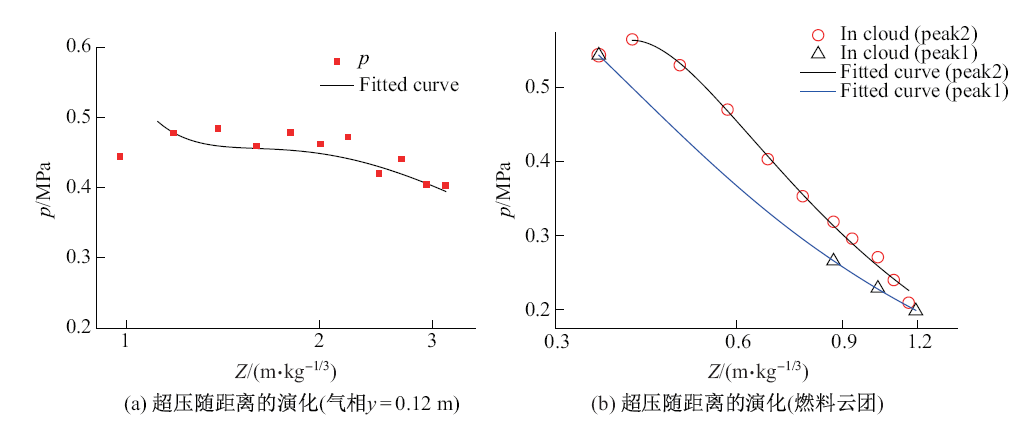

在工业爆炸灾害和国防军事领域, 气体和燃料颗粒组成的燃料云团的非定常两相燃烧爆轰会对周围介质产生毁伤破坏效应, 该效应与燃料运动特性和空间质量分布密切相关. 建立了二维气液两相流模型, 基于有限体积方法、利用二阶精度的守恒型单调迎风格式 (monotonic upwind scheme for conservation laws, MUSCL), 以正庚烷燃料为对象, 对爆炸驱动下冲击波在两相介质中传播、燃料云团界面不稳定性演化、冲击波诱导旋涡机制, 以及颗粒初始运动性质开展数值研究. 可以得出, 波与燃料颗粒相互作用是一个动量、能量传递的过程. 当冲击波扫过两相介质, 压力发生衰减, 与比例距离 Z 满足幂数律关系. 同时, 波在云团中发生反射和折射, 两相介质中波阵面发生弯曲. 燃料介质获得和波同向的平动速度. 如初始粒径为 60 $\mu $m 的燃料云团, 在 112 $\mu $s 时间内, 云团扩散的径向速度提高到 22.8 m/s. 此外, 当波作用于燃料云团, 气液界面的流场发生扰动. 当波扫过燃料云团外缘, 会产生大尺度结构的旋涡, 增强了原来未受扰动流场的湍流度. 同时, 界面附近流场的密度和压力梯度诱导出涡量, Richtmyer-Meshkov不稳定性 (Richtmyer-Meshkov instability, RMI) 的发展使得界面生成一系列小尺度涡. 大、小尺度的涡促进了湍流的发展, 加剧了燃料云团的运动和颗粒的分散, 为云团的膨胀及后续两相爆轰的发生提供重要条件.

关键词: 爆炸驱动, 冲击波, 燃料云团, 冲击波诱导旋涡, 颗粒分散

Abstract:

In industrial explosion disaster area and the military area, the unsteady two- phase combustion detonation of the fuel cloud composed of gas and fuel particles can have a destructive effect on the surrounding medium, which is closely related to fuel motion characteristics and mass spatial distribution. In this paper, a two-dimensional gas-liquid (two-phase) flow model is established. Based on the finite volume method and the two-order accuracy monotonic upwind scheme for conservation laws (MUSCL) difference scheme, the numerical study on propagation of the shock waves in a two-phase medium, instability evolution of the fuel cloud interface, the mechanism of shock induced vortices and the initial motion of fuel cloud are conducted based on $n$-heptanes as the fuel. The research results show that the interaction between shock wave and fuel is a transfer process of momentum and energy. When the shock wave sweeps through the two-phase medium, the pressure attenuates and the relation with the proportional distance satisfies the power law. Moreover, the reflected wave and refraction wave are generated in the cloud and the wave front in the gas-liquid medium is bent. The liquid fuel obtains the same propagation direction of wave. For the initial particle size 60 $\mu $m, the fuel cloud will increase up to 22.8 m/s during the period of 112 μs. In the meantime, when the shock wave acts on the fuel cloud, then the flow field at the gas-liquid interface is disturbed. During the wave passing around the fuel cloud, large-scale vortices will be generated around the outer edge of cloud, which enhances the turbulence intensity of the original undisturbed flow field. Furthermore, the vorticity is induced by the density and pressure gradient of the flow field near the interface, and the development of Richtmyer-Meshkov instability (RMI) makes the interface generate a series of small-scale vortices. Large and small-scale vortices promote the development of turbulence, which also enhances the movement of fuel cloud and the dispersion of particles. It provides important conditions for the expansion of the cloud and subsequent two-phase detonation.

Key words: explosion-driven, shock wave, fuel cloud, shock-induced vortex, particle dispersion

中图分类号:

O359⁺.1

申洋, 丁珏, 翁培奋. 爆炸驱动燃料云团界面不稳定性发展及颗粒分散过程[J]. 上海大学学报(自然科学版), 2020, 26(5): 802-815.

SHEN Yang, DING Jue, WENG Peifen. Interfacial instability and particle dispersion of explosion-driven fuel cloud[J]. Journal of Shanghai University（Natural Science Edition）, 2020, 26(5): 802-815.

图/表 20

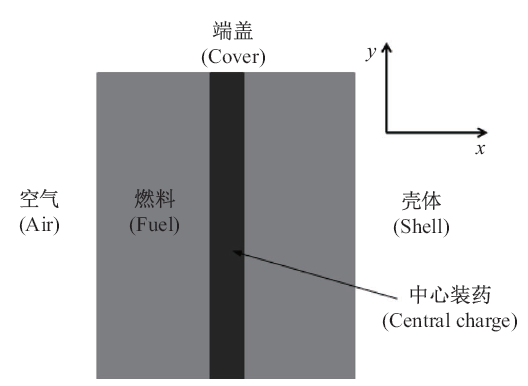

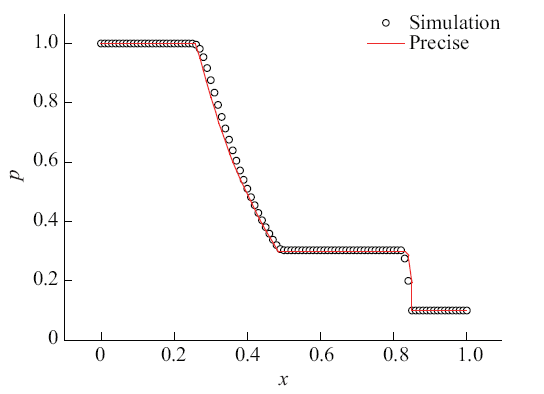

图1

图2

图3

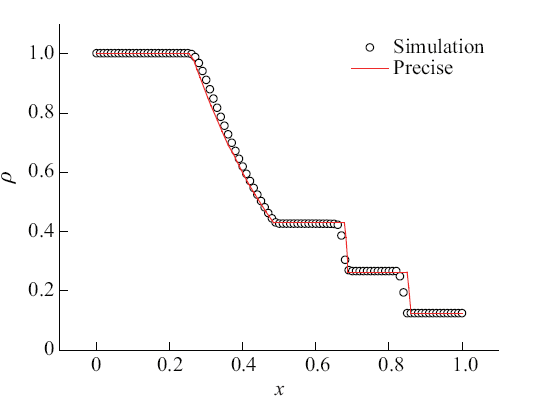

图4

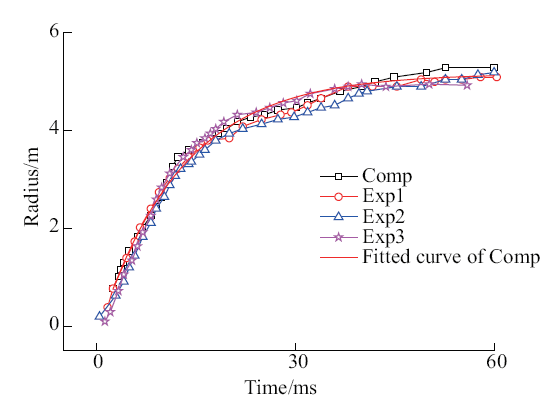

图5

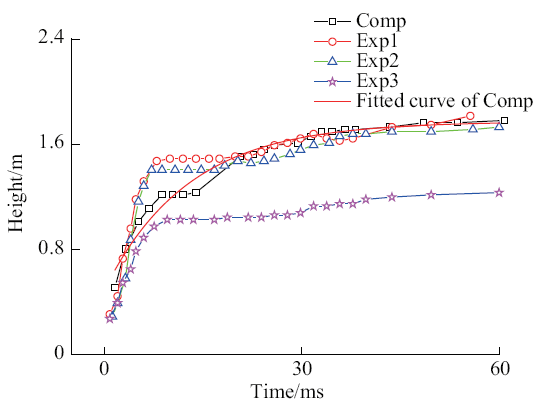

图6

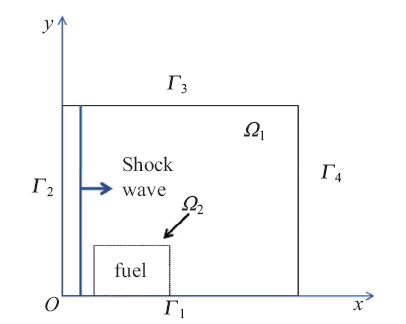

图7

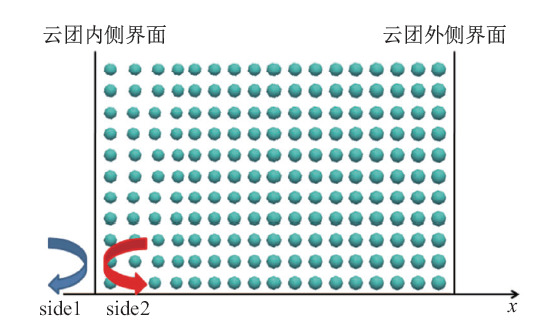

图8

图9

图10

图11

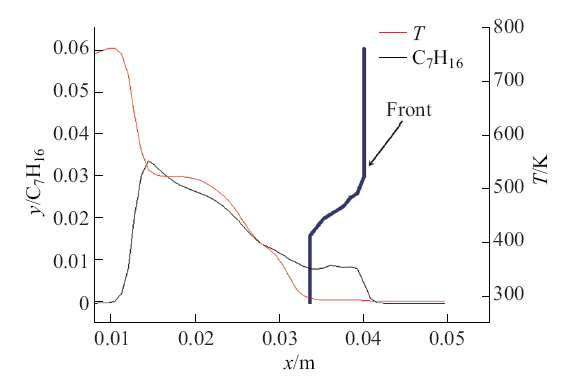

图12

图13

图14

图15

图16

图17

图18

图19

图20

参考文献 22

[1]	许会林. 燃料空气炸药 [M] . 北京: 国防工业出版社, 1980.
[2]	蒋治海, 龙新平, 韩勇, 等. 炸药爆炸驱动壳体破裂及液体喷射过程试验研究[J]. 含能材料, 2011,19(3):321-324.
[3]	徐豫新, 王树山, 韩宝成, 等. 爆炸作用驱动液体抛撒初始阶段数值仿真[J] . 高压物理学报, 2011,25(1):73-78.
[4]	鞠伟, 丁珏, 翁培奋, 等. 燃料空气炸药爆炸抛撒初期燃料和壳体的运动特性[J] . 应用力学学报, 2013,30(6):797-801.
[5]	Ripley R C, Zhang F. Jetting instability mechanisms of particles from explosive dispersal[J]. 2014,500(15):152012.
[6]	Zhou Y. Rayleigh-Taylor and Richtmyer-Meshkov instability induced flow, turbulence, and mixing Ⅰ [J]. Physics Reports, 2017,720/721/722:1-136.
[7]	Frost D, Gregoire Y, Goroshin S, et al. Particle jet formation during explosive dispersal of solid particles[J]. Physics of Fluids, 2012,24(9):091109.
[8]	Rodriguez V, Saurel R, Jourdan G, et al. Solid-particle jet formation under shock-wave acceleration[J]. Physical Review E, 2013,88(6):063011.
[9]	Xue K, Cui H, Du K, et al. The onset of shock-induced particle jetting[J]. Powder Technology, 2018,336:220-229.
[10]	Ripley R C, Donahue L, Horie Y, et al. Cylindrical explosive dispersal of metal particles[C]//APS Shock Compression of Condensed Matter Meeting Abstracts. 2007: 365-368.
[11]	Kobiera A, Szymczyk J, Wolański P, et al. Study of the shock-induced acceleration of hexane droplets[J]. Shock Waves, 2009,18(6):475-485.
[12]	Rodriguez V, Saurel R, Jourdan G, et al. Impulsive dispersion of a granular layer by a weak blast wave[J]. Shock Waves, 2017,27(2):187-198.
[13]	Xue K, Yu Q, Bai C. Dual fragmentation modes of the explosively dispersed granular materials[J]. European Physical Journal E, 2014,37(9):1-12.
[14]	李席, 王伯良, 韩早, 等. 液固复合FAE云雾状态影响因素的试验研究[J]. 爆破器材, 2013(5):23-26.
[15]	李磊, 崔箭, 董玉才, 等. 液体爆炸分散过程中界面破碎的实验研究[J] . 科学通报, 2009,54(12):1693-1700.
[16]	Kandan K, Khaderi S, Wadley H N G, et al. Surface instabilities in shock loaded granular media[J]. Journal of the Mechanics and Physics of Solids, 2017,109:217-240.
[17]	Shi H H, Zhang G, Kai D U, et al. Experimental study on the mechanism of the Richtmyer-Meshkov instability at a gas-liquid interface[J]. Journal of Hydrodynamics, 2009,21(3):423-428. doi: 10.1016/S1001-6058(08)60166-3
[18]	Frost D L, Ornthanalai C, Zarei Z, et al. Particle momentum effects from the detonation of heterogeneous explosives [J]. Journal of Applied Physics, 2007, 101(11): 113529(1-14).
[19]	廖斌, 朱雨建, 杨基明. 冲击作用下液滴在环境液体中的演变过程及主导因素[J]. 中国科学: 物理学力学天文学, 2017,47:094701.
[20]	Toro E F, Riemann solvers and numerical methods for fluid dynamics[M]. Berlin: Springer, 1999.
[21]	薛社生, 刘家骢, 秦承森, 等. 燃料爆炸抛撒成雾的实验与数值研究[J] . 爆炸与冲击, 2001,21(4):272-276.
[22]	贝克 W E. 空中爆炸 [M] . 江科, 译. 北京: 原子能出版社, 1982.
