温度对碳纳米管纤维/环氧树脂界面剪切强度的影响

doi:10.12066/j.issn.1007-2861.1859

Abstract

Abstract:

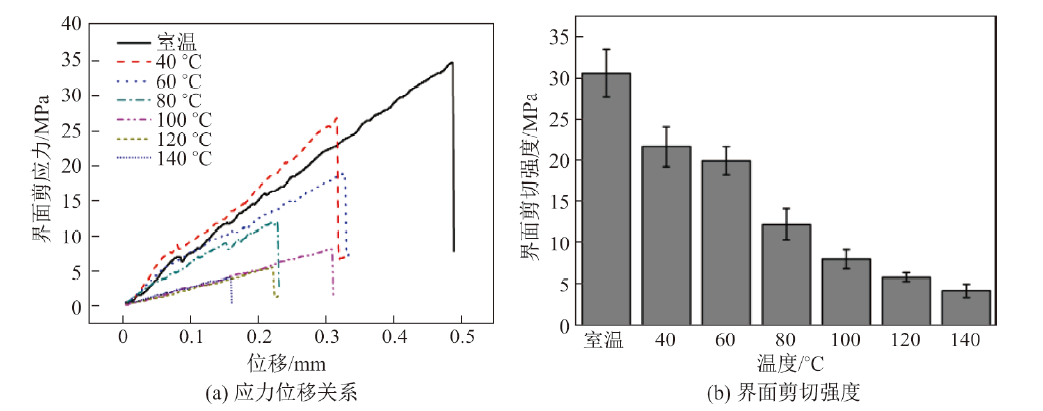

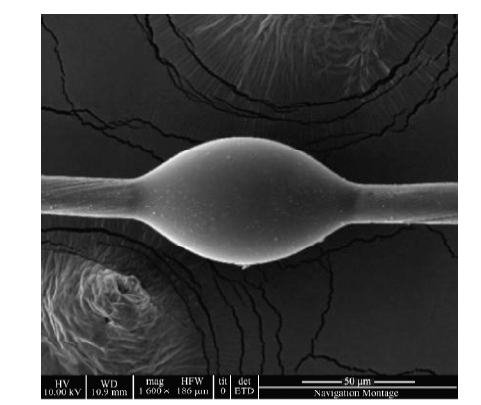

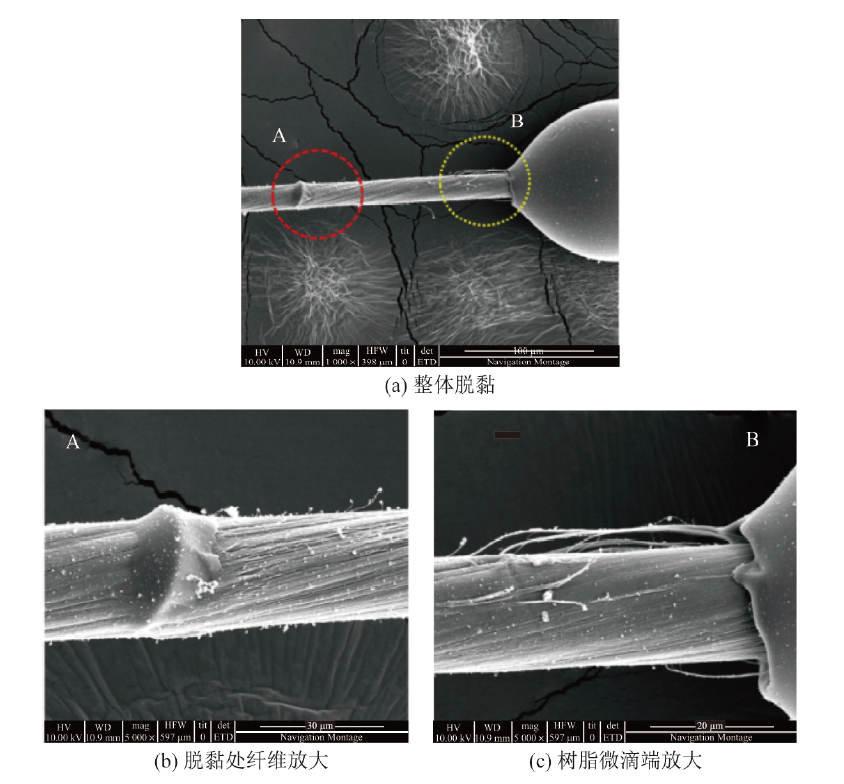

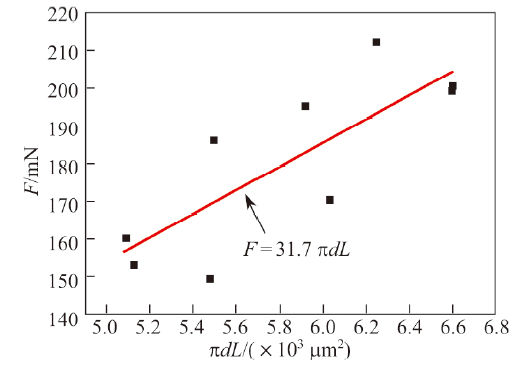

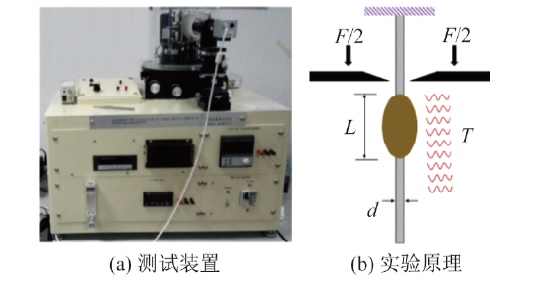

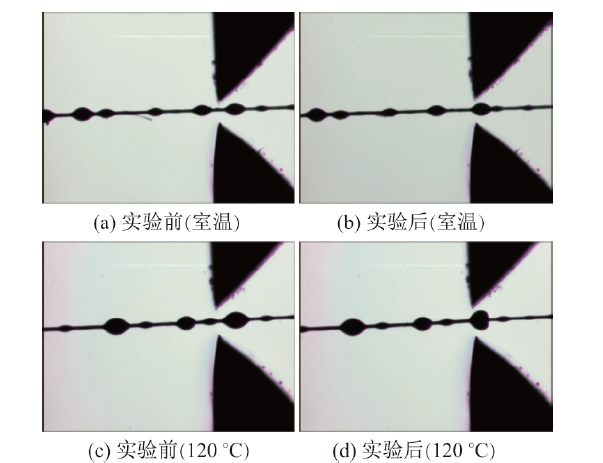

Carbon nanotube (CNT) fibers possess excellent mechanical, electrical and thermal properties, such that they have been considered as ideal reinforcement for future high-performance polymeric composites. This study investigates the temperature effect on the interfacial shear strength between CNT fibers and epoxy resin by performing microdroplet tests, and optical/electrical microscopy analyses. It is found that the interfacial shear strength decreases obviously with increasing ambient temperature. This is mainly because the coefficient of thermal expansion of CNT fibers is much lower than that of the resin so that the fiber/resin interface debonds upon heating. Meanwhile, the resin becomes soft at high temperatures, also degrading the interfacial bonding strength. This study provides guidance for the design of carbon nanotube fibers based composite materials.

Key words: carbon nanotube fibers, epoxy resin, interfacial shear strength, temperature effect

CLC Number:

TB332

MA Qili, ZHANG Cuixia, WANG Han, JIANG Jin, LÜ Weibang. Temperature effect on interfacial shear strength of carbon nanotube fiber/epoxy resin composites[J]. Journal of Shanghai University（Natural Science Edition）, 2018, 24(6): 961-967.

Figures/Tables 7

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

References 15

[1]	Lu J P. Elastic properties of carbon nanotubes and nanoropes[J]. Physical Review Letters, 1997,79(7):1297-1300.
[2]	Ruoff R S, Qian D, Liu W K. Mechanical properties of carbon nanotubes: theoretical predictions and experimental measurements[J]. Comptes Rendus Physique, 2003,4(9):993-1008.
[3]	Baughman R H, Zakhidov A A, Wa D H. Carbon nanotubes: the route toward applica-tions[J]. Science, 2002,297(5582):787-792. doi: 10.1126/science.1060928 pmid: 12161643
[4]	朱钟鸣, 孙丽娜, 郭唐华, 等. 聚合物／碳纳米管纳米复合材料研究进展[J]. 材料科学与工程学报, 2013,31(2):310-316.
[5]	孟凡成, 周振平, 李清文. 碳纳米管纤维研究进展[J]. 材料导报, 2010,24(9):38-43.
[6]	Liu L Q, Ma W J, Zhang Z. Macroscopic carbon nanotube assemblies: preparation, properties, and potential applications[J]. Small, 2011,7(11):1504-1520.
[7]	Lu W B, Zu M, Byun J H, et al. State of the art of carbon nanotube fibers: opportunities and challenges[J]. Advanced Materials, 2012,24(14):1805-1833. doi: 10.1002/adma.201104672 pmid: 22438092
[8]	Zu M, Li Q W, Zhu Y T, et al. The effective interfacial shear strength of carbon nanotube fibers in an epoxy matrix characterized by a microdroplet test[J]. Carbon, 2012,50(3):1271-1279.
[9]	Deng F, Lu W B, Zhao H B, et al. The properties of dry-spun carbon nanotube fibers and their interfacial shear strength in an epoxy composite[J]. Carbon, 2011,49(5):1752-1757.
[10]	Liu Y N, Li M, Gu Y Z, et al. The interfacial strength and fracture characteristics of ethanol and polymer modified carbon nanotube fibers in their epoxy composites[J]. Carbon, 2013,52(5):550-558.
[11]	Lei C S, Zhao J N, Zou J Y, et al. Assembly dependent interfacial property of carbon nanotube fibers with epoxy and its enhancement via generalized surface sizing[J]. Advance Engineering Materials, 2016,18(5):839-845.
[12]	李兆敏, 王聪, 韩克清, 等. 表面官能团化多壁碳纳米管/环氧树脂复合材料的制备及性能[J]. 材料科学与工程学报, 2007,25(3):395-398.
[13]	Jiang H Q, Liu B, Huang Y G, et al. Thermal expansion of single wall carbon nanotubes[J]. Journal of Engineering Materials and Technology, 2004,126(3):265-270.
[14]	Maniwa Y, Fujiwara R, Kira H, et al. Thermal expansion of single-walled carbon nanotube (SWNT) bundles: X-ray diffraction studies[J]. Physical Review B, 2001,64(24):241402.
[15]	Gao Y, Li J Z, Liu L Q, et al. Axial compression of hierarchically structured carbon nanotube fiber embedded in epoxy[J]. Advanced Functional Materials, 2010,20(21):3797-3803.

Temperature effect on interfacial shear strength of carbon nanotube fiber/epoxy resin composites

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 7

References 15

Related Articles 4

Recommended Articles

Metrics

Comments

[1]	DUAN Jia-zhen1,2, YU Ruo-bing1,2, HU Lin1,2, JIAO Zheng3. Epoxy resin modified by novel polyphenylene ether [J]. Journal of Shanghai University（Natural Science Edition）, 2015, 21(1): 38-45.
[2]	HU Lin-1, YU Ruo-Bing-1, DUAN Jia-Zhen-1, JIAO Zheng-2. Synthesis and properties of phosphorus-nitrogen containing phenolic resins [J]. Journal of Shanghai University（Natural Science Edition）, 2015, 21(03): 376-383.
[3]	XU Hong, ZHANG Bao-hua, TENG Cui-qing, YU Mu-huo. Synthesis and Characterization of High Molecular Weight Poly L-lactic Acid [J]. Journal of Shanghai University（Natural Science Edition）, 2013, 19(4): 336-339.
[4]	ZHANG Bao-Hua-1, 2, WENG Yan-Qing-1, CHEN Bin-1, ZHANG Yu-Ying-1. Preparation of Imidazole Amidate Derivatives and Their Properties [J]. Journal of Shanghai University（Natural Science Edition）, 2010, 16(5): 517-521.
